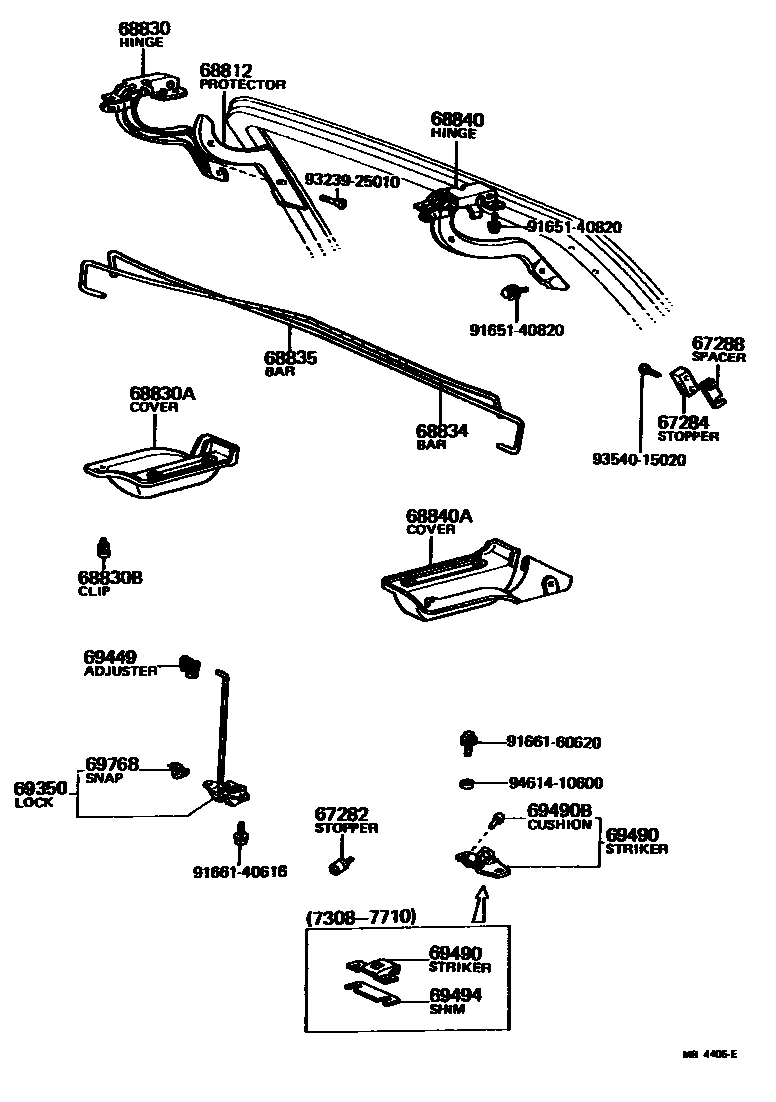

BACK DOOR LOCK & HANDLE

67282STOPPER, BACK DOOR, NO.1

main67281-91256×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67284STOPPER, BACK DOOR, NO.2

main67283-21010×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67288SPACER, BACK DOOR SIDE STOPPER, UPPER

main67284-91603×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68812PROTECTOR, BACK DOOR HINGE ARM

main68813-21020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

RH.

main68813-21020-03iRT119..3HC;RT105..3FC..4D197509-197701

RH.GRAY,GRAY

main68813-21020-05iRT119..3HC;RT105..3FC..4D197509-197701

RH.BEIGE,BEIGE

main68813-21020-13iRT119..3HC197701-197808

RH.GRAY,GRAY

main68813-21020-15iRT119..3HC197701-197808

RH.BEIGE,BEIGE

main68814-21020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

LH.

main68814-21020-03iRT119..3HC;RT105..3FC..4D197509-197701

LH.GRAY,GRAY

main68814-21020-05iRT119..3HC;RT105..3FC..4D197509-197701

LH.BEIGE,BEIGE

main68814-21020-13iRT119..3HC197701-197808

LH.GRAY,GRAY

main68814-21020-15iRT119..3HC197701-197808

LH.BEIGE,BEIGE

main68814-21030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197403-197509

LH.FOR W/REAR WIPER

main68814-21030-03iRT119..3HC;RT105..3FC..4D197509-197701

LH.FOR W/REAR WIPER,GRAY,GRAY

main68814-21030-05iRT119..3HC;RT105..3FC..4D197509-197701

LH.FOR W/REAR WIPER,BROWN,BEIGE

main68814-21030-13iRT119..3HC197701-197808

LH.FOR W/REAR WIPER,GRAY,GRAY

main68814-21030-15iRT119..3HC197701-197808

LH.FOR W/REAR WIPER,BEIGE,BEIGE

68830HINGE ASSY, BACK DOOR, RH

main68810-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68830ACOVER, BACK DOOR HINGE, RH

main68841-21020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main68841-21020-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main68841-21020-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main68841-21020-13iRT119..3HC197701-197808

GRAY,GRAY

main68841-21020-15iRT119..3HC197701-197808

BEIGE,BEIGE

68830BCLIP(FOR BACK DOOR HINGE COVER SET)

main90467-08114-11×8iRT119..3HC197701-197808

BLACK,BLACK

main90467-08114-13×8iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

GRAY,GRAY

main90467-08114-25×8iRT119..3HC197701-197808

BEIGE,BEIGE

main90467-08114-53×8iRT119..3HC197701-197808

GRAY,GRAY

68834BAR, BACK DOOR TORSION, RH

main68807-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197611

main68807-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197403-197611

FOR W/REAR WIPER

main68833-21010iRT119..3HC197611-197808

68835BAR, BACK DOOR TORSION, LH

main68834-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68834-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197403-197611

FOR W/REAR WIPER

68840HINGE ASSY, BACK DOOR, LH

main68820-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68820-21040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197403-197808

FOR W/REAR WIPER

68840ACOVER, BACK DOOR HINGE, LH

main68842-21020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main68842-21020-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main68842-21020-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main68842-21020-13iRT119..3HC197701-197808

GRAY,GRAY

main68842-21020-15iRT119..3HC197701-197808

BEIGE,BEIGE

69350LOCK ASSY, BACK DOOR

main69350-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197710

main69350-21020iRT119..3HC197710-197808

69449ADJUSTER, BACK DOOR LOCK CONTROL LINK

main64949-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

69490STRIKER ASSY, BACK DOOR LOCK

main69430-15010iRT119..3HC197710-197808

main69451-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197710

69490BCUSHION(FOR BACK DOOR LOCK STRIKER)

main90541-06002iRT119..3HC197710-197808

69494SHIM, BACK DOOR LOCK STRIKER

main69469-91256×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197710

T=1.0

main69469-91257×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197710

T=2.0

69768SNAP, BACK DOOR LOCK CONTROL LINK

main69768-21010iRT119..3HC197708-197808

9165140820

main91651-40820

9166140616

main91661-40616

9166160620

main91661-60620

9323925010

main93239-25010

9354015020

main93540-15020

9461410600

main94614-10600

23 parts on this diagram · 1 diagram in section
