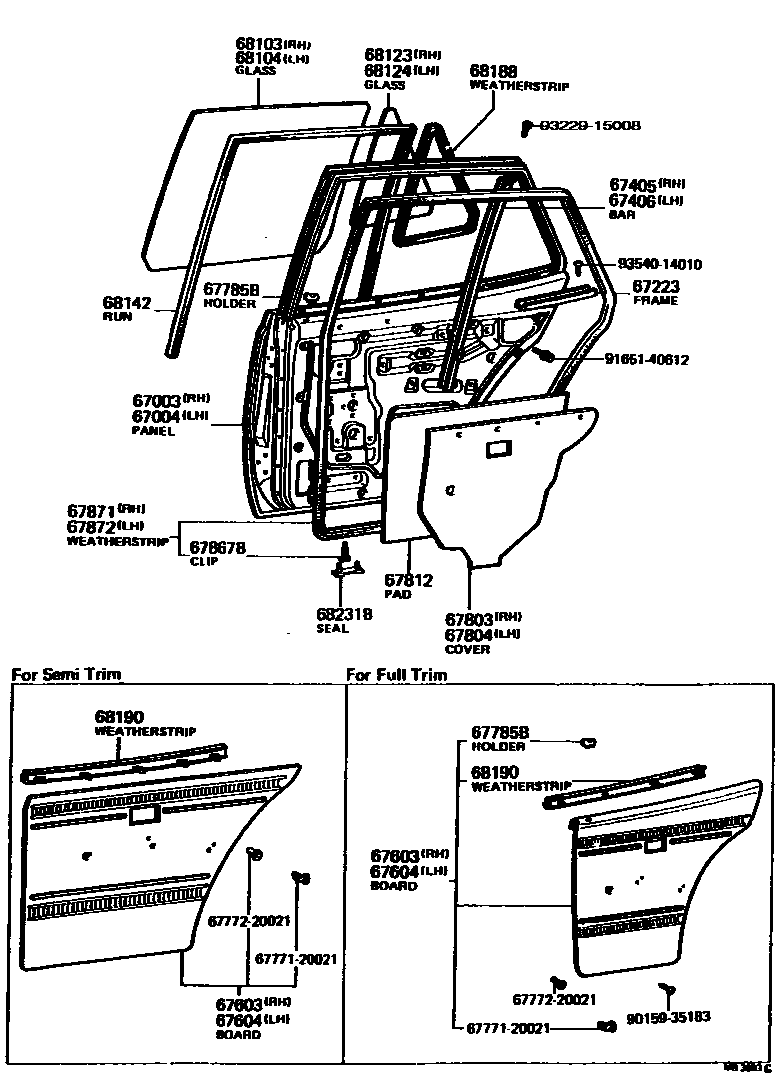

REAR DOOR PANEL & GLASS

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

main67003-20111iRT119..3HC;RT105..3FC..4D197511-197808

main67003-21040iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197504

main67003-21041iRT105..3FC..4D197504-197512

main67003-21042iRT119..3HC;RT105..3FC..4D197512-197808

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

main67004-20111iRT119..3HC;RT105..3FC..4D197511-197808

main67004-21040iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197504

main67004-21041iRT105..3FC..4D197504-197512

main67004-21042iRT119..3HC;RT105..3FC..4D197512-197808

67223FRAME, REAR DOOR QUARTER WINDOW, LOWER

main67223-20030×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67405-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67405-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67406-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67406-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-20212-01iRT119..3HC197701-197808

BLACK,BLACK

main67630-20212-03iRT119..3HC197701-197808

GRAY,GRAY

main67630-20212-05iRT119..3HC197701-197808

BEIGE,BEIGE

main67630-20240-01iRT118..4F;RT104..3FC..STD197308-197408

BLACK,BLACK

main67630-20240-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67630-20240-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67630-20240-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main67630-20310-01iRT105..3FC..4D197408-197511

BLACK,BLACK

main67630-20310-05iRT105..3FC..4D197408-197511

BEIGE,BEIGE

main67630-20310-06iRT105..3FC..4D197408-197511

OLIVE-BROWN,BROWN

main67630-20311-01iRT119..3HC;RT105..3FC..4D197511-197701

BLACK,BLACK

main67630-20311-05iRT119..3HC;RT105..3FC..4D197511-197701

BEIGE,BEIGE

main67630-20311-06iRT119..3HC;RT105..3FC..4D197511-197701

OLIVE-BROWN,BROWN

main67630-20350-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main67630-20350-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main67630-20350-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main67630-20360-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main67630-20360-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-20212-01iRT119..3HC197701-197808

BLACK,BLACK

main67640-20212-03iRT119..3HC197701-197808

GRAY,GRAY

main67640-20212-05iRT119..3HC197701-197808

BEIGE,BEIGE

main67640-20240-01iRT118..4F;RT104..3FC..STD197308-197408

BLACK,BLACK

main67640-20240-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67640-20240-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67640-20240-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main67640-20310-01iRT105..3FC..4D197408-197511

BLACK,BLACK

main67640-20310-05iRT105..3FC..4D197408-197511

BEIGE,BEIGE

main67640-20310-06iRT105..3FC..4D197408-197511

OLIVE-BROWN,BROWN

main67640-20311-01iRT119..3HC;RT105..3FC..4D197511-197701

BLACK,BLACK

main67640-20311-05iRT119..3HC;RT105..3FC..4D197511-197701

BEIGE,BEIGE

main67640-20311-06iRT119..3HC;RT105..3FC..4D197511-197701

OLIVE-BROWN,BROWN

main67640-20350-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main67640-20350-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main67640-20350-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main67640-20360-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main67640-20360-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

67785BHOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR)

main67785-20010×2iRT118..4F;RT104..3FC..STD197308-197408

HOLE SIZE 10X22 SEMI TRIM

main67785-22010×2iRT105..3FC..4D197408-197512

FULL TRIM

main69751-20040×2iRT119..3HC;RT105..3FC..4D197512-197808

FULL TRIM

main69751-20050×2iRT118..4F;RT104..3FC..STD197308-197408

HOLE SIZE 13X25 SEMI TRIM

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-20070iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197507

main67841-20100iRT119..3HC;RT105..3FC..4D197507-197607

main67841-20101iRT119..3HC197607-197808

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-20070iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197507

main67841-20100iRT119..3HC;RT105..3FC..4D197507-197607

main67841-20101iRT119..3HC197607-197808

67812PAD, REAR DOOR SILENCER

main67812-20050×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12020×44iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67872WEATHERSTRIP, REAR DOOR, LH

main67872-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-20120iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

main68113-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

main68114-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

68123GLASS, REAR DOOR WINDOW, RH

main68123-20160iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

main68123-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

68124GLASS, REAR DOOR WINDOW, LH

main68124-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

main68124-21020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=4.0

68142RUN, REAR DOOR GLASS

main68142-20030×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

RH.

main68188-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

RH.

main68189-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

LH.

main68189-21010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

LH.

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-20070iRT119..3HC;RT105..3FC..4D197408-197808

RH.

main68190-20080×2iRT118..4F;RT104..3FC..STD197308-197408

main68240-20040iRT119..3HC;RT105..3FC..4D197408-197808

LH.

68231BSEAL, REAR DOOR DRAIN HOLE DUST

main68231-30020×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015935183

main90159-35183

9165140612

main91651-40612

9322915008

main93229-15008

9354014010

main93540-14010

28 parts on this diagram · 1 diagram in section
