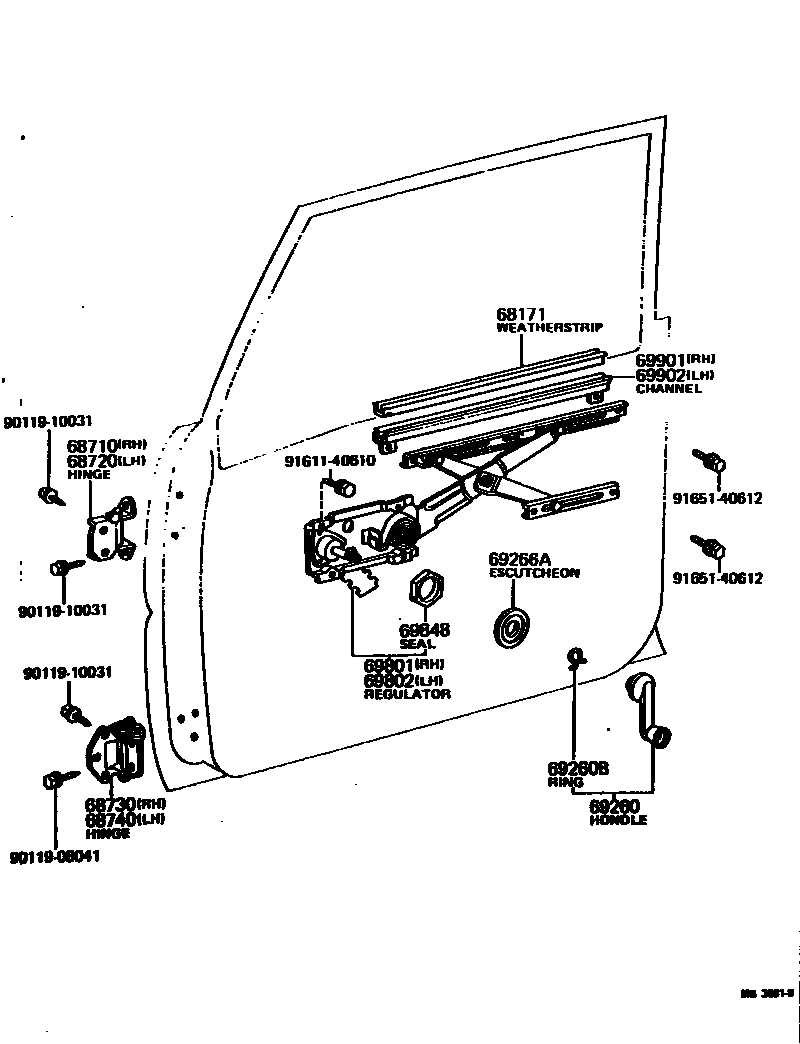

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68710-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68720-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197505

main68730-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68730-30050iRT119..3HC;RT105..3FC..4D197505-197808

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-20050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197505

main68740-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68740-30030iRT119..3HC;RT105..3FC..4D197505-197808

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-12010-01×2iRT119..3HC;RT105..3FC..4D197509-197808

BLACK,BLACK

main69260-12010-05iRT119..3HC197701-197808

BEIGE,BEIGE

main69260-12010-06×2iRT119..3HC;RT105..3FC..4D197509-197701

BROWN,BROWN

main69260-14010×2iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iRT119..3HC197701-197808

main90520-01274×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69266-22010×2iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main69266-22010-01×2iRT119..3HC;RT105..3FC..4D197602-197808

BLACK,BLACK

main69266-22010-05×2iRT119..3HC197701-197808

BEIGE,BEIGE

main69266-22010-06×2iRT119..3HC;RT105..3FC..4D197602-197701

BROWN,BROWN

main69285-22010×2iRT105..3FC..4D197509-197602

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-20060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197410

main69801-20080iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main69801-20081iRT119..3HC;RT105..3FC..4D197509-197808

main69801-95502iRT105..3FC..4D197410-197508

main69801-95503iRT119..3HC;RT105..3FC..4D197508-197808

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-20060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197410

main69802-20080iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main69802-20081iRT119..3HC;RT105..3FC..4D197509-197808

main69802-95502iRT105..3FC..4D197410-197508

main69802-95503iRT119..3HC;RT105..3FC..4D197508-197808

69848SEAL, WINDOW REGULATOR HOLE

main69848-30010×2iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197605

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9011908041

main90119-08041

9011910031

main90119-10031

9161140610

main91611-40610

9165140612

main91651-40612

17 parts on this diagram · 2 diagrams in section
