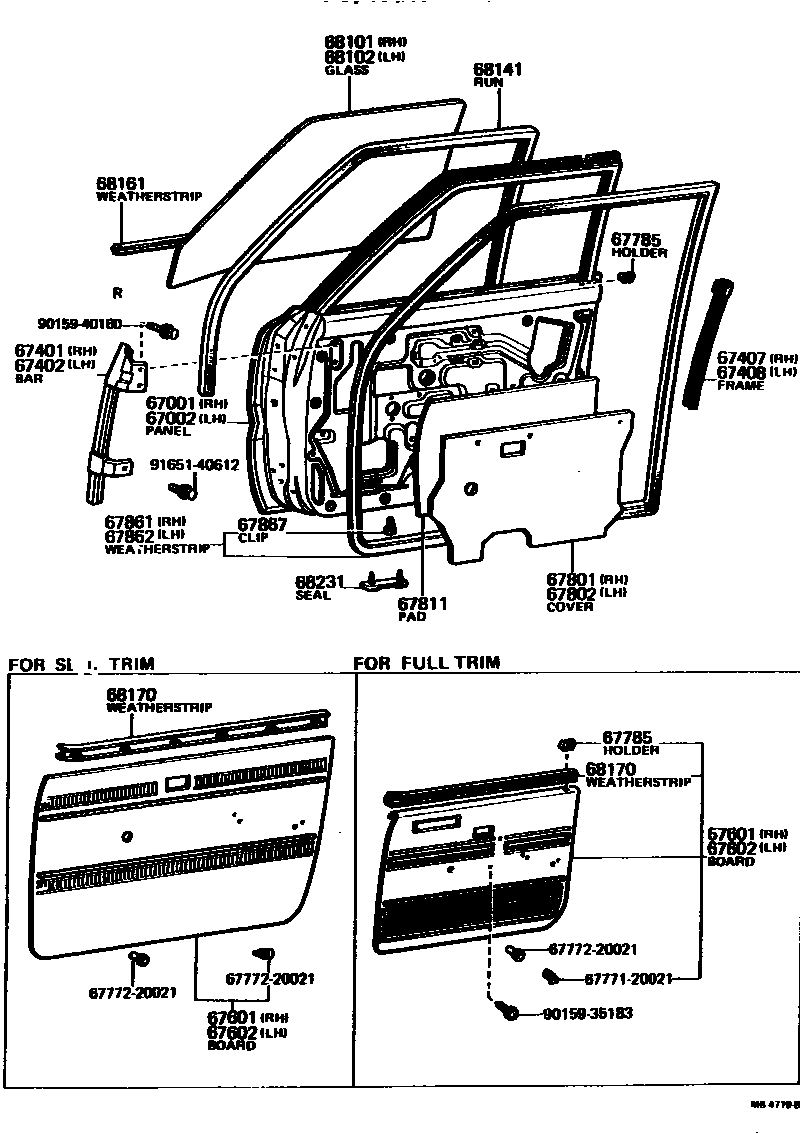

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-20090iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67001-20130iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

main67001-20131iRT119..3HC;RT105..3FC..4D197511-197701

main67001-20132iRT119..3HC197701-197808

main67001-20160iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67001-20181iRT119..3HC197701-197808

FOR W/MIRROR

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main67002-20130iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

main67002-20131iRT119..3HC;RT105..3FC..4D197511-197701

main67002-20132iRT119..3HC197701-197808

main67002-20150iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main67002-20151iRT119..3HC197701-197808

main67002-95507iRT119..3HC197701-197808

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67401-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main67401-20061iRT119..3HC197701-197808

main67401-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67410-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67402-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main67402-20051iRT119..3HC197701-197808

main67402-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67420-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67407-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67407-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67430-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67408-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67408-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67440-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-20300-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main67610-20300-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67610-20300-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67610-20300-05iRT105..3FC..4D197408-197509

BEIGE,BEIGE

main67610-20300-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

main67610-20360-01iRT118..4F;RT104..3FC..STD197308-197408

BLACK,BLACK

main67610-20360-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67610-20360-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67610-20360-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main67610-20412-01iRT119..3HC197701-197808

BLACK,BLACK

main67610-20412-03iRT119..3HC197701-197808

GRAY,GRAY

main67610-20412-05iRT119..3HC197701-197808

BEIGE,BEIGE

main67610-20430-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main67610-20430-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67610-20430-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67610-20430-05iRT119..3HC;RT105..3FC..4D197408-197701

BEIGE,BEIGE

main67610-20430-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

main67610-20431-01iRT119..3HC197701-197808

BLACK,BLACK

main67610-20431-05iRT119..3HC197701-197808

BEIGE,BEIGE

main67610-20480-01iRT118..4F;RT104..3FC..STD197308-197408

BLACK,BLACK

main67610-20480-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67610-20480-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67610-20480-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main67610-20560-01iRT119..3HC;RT105..3FC..4D197408-197608

BLACK,BLACK

main67610-20560-05iRT119..3HC;RT105..3FC..4D197408-197608

BEIGE,BEIGE

main67610-20560-06iRT119..3HC;RT105..3FC..4D197408-197608

OLIVE-BROWN,BROWN

main67610-20570-01iRT105..3FC..4D197408-197511

BLACK,BLACK

main67610-20570-05iRT105..3FC..4D197408-197511

BEIGE,BEIGE

main67610-20570-06iRT105..3FC..4D197408-197511

OLIVE-BROWN,BROWN

main67610-20571-01iRT119..3HC;RT105..3FC..4D197511-197701

BLACK,BLACK

main67610-20571-05iRT119..3HC;RT105..3FC..4D197511-197701

BEIGE,BEIGE

main67610-20571-06iRT119..3HC;RT105..3FC..4D197511-197701

OLIVE-BROWN,BROWN

main67610-20710-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main67610-20710-03iRT119..3HC197701-197808

FB.LUXURY EDITION,GRAY,GRAY

main67610-20710-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main67610-20730-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main67610-20730-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

main67610-95527-01iRT119..3HC197701-197808

BLACK,BLACK

main67610-95527-03iRT119..3HC197701-197808

GRAY,GRAY

main67610-95527-05iRT119..3HC197701-197808

BEIGE,BEIGE

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-20280-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main67620-20280-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67620-20280-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67620-20280-05iRT105..3FC..4D197408-197509

BEIGE,BEIGE

main67620-20280-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

main67620-20312-01iRT119..3HC197701-197808

BLACK,BLACK

main67620-20312-03iRT119..3HC197701-197808

GRAY,GRAY

main67620-20312-05iRT119..3HC197701-197808

BEIGE,BEIGE

main67620-20340-01iRT118..4F;RT104..3FC..STD197308-197408

BLACK,BLACK

main67620-20340-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67620-20340-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67620-20340-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main67620-20400-01iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

BLACK,BLACK

main67620-20400-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67620-20400-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67620-20400-05iRT119..3HC;RT105..3FC..4D197408-197701

BEIGE,BEIGE

main67620-20400-06iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

OLIVE-BROWN,BROWN

main67620-20401-01iRT119..3HC197701-197808

BLACK,BLACK

main67620-20401-05iRT119..3HC197701-197808

BEIGE,BEIGE

main67620-20430-01iRT118..4F;RT104..3FC..STD197308-197408

BLACK,BLACK

main67620-20430-03iRT118..4F;RT104..3FC..STD197308-197408

GRAY,GRAY

main67620-20430-04iRT118..4F;RT104..3FC..STD197308-197408

BLUE,BLUE

main67620-20430-06iRT118..4F;RT104..3FC..STD197308-197408

OLIVE-BROWN,BROWN

main67620-20460-01iRT119..3HC;RT105..3FC..4D197408-197608

BLACK,BLACK

main67620-20460-05iRT119..3HC;RT105..3FC..4D197408-197608

BEIGE,BEIGE

main67620-20460-06iRT119..3HC;RT105..3FC..4D197408-197608

OLIVE-BROWN,BROWN

main67620-20480-01iRT105..3FC..4D197408-197512

BLACK,BLACK

main67620-20480-05iRT105..3FC..4D197408-197512

BEIGE,BEIGE

main67620-20480-06iRT105..3FC..4D197408-197512

OLIVE-BROWN,BROWN

main67620-20481-01iRT119..3HC;RT105..3FC..4D197512-197701

BLACK,BLACK

main67620-20481-05iRT119..3HC;RT105..3FC..4D197512-197701

BEIGE,BEIGE

main67620-20481-06iRT119..3HC;RT105..3FC..4D197512-197701

OLIVE-BROWN,BROWN

main67620-20540-01iRT119..3HC197701-197708

FB.LUXURY EDITION,BLACK,BLACK

main67620-20540-03iRT119..3HC197701-197708

FB.LUXURY EDITION,GRAY,GRAY

main67620-20540-05iRT119..3HC197701-197808

FB.LUXURY EDITION,BEIGE,BEIGE

main67620-20550-01iRT119..3HC197708-197808

VL.LUXURY EDITION,BLACK,BLACK

main67620-20550-05iRT119..3HC197708-197808

VL.LUXURY EDITION,BEIGE,BEIGE

main67620-95516-01iRT119..3HC197701-197808

BLACK,BLACK

main67620-95516-03iRT119..3HC197701-197808

GRAY,GRAY

main67620-95516-05iRT119..3HC197701-197808

BEIGE,BEIGE

67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR

main67785-20010×2iRT118..4F;RT104..3FC..STD197308-197408

HOLE SIZE 10X22 SEMI TRIM

main67785-22010×2iRT105..3FC..4D197408-197512

FULL TRIM

main69751-20040×2iRT119..3HC;RT105..3FC..4D197512-197808

FULL TRIM

main69751-20050×2iRT118..4F;RT104..3FC..STD197308-197408

HOLE SIZE 13X25 SEMI TRIM

67801COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH

main67831-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197507

main67831-20120iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197607

main67831-20121iRT119..3HC197607-197808

main67831-20170iRT119..3HC;RT105..3FC..4D197507-197607

main67831-20171iRT119..3HC197607-197808

main67831-95502iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67802COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH

main67831-20110iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197507

main67831-20120iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197607

main67831-20121iRT119..3HC197607-197808

main67831-20170iRT119..3HC;RT105..3FC..4D197507-197607

main67831-20171iRT119..3HC197607-197808

main67831-95502iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67811PAD, FRONT DOOR SILENCER

main67811-20050×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67811-20060×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67861-20090iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67861-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67862-20090iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67862-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

67867CLIP, DOOR WEATHERSTRIP

main67867-12020×40iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main67868-30030×12iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-20140iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

TN.TP.T=4.0

main68111-20141iRT119..3HC197701-197808

TN.TP.T=4.0

main68111-20160iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TP.T=4.0

main68111-20170iRT119..3HC197608-197808

TN.TP.T=4.0

main68111-20180iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=5.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

TN.TP.T=4.0

main68112-20061iRT119..3HC197701-197808

TN.TP.T=4.0

main68112-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TP.T=4.0

main68112-20090iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

TN.TP.T=4.0

main68112-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

TN.TP.T=5.0

68141RUN, FRONT DOOR GLASS

main68141-20030×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main68141-20040×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main68141-20051×2iRT119..3HC197701-197808

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

RH.

main68210-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

LH.

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

RH.

main68170-20060iRT119..3HC;RT105..3FC..4D197408-197701

RH.

main68170-20061×2iRT119..3HC197701-197808

main68170-20070iRT118..4F;RT104..3FC..STD197308-197408

RH.

main68170-20080×2iRT119..3HC;RT105..3FC..4D197408-197808

main68170-20090×2iRT119..3HC;RT105..3FC..4D197408-197608

main68220-20020iRT119..3HC;RT105..3FC..4D197408-197701

LH.

main68220-20030iRT118..4F;RT104..3FC..STD197308-197408

LH.

main68220-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

LH.

68231SEAL, FRONT DOOR DRAIN HOLE DUST

main68231-30020×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9015935183

main90159-35183

9015940160

main90159-40160

9165140612

main91651-40612

26 parts on this diagram · 2 diagrams in section
