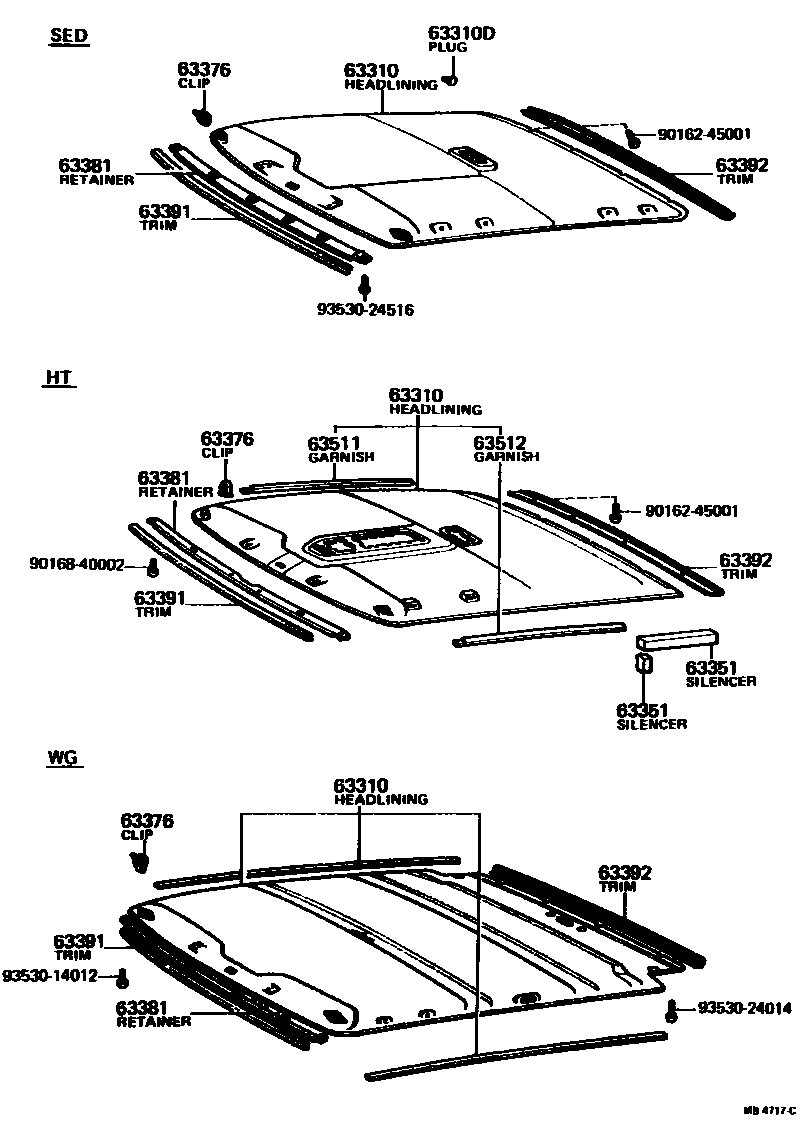

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-20080iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main63310-20110iRT118..4F;RT104..3FC..STD197308-197404

main63310-20111iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197404-197509

main63310-20112-03iRT119..3HC;RT105..3FC..4D197509-197612

GRAY,GRAY

main63310-20112-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63310-20112-13iRT119..3HC197701-197704

GRAY,GRAY

main63310-20112-15iRT119..3HC197701-197704

BEIGE,BEIGE

main63310-20113-03iRT119..3HC197704-197808

GRAY,GRAY

main63310-20113-05iRT119..3HC197704-197808

BEIGE,BEIGE

main63310-20121-05iRT119..3HC197701-197704

BEIGE,BEIGE

main63310-20121-13iRT119..3HC197701-197704

GRAY,GRAY

main63310-20122-03iRT119..3HC197704-197808

GRAY,GRAY

main63310-20122-05iRT119..3HC197704-197808

BEIGE,BEIGE

main63310-21010iRT118..4F;RT104..3FC..STD197308-197403

main63310-21011iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197403-197509

main63310-21011-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main63310-21011-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63310-21011-13iRT119..3HC197701-197808

GRAY,GRAY

main63310-21011-15iRT119..3HC197701-197808

BEIGE,BEIGE

main63310-95505-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main63310-95505-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63310-95506-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main63310-95506-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63310-95512-03iRT119..3HC197701-197808

GRAY,GRAY

main63310-95512-05iRT119..3HC197710-197808

BEIGE,BEIGE

63310DCLIP, ROOF HEADLINING

main90467-06143×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main90467-06143-13×2iRT119..3HC197701-197808

GRAY,GRAY

main90467-06143-15×2iRT119..3HC197701-197808

BEIGE,BEIGE

63351SILENCER, ROOF SIDE

main63351-95500×2iRT119..3HC;RT105..3FC..4D197509-197701

L=200

main63352-95500×4iRT119..3HC197608-197701

L=30

63376CLIP, HEADLINING

main63376-20010×12iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

63381RETAINER, HEADLINING, FRONT

main63372-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main63372-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

63391TRIM, ROOF HEADLINING, FRONT

main63391-20010iRT118..4F;RT104..3FC..STD197308-197403

main63391-20010-03iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197403-197701

GRAY,GRAY

main63391-20010-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63391-20010-13iRT119..3HC197701-197808

GRAY,GRAY

main63391-20010-15iRT119..3HC197701-197808

BEIGE,BEIGE

main63391-20020-03iRT118..4F;RT104..3FC..STD197308-197403

GRAY,GRAY

63392TRIM, ROOF HEADLINING, REAR

main63392-20010iRT118..4F;RT104..3FC..STD197308-197404

main63392-20011iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197404-197509

main63392-20011-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main63392-20011-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63392-20011-13iRT119..3HC197701-197808

GRAY,GRAY

main63392-20011-15iRT119..3HC197701-197808

BEIGE,BEIGE

main63392-20020-03iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

GRAY,GRAY

main63392-21010iRT118..4F;RT104..3FC..STD197308-197403

main63392-21011iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197403-197509

main63392-21011-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main63392-21011-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63392-21011-13iRT119..3HC197701-197808

GRAY,GRAY

main63392-21011-15iRT119..3HC197701-197808

BEIGE,BEIGE

main63392-95500-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main63392-95500-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main63392-95500-13iRT119..3HC197701-197808

GRAY,GRAY

main63392-95500-15iRT119..3HC197701-197808

BEIGE,BEIGE

63511GARNISH, ROOF HEADLINING SIDE, FRONT RH

main62435-20020-03iRT105..3FC..4D197503-197509

GRAY,GRAY

main62435-95500-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main62435-95500-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main62435-95500-13iRT119..3HC197701-197808

GRAY,GRAY

main62435-95500-15iRT119..3HC197701-197808

BEIGE,BEIGE

63512GARNISH, ROOF HEADLINING SIDE, FRONT LH

main62436-20020-03iRT105..3FC..4D197503-197509

GRAY,GRAY

main62436-95500-03iRT119..3HC;RT105..3FC..4D197509-197701

GRAY,GRAY

main62436-95500-05iRT119..3HC;RT105..3FC..4D197509-197701

BEIGE,BEIGE

main62436-95500-13iRT119..3HC197701-197808

GRAY,GRAY

main62436-95500-15iRT119..3HC197701-197808

BEIGE,BEIGE

9016245001

main90162-45001

9016840002

main90168-40002

9053024014

main90530-24014

9353014012

main93530-14012

9353024516

main93530-24516

14 parts on this diagram · 1 diagram in section
