INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

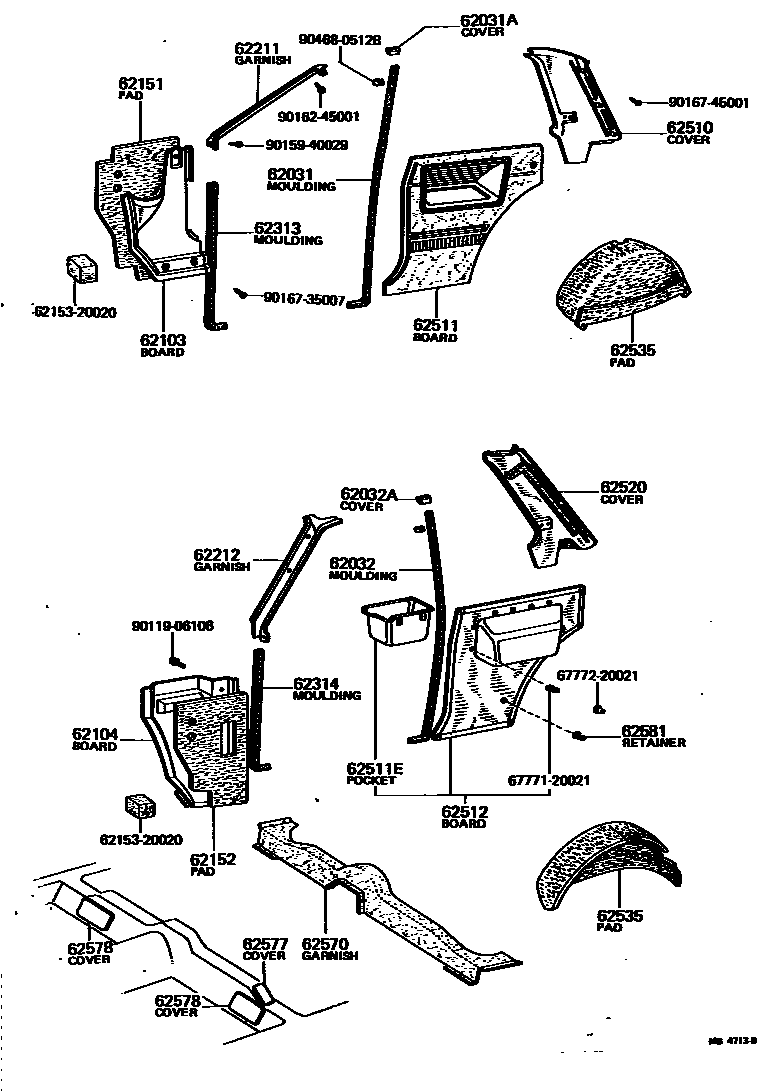

Parts diagram
62031MOULDING SUB-ASSY, FRONT DOOR OPENING TRIM, RH
main62314-20020-01i197308-197701
BLACK,BLACK
sub62314-20020
main62314-20020-03i197308-197408
GRAY,GRAY
sub62314-20020
main62314-20020-04i197308-197408
BLUE,BLUE
sub62314-20020
main62314-20020-05i197509-197701
BEIGE,BEIGE
sub62314-20020
main62314-20020-06i197308-197701
OLIVE-BROWN,BROWN
sub62314-20020
main62314-20020-11i197701-197808
BLACK,BLACK
sub62314-20020
main62314-20020-13i197701-197808
GRAY,GRAY
sub62314-20020
main62314-20020-15i197701-197808
BEIGE,BEIGE
sub62314-20020
62031ACOVER, FRONT DOOR OPENING, RH
main62345-20010-01i197308-197402
BLACK,BLACK
sub62345-20012
main62345-20010-03i197308-197402
GRAY,GRAY
sub62345-20012
main62345-20011-01i197402-197504
BLACK,BLACK
sub62345-20012
main62345-20011-03i197402-197408
GRAY,GRAY
sub62345-20012
main62345-20011-04i197402-197408
BLUE,BLUE
sub62345-20012
main62345-20011-06i197402-197504
OLIVE-BROWN,BROWN
sub62345-20012
main62345-20012-01i197504-197701
BLACK,BLACK
main62345-20012-05i197509-197701
BEIGE,BEIGE
main62345-20012-06i197504-197701
OLIVE-BROWN,BROWN
main62345-20012-11i197701-197808
BLACK,BLACK
main62345-20012-13i197701-197808
GRAY,GRAY
main62345-20012-15i197701-197808
BEIGE,BEIGE
62032MOULDING SUB-ASSY, FRONT DOOR OPENING TRIM, LH
main62314-20020-01i197308-197701
BLACK,BLACK
sub62314-20020
main62314-20020-03i197308-197408
GRAY,GRAY
sub62314-20020
main62314-20020-04i197308-197408
BLUE,BLUE
sub62314-20020
main62314-20020-05i197509-197701
BEIGE,BEIGE
sub62314-20020
main62314-20020-06i197308-197701
OLIVE-BROWN,BROWN
sub62314-20020
main62314-20020-11i197701-197808
BLACK,BLACK
sub62314-20020
main62314-20020-13i197701-197808
GRAY,GRAY
sub62314-20020
main62314-20020-15i197701-197808
BEIGE,BEIGE
sub62314-20020
62032ACOVER, FRONT DOOR OPENING, LH
main62344-20010-01i197308-197402
BLACK,BLACK
sub62344-20012
main62344-20010-03i197308-197402
GRAY,GRAY
sub62344-20012
main62344-20011-01i197402-197504
BLACK,BLACK
sub62344-20012
main62344-20011-03i197402-197408
GRAY,GRAY
sub62344-20012
main62344-20011-04i197402-197408
BLUE,BLUE
sub62344-20012
main62344-20011-06i197402-197504
OLIVE-BROWN,BROWN
sub62344-20012
main62344-20012-01i197504-197701
BLACK,BLACK
main62344-20012-05i197509-197701
BEIGE,BEIGE
main62344-20012-06i197504-197701
OLIVE-BROWN,BROWN
main62344-20012-11i197701-197808
BLACK,BLACK
main62344-20012-13i197701-197808
GRAY,GRAY
main62344-20012-15i197701-197808
BEIGE,BEIGE
62103BOARD SUB-ASSY, COWL SIDE TRIM, RH
main62111-20090i197308-197701
main62111-20110i197505-197509
sub62111-20090
main62111-20120-01i197509-197808
BLACK,BLACK
main62111-20120-03i197701-197808
GRAY,GRAY
main62111-20120-05i197509-197701
BEIGE,BEIGE
main62111-20120-06i197509-197701
BROWN,BROWN
main62111-20120-15i197701-197808
BEIGE,BEIGE
62104BOARD SUB-ASSY, COWL SIDE TRIM, LH
main62112-20080i197308-197505
sub62112-20110
main62112-20100-01i197509-197808
BLACK,BLACK
sub62112-20100
main62112-20100-03i197701-197808
GRAY,GRAY
sub62112-20100
main62112-20100-05i197509-197701
BEIGE,BEIGE
sub62112-20100
main62112-20100-06i197509-197701
BROWN,BROWN
sub62112-20100
main62112-20100-15i197701-197808
BEIGE,BEIGE
sub62112-20100
main62112-20110i197505-197701
62151PAD, COWL SIDE SILENCER, NO.1
main62105-20020i197701-197808
main62151-20050i197308-197701
62152PAD, COWL SIDE SILENCER, NO.2
main62106-20020i197701-197808
main62152-20040i197308-197701
62211GARNISH, FRONT PILLAR, RH
main62211-20050-03i197308-197509
GRAY,GRAY
sub62211-95501
main62211-20070i197308-197404
sub62211-20071
main62211-20071i197404-197509
main62211-20071-03i197509-197701
GRAY,GRAY
sub62211-20071
main62211-20071-05i197509-197701
BEIGE,BEIGE
sub62211-20071
main62211-20071-13i197701-197808
GRAY,GRAY
sub62211-20071
main62211-20071-15i197701-197808
BEIGE,BEIGE
sub62211-20071
main62211-95501-03i197509-197510
GRAY,GRAY
sub62211-95502
main62211-95501-05i197509-197510
BEIGE,BEIGE
sub62211-95502
main62211-95502-03i197510-197701
GRAY,GRAY
sub62211-95502
main62211-95502-05i197510-197701
BEIGE,BEIGE
sub62211-95502
main62211-95502-13i197701-197808
GRAY,GRAY
sub62211-95502
main62211-95502-15i197701-197808
BEIGE,BEIGE
sub62211-95502
62212GARNISH, FRONT PILLAR, LH
main62212-20050-03i197308-197509
GRAY,GRAY
sub62212-95501
main62212-20070i197308-197404
sub62212-20071
main62212-20071i197404-197509
main62212-20071-03i197509-197701
GRAY,GRAY
sub62212-20071
main62212-20071-05i197509-197701
BEIGE,BEIGE
sub62212-20071
main62212-20071-13i197701-197808
GRAY,GRAY
sub62212-20071
main62212-20071-15i197701-197808
BEIGE,BEIGE
sub62212-20071
main62212-95501-03i197509-197510
GRAY,GRAY
sub62212-95502
main62212-95501-05i197509-197510
BEIGE,BEIGE
sub62212-95502
main62212-95502-03i197510-197701
GRAY,GRAY
sub62212-95502
main62212-95502-05i197510-197701
BEIGE,BEIGE
sub62212-95502
main62212-95502-13i197701-197808
GRAY,GRAY
sub62212-95502
main62212-95502-15i197701-197808
BEIGE,BEIGE
sub62212-95502
62313MOULDING, FRONT DOOR OPENING TRIM, RH
main62313-20030-01i197308-197701
BLACK,BLACK
sub62313-20030
main62313-20030-03i197308-197408
GRAY,GRAY
sub62313-20030
main62313-20030-04i197308-197408
BLUE,BLUE
sub62313-20030
main62313-20030-05i197509-197701
BEIGE,BEIGE
sub62313-20030
main62313-20030-06i197308-197701
OLIVE-BROWN,BROWN
sub62313-20030
main62313-20030-11i197701-197808
BLACK,BLACK
sub62313-20030
main62313-20030-13i197701-197808
GRAY,GRAY
sub62313-20030
main62313-20030-15i197701-197808
BEIGE,BEIGE
sub62313-20030
main62313-20040-01i197308-197512
BLACK,BLACK
sub62313-20030
main62313-20040-03i197308-197408
GRAY,GRAY
sub62313-20030
main62313-20040-04i197308-197408
BLUE,BLUE
sub62313-20030
main62313-20040-05i197509-197512
BEIGE,BEIGE
sub62313-20030
main62313-20040-06i197308-197512
OLIVE-BROWN,BROWN
sub62313-20030
62314MOULDING, FRONT DOOR OPENING TRIM, LH
main62313-20030-01i197308-197701
BLACK,BLACK
sub62313-20030
main62313-20030-03i197308-197408
GRAY,GRAY
sub62313-20030
main62313-20030-04i197308-197408
BLUE,BLUE
sub62313-20030
main62313-20030-05i197509-197701
BEIGE,BEIGE
sub62313-20030
main62313-20030-06i197308-197701
OLIVE-BROWN,BROWN
sub62313-20030
main62313-20030-11i197701-197808
BLACK,BLACK
sub62313-20030
main62313-20030-13i197701-197808
GRAY,GRAY
sub62313-20030
main62313-20030-15i197701-197808
BEIGE,BEIGE
sub62313-20030
main62313-20040-01i197308-197512
BLACK,BLACK
sub62313-20030
main62313-20040-03i197308-197408
GRAY,GRAY
sub62313-20030
main62313-20040-04i197308-197408
BLUE,BLUE
sub62313-20030
main62313-20040-05i197509-197512
BEIGE,BEIGE
sub62313-20030
main62313-20040-06i197308-197512
OLIVE-BROWN,BROWN
sub62313-20030
62510COVER ASSY, BACK WINDOW SIDE GARNISH, RH
main62519-20040i197308-197404
sub62519-20041
main62519-20041i197404-197509
main62519-20041-03i197509-197701
GRAY,GRAY
sub62519-20041
main62519-20041-05i197509-197701
BEIGE,BEIGE
sub62519-20041
main62519-20041-13i197701-197808
GRAY,GRAY
sub62519-20041
main62519-20041-15i197701-197808
BEIGE,BEIGE
sub62519-20041
main62519-20050i197308-197404
sub62519-20051
main62519-20051i197404-197509
main62519-20051-03i197509-197701
GRAY,GRAY
sub62519-20051
main62519-20051-05i197509-197701
BEIGE,BEIGE
sub62519-20051
main62519-20051-13i197701-197808
GRAY,GRAY
sub62519-20051
main62519-20051-15i197701-197808
BEIGE,BEIGE
sub62519-20051
main62519-20060-03i197308-197509
GRAY,GRAY
sub62519-95500
main62519-95500-03i197509-197510
GRAY,GRAY
sub62519-95501
main62519-95500-05i197509-197510
BEIGE,BEIGE
sub62519-95501
main62519-95501-03i197510-197701
GRAY,GRAY
sub62519-95501
main62519-95501-05i197510-197701
BEIGE,BEIGE
sub62519-95501
main62519-95501-13i197701-197808
GRAY,GRAY
sub62519-95501
main62519-95501-15i197701-197808
BEIGE,BEIGE
sub62519-95501
62511BOARD, QUARTER INSIDE TRIM, RH
main62051-21010-01i197308-197509
BLACK,BLACK
sub62051-21040
main62051-21010-03i197308-197408
GRAY,GRAY
sub62051-21040
main62051-21010-06i197308-197509
BROWN,BROWN
sub62051-21040
main62051-21020-01i197308-197509
FOR W/STEREO,BLACK,BLACK
sub62051-21050
main62051-21020-03i197308-197408
FOR W/STEREO,GRAY,GRAY
sub62051-21050
main62051-21020-06i197308-197509
FOR W/STEREO,BROWN,BROWN
sub62051-21050
main62051-21040-01i197509-197701
BLACK,BLACK
sub62051-21040
sub62051-21050
main62051-21040-05i197511-197701
BEIGE,BEIGE
sub62051-21040
sub62051-21050
main62051-21040-06i197509-197701
BROWN,BROWN
sub62051-21040
sub62051-21050
main62051-21040-11i197701-197808
BLACK,BLACK
sub62051-21040
sub62051-21050
main62051-21040-13i197701-197808
GRAY,GRAY
sub62051-21040
sub62051-21050
main62051-21040-15i197701-197808
BEIGE,BEIGE
sub62051-21040
sub62051-21050
main62051-21050-01i197509-197701
FOR W/STEREO,BLACK,BLACK
sub62051-21050
main62051-21050-05i197511-197701
FOR W/STEREO,BEIGE,BEIGE
sub62051-21050
main62051-21050-06i197509-197701
FOR W/STEREO,BROWN,BROWN
sub62051-21050
main62051-21050-11i197701-197808
FOR W/STEREO,BLACK,BLACK
sub62051-21050
main62051-21050-13i197701-197808
FOR W/STEREO,GRAY,GRAY
sub62051-21050
main62051-21050-15i197701-197808
FOR W/STEREO,BEIGE,BEIGE
sub62051-21050
main62510-20120-01i197308-197701
BLACK,BLACK
sub62510-95505
main62510-20120-03i197308-197408
GRAY,GRAY
sub62510-95505
main62510-20120-04i197308-197408
BLUE,BLUE
sub62510-95505
main62510-20120-05i197408-197701
BEIGE,BEIGE
sub62510-95505
main62510-20120-06i197308-197701
OLIVE-BROWN,BROWN
sub62510-95505
main62510-20180-01i197308-197701
BLACK,BLACK
main62510-20180-03i197308-197408
GRAY,GRAY
main62510-20180-04i197308-197408
BLUE,BLUE
main62510-20180-05i197408-197509
BEIGE,BEIGE
main62510-20180-06i197308-197701
OLIVE-BROWN,BROWN
main62510-20180-15i197509-197701
BEIGE,BEIGE
main62510-20181-01i197701-197808
BLACK,BLACK
main62510-20181-05i197701-197808
BEIGE,BEIGE
main62510-20190-01i197308-197408
BLACK,BLACK
main62510-20190-03i197308-197408
GRAY,GRAY
main62510-20190-04i197308-197408
BLUE,BLUE
main62510-20190-06i197308-197408
OLIVE-BROWN,BROWN
main62510-20220-01i197408-197608
BLACK,BLACK
main62510-20220-05i197408-197509
BEIGE,BEIGE
main62510-20220-06i197408-197608
OLIVE-BROWN,BROWN
main62510-20220-15i197509-197608
BEIGE,BEIGE
main62510-95511-01i197701-197808
BLACK,BLACK
main62510-95511-03i197701-197808
GRAY,GRAY
main62510-95511-05i197701-197808
BEIGE,BEIGE
62511EPOCKET, QUARTER TRIM
main62526-12030-01i197308-197701
BLACK,BLACK
sub62526-12030
main62526-12030-03i197308-197408
GRAY,GRAY
sub62526-12030
main62526-12030-15i197701-197808
BEIGE,BEIGE
sub62526-12030
main62526-12030-24i197308-197408
BLUE,BLUE
sub62526-12030
main62526-12030-31i197701-197808
BLACK,BLACK
sub62526-12030
main62526-12030-36i197308-197509
BROWN,BROWN
sub62526-12030
main62526-12030-46i197509-197701
BROWN,BROWN
sub62526-12030
62512BOARD, QUARTER INSIDE TRIM, LH
main62052-21010-01i197308-197509
BLACK,BLACK
sub62052-21020
main62052-21010-03i197308-197408
GRAY,GRAY
sub62052-21020
main62052-21010-06i197308-197509
BROWN,BROWN
sub62052-21020
main62052-21020-01i197308-197509
FOR W/STEREO,BLACK,BLACK
main62052-21020-03i197308-197408
FOR W/STEREO,GRAY,GRAY
main62052-21020-06i197308-197509
FOR W/STEREO,BROWN,BROWN
main62052-21060-01i197403-197509
FOR W/REAR WIPER,BLACK,BLACK
sub62052-21070
main62052-21060-03i197403-197408
FOR W/REAR WIPER,GRAY,GRAY
sub62052-21070
main62052-21060-06i197403-197509
FOR W/REAR WIPER,BROWN,BROWN
sub62052-21070
main62052-21070-01i197403-197509
FOR W/STEREO & RR.WIPER,BLACK,BLACK
main62052-21070-03i197403-197408
FOR W/STEREO & RR.WIPER,GRAY,GRAY
main62052-21070-06i197403-197509
FOR W/STEREO & RR.WIPER,BROWN,BROWN
main62052-21080-01i197509-197701
BLACK,BLACK
sub62052-21080
sub62052-21090
main62052-21080-05i197511-197701
BEIGE,BEIGE
sub62052-21080
sub62052-21090
main62052-21080-06i197509-197701
BROWN,BROWN
sub62052-21080
sub62052-21090
main62052-21080-11i197701-197808
BLACK,BLACK
sub62052-21080
sub62052-21090
main62052-21080-13i197701-197808
GRAY,GRAY
sub62052-21080
sub62052-21090
main62052-21080-15i197701-197808
BEIGE,BEIGE
sub62052-21080
sub62052-21090
main62052-21090-01i197509-197701
FOR W/STEREO & RR.WIPER,BLACK,BLACK
sub62052-21090
main62052-21090-05i197511-197701
FOR W/STEREO & RR.WIPER,BEIGE,BEIGE
sub62052-21090
main62052-21090-06i197509-197701
FOR W/STEREO & RR.WIPER,BROWN,BROWN
sub62052-21090
main62052-21090-11i197701-197808
FOR W/STEREO & RR.WIPER,BLACK,BLACK
sub62052-21090
main62052-21090-13i197701-197808
FOR W/STEREO & RR.WIPER,GRAY,GRAY
sub62052-21090
main62052-21090-15i197701-197808
FOR W/STEREO & RR.WIPER,BEIGE,BEIGE
sub62052-21090
main62520-20120-01i197308-197701
BLACK,BLACK
sub62520-95505
main62520-20120-03i197308-197408
GRAY,GRAY
sub62520-95505
main62520-20120-04i197308-197408
BLUE,BLUE
sub62520-95505
main62520-20120-05i197408-197701
BEIGE,BEIGE
sub62520-95505
main62520-20120-06i197308-197701
OLIVE-BROWN,BROWN
sub62520-95505
main62520-20180-01i197308-197701
BLACK,BLACK
main62520-20180-03i197308-197408
GRAY,GRAY
main62520-20180-04i197308-197408
BLUE,BLUE
main62520-20180-05i197408-197509
BEIGE,BEIGE
main62520-20180-06i197308-197701
OLIVE-BROWN,BROWN
main62520-20180-15i197509-197701
BEIGE,BEIGE
main62520-20181-01i197701-197808
BLACK,BLACK
main62520-20181-05i197701-197808
BEIGE,BEIGE
main62520-20190-01i197308-197408
BLACK,BLACK
main62520-20190-03i197308-197408
GRAY,GRAY
main62520-20190-04i197308-197408
BLUE,BLUE
main62520-20190-06i197308-197408
OLIVE-BROWN,BROWN
main62520-20220-01i197408-197701
BLACK,BLACK
main62520-20220-05i197408-197509
BEIGE,BEIGE
main62520-20220-06i197408-197701
OLIVE-BROWN,BROWN
main62520-20220-15i197509-197701
BEIGE,BEIGE
main62520-95511-01i197701-197808
BLACK,BLACK
main62520-95511-03i197701-197808
GRAY,GRAY
main62520-95511-05i197701-197808
BEIGE,BEIGE
62520COVER ASSY, BACK WINDOW SIDE GARNISH, LH
main62518-20020i197308-197404
sub62518-20021
main62518-20021i197404-197509
main62518-20021-03i197509-197701
GRAY,GRAY
sub62518-20021
main62518-20021-05i197509-197701
BEIGE,BEIGE
sub62518-20021
main62518-20021-13i197701-197808
GRAY,GRAY
sub62518-20021
main62518-20021-15i197701-197808
BEIGE,BEIGE
sub62518-20021
main62518-20030i197308-197404
sub62518-20031
main62518-20031i197404-197509
main62518-20031-03i197509-197701
GRAY,GRAY
sub62518-20031
main62518-20031-05i197509-197701
BEIGE,BEIGE
sub62518-20031
main62518-20031-13i197701-197808
GRAY,GRAY
sub62518-20031
main62518-20031-15i197701-197808
BEIGE,BEIGE
sub62518-20031
main62518-20060-03i197308-197509
GRAY,GRAY
sub62518-95500
main62518-95500-03i197509-197510
GRAY,GRAY
sub62518-95501
main62518-95500-05i197509-197510
BEIGE,BEIGE
sub62518-95501
main62518-95501-03i197510-197701
GRAY,GRAY
sub62518-95501
main62518-95501-05i197510-197701
BEIGE,BEIGE
sub62518-95501
main62518-95501-13i197701-197808
GRAY,GRAY
sub62518-95501
main62518-95501-15i197701-197808
BEIGE,BEIGE
sub62518-95501
62535PAD, QUARTER WHEEL HOUSE TRIM
main62531-20050i197308-197509
main62531-20060i197308-197808
RH.
main62531-20070i197308-197808
main62531-21010i197308-197808
main62531-95506i197608-197808
RH.
main62532-20030i197308-197808
LH.
main62532-95501i197608-197808
LH.
62570GARNISH ASSY, CENTER FLOOR CROSSMEMBER
main62556-21020i197308-197509
RH.
main62557-21020i197308-197509
LH.
main62575-20010i197503-197701
BLACK
main62575-20030-03i197308-197408
GRAY,GRAY
main62575-20030-04i197308-197408
BLUE,BLUE
main62575-20030-06i197308-197503
OLIVE-BROWN,BROWN
main62575-20040i197308-197503
BLACK
main62575-20050-03i197308-197408
GRAY,GRAY
main62575-20050-04i197308-197408
BLUE,BLUE
main62575-20050-06i197308-197503
OLIVE-BROWN,BROWN
main62576-20010i197308-197503
BLACK
62577COVER, CROSSMEMBER, UPPER
main62579-20010i197503-197701
62578COVER, CROSSMEMBER, NO.1
main62578-20020i197503-197701
62581RETAINER, QUARTER TRIM
main62581-14010-01i197308-197701
BLACK,BLACK
sub62581-14010
main62581-14010-03i197308-197408
GRAY,GRAY
sub62581-14010
main62581-14010-04i197308-197408
BLUE,BLUE
sub62581-14010
main62581-14010-06i197308-197509
OLIVE-BROWN,BROWN
sub62581-14010
main62581-14010-26i197509-197701
BROWN,BROWN
sub62581-14010
main62581-30010-01i197308-197701
BLACK,BLACK
sub62581-30010
main62581-30010-03i197308-197408
GRAY,GRAY
sub62581-30010
main62581-30010-04i197308-197408
BLUE,BLUE
sub62581-30010
main62581-30010-11i197701-197808
BLACK,BLACK
sub62581-30010
main62581-30010-13i197701-197808
GRAY,GRAY
sub62581-30010
main62581-30010-15i197701-197808
BEIGE,BEIGE
sub62581-30010
main62581-30010-16i197308-197509
BROWN,BROWN
sub62581-30010
main62581-30010-36i197509-197701
BROWN,BROWN
sub62581-30010
6215320020WEATERSTRIP, REAR SIDE WINDOW
main62153-20020
6777120021WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20021
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021
9011906106
main90119-06106
9015940029
main90159-40029
9016245001
main90162-45001
9016735007
main90167-35007
9016745001
main90167-45001
9046805128
main90468-05128

31 parts on this diagram · 4 diagrams in section

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
