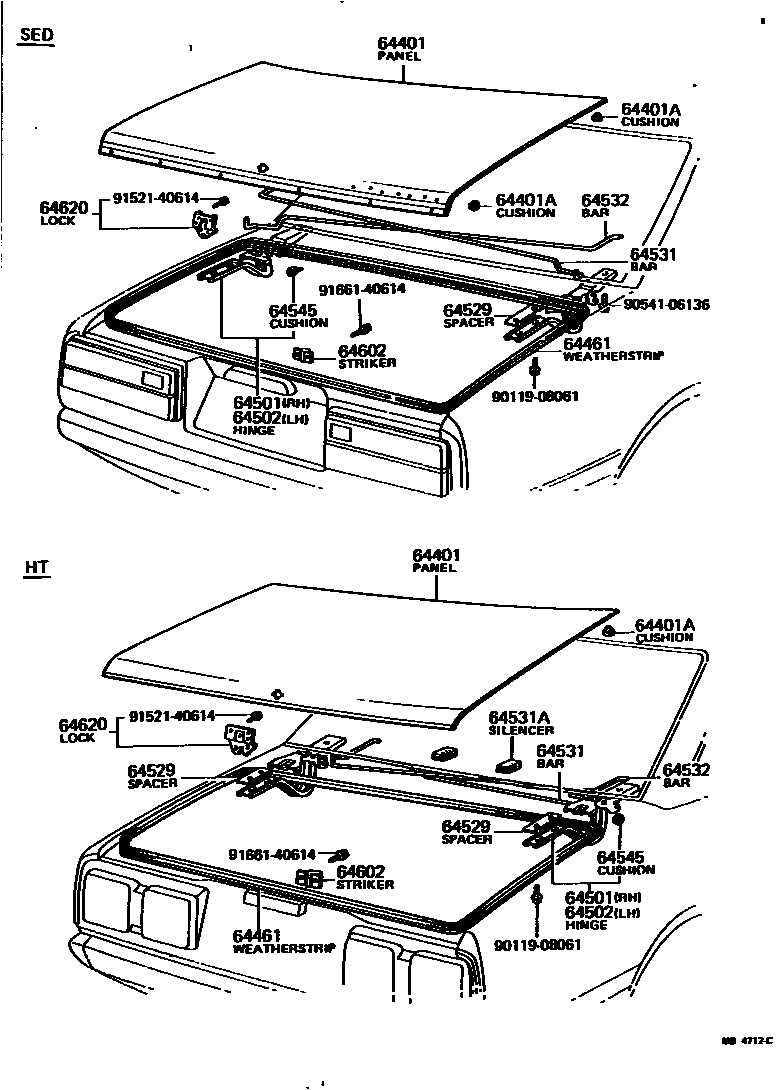

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-20240iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197512

main64401-20270iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

main64401-20271iRT119..3HC;RT105..3FC..4D197511-197708

main64401-20340iRT119..3HC197708-197808

main64401-95502iRT119..3HC;RT105..3FC..4D197512-197808

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-07022×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main90541-09130×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

FR.

main90541-09139×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

RR.

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main64461-20090iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main64510-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197612

main64510-20041iRT119..3HC197612-197808

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main64520-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197612

main64520-20031iRT119..3HC197612-197808

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010×4iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197506

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main64531-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197612

main64531-20061iRT119..3HC197612-197808

64531ASILENCER(FOR LUGGAGE DOOR HINGE TORSION BAR)

main69759-12011×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main69759-95500×2iRT119..3HC197701-197808

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main64532-20060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197612

main64532-20061iRT119..3HC197612-197808

64545CUSHION, LUGGAGE DOOR HINGE

main90541-06136×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main90541-08017×2iRT118..4F;RT104..3FC..STD197308-197403

main90541-09003×2iRT119..3HC197701-197808

main90541-10146×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197403-197808

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64602-22020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20010iRT119..3HC;RT105..3FC..4D197511-197808

main64620-29015iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197511

9011908061

main90119-08061

9054106136

main90541-06136

9152140614

main91521-40614

9166140614

main91661-40614

16 parts on this diagram · 1 diagram in section
