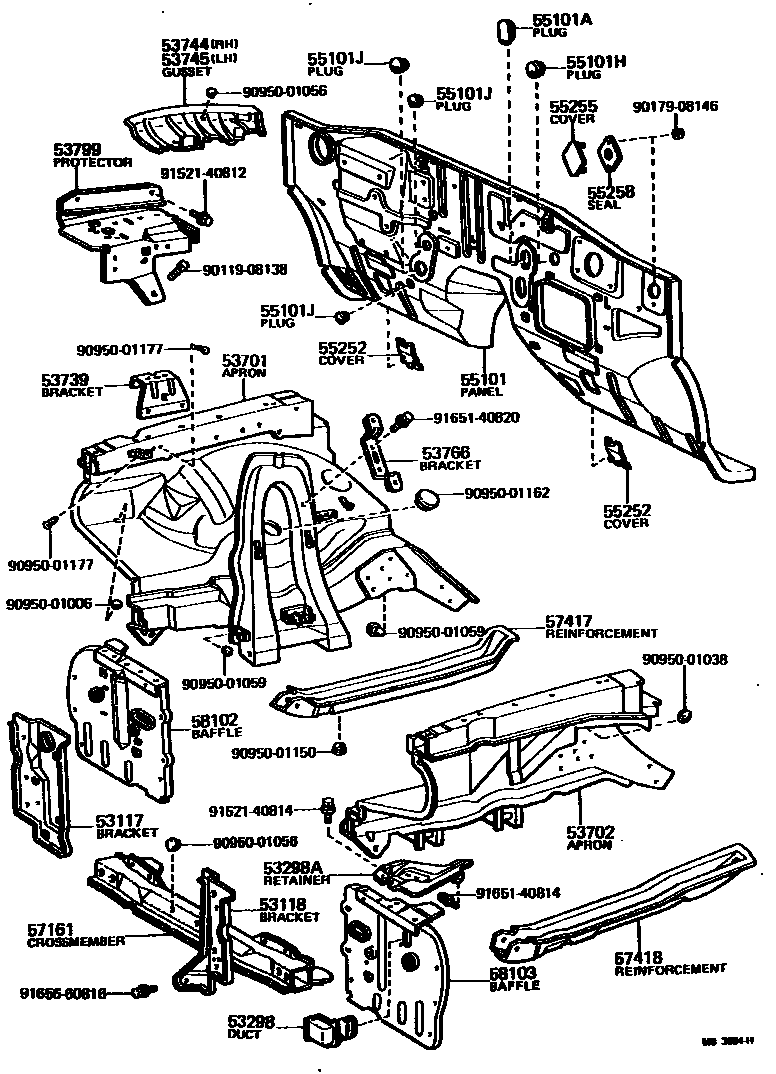

FRONT FENDER APRON & DASH PANEL

53117BRACKET, RADIATOR GRILLE SUPPORT, RH

main53166-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main53166-20011iRT119..3HC197701-197808

sub53166-20020

53118BRACKET, RADIATOR GRILLE SUPPORT, LH

main53167-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main53167-20011iRT119..3HC197701-197808

53298DUCT, COOL AIR INTAKE

main53207-20010iRT119..3HC197701-197808

53298ARETAINER, COOL AIR INTAKE DUCT

main53296-20010iRT119..3HC;RT105..3FC..4D197509-197808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20903iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main53701-20905iRT119..3HC197608-197701

main53701-20908iRT119..3HC197701-197808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20903iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main53702-20905iRT119..3HC197608-197701

sub53702-20914

main53702-20910iRT119..3HC197701-197706

main53702-20915iRT119..3HC197706-197808

53739BRACKET, BATTERY SUPPORT

main53739-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

53744GUSSET, FENDER APRON CENTER, RH

main53744-20020iRT118..4F;RT104..3FC..STD197308-197408

main53744-20030iRT118..4F;RT104..3FC..STD197308-197408

53745GUSSET, FENDER APRON CENTER, LH

main53745-20020iRT118..4F;RT104..3FC..STD197308-197408

main53745-20030iRT118..4F;RT104..3FC..STD197308-197408

53766BRACKET, FUEL FILTER MOUNTING

main53765-20010iRT119..3HC;RT105..3FC..4D197408-197808

53799PROTECTOR, FENDER APRON WIRE HARNESS

main53709-20010iRT118..4F;RT104..3FC..STD197308-197408

main53709-20020iRT119..3HC;RT105..3FC..4D197408-197701

main53799-20020iRT118..4F;RT104..3FC..STD197308-197408

55101PANEL SUB-ASSY, DASH

main55101-20220iRT118..4F;RT104..3FC..STD197308-197408

main55101-20221iRT105..3FC..4D197408-197509

main55101-20222iRT119..3HC;RT105..3FC..4D197509-197708

main55101-20223iRT119..3HC197708-197808

main55101-20240iRT118..4F;RT104..3FC..STD197308-197408

FOR W/COOLER

sub55101-20241

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01047iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

FOR L/HEATER,OD=60X30

main90950-01061iRT119..3HC;RT105..3FC..4D197408-197808

FOR L/HEATER,OD=36

sub90950-01872

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01006iRT119..3HC;RT105..3FC..4D197509-197808

main90950-01060iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

OD=26

sub90950-01866

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

FOR L/COOLER,OD=26

sub90950-01866

main90950-01061iRT119..3HC;RT105..3FC..4D197408-197808

FOR L/COOLER,OD=36

sub90950-01872

main90950-01167iRT118..4F;RT104..3FC..STD197308-197408

FOR L/COOLER,OD=42

main90950-01168iRT118..4F;RT104..3FC..STD197308-197408

FOR L/COOLER,OD=52

55252COVER, DASH PANEL HOLE

main55256-20010×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-20010iRT119..3HC197605-197808

main55255-22020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

57161CROSSMEMBER, FRONT

main57104-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

sub57417-20012

main57417-20011iRT119..3HC197701-197808

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20010iRT118..4F;RT104..3FC..STD197308-197408

main57418-20900iRT105..3FC..4D197408-197508

sub57506-20012

main57506-20010iRT119..3HC197605-197701

sub57506-20012

main57506-20011iRT119..3HC197701-197706

main57506-20020iRT105..3FC..4D197508-197605

main57506-20030iRT119..3HC197706-197808

sub57506-20031

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-20010iRT119..3HC197701-197808

main53211-20901iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197508

main53211-20902iRT119..3HC;RT105..3FC..4D197508-197701

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-20020iRT119..3HC197701-197808

main53212-20901iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197508

main53212-20902iRT119..3HC;RT105..3FC..4D197508-197701

sub53203-20030

9011908138

main90119-08138

9017908146

main90179-08146

9095001006

main90950-01006

9095001038

main90950-01038

9095001056

main90950-01056

9095001059

main90950-01059

9095001150

main90950-01150

9095001162

main90950-01162

9095001177

main90950-01177

9152140812

main91521-40812

9152140814

main91521-40814

9165140814

main91651-40814

9165140820

main91651-40820

9165660816

main91656-60816

37 parts on this diagram · 1 diagram in section
