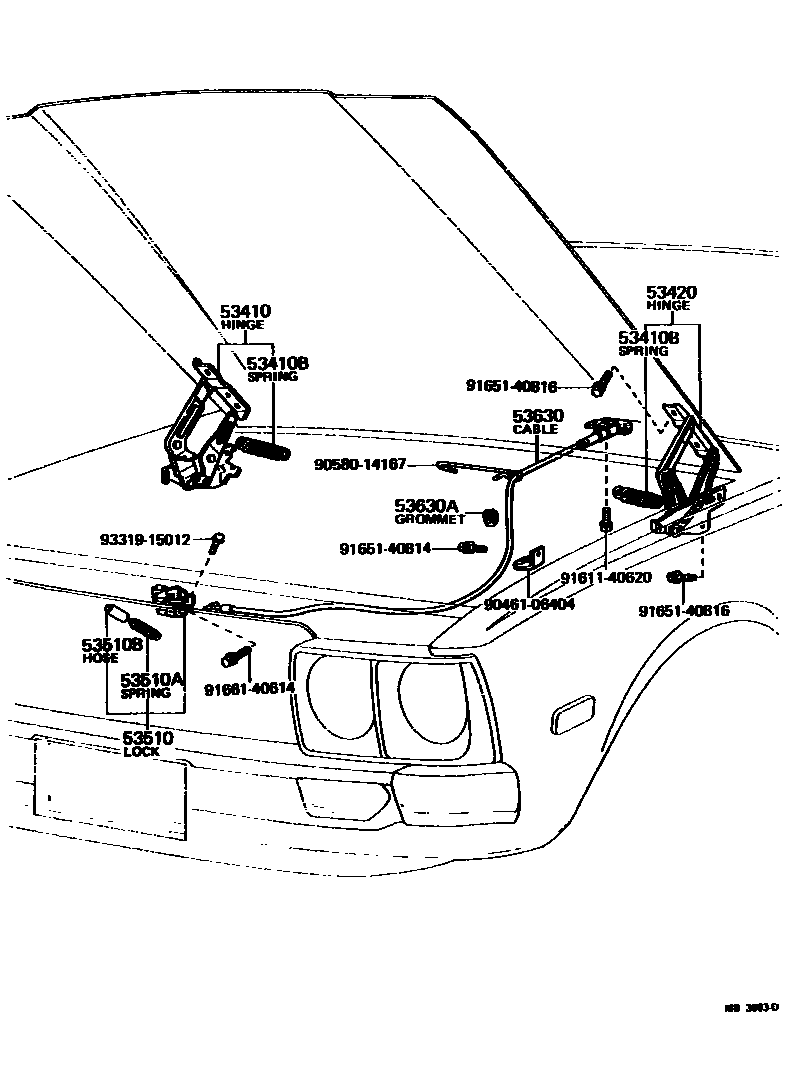

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

53410BSPRING, TENSION(FOR HOOD HINGE)

main90506-45001iRT119..3HC;RT105..3FC..4D197602-197808

main90506-48440iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197602

53420HINGE ASSY, HOOD, LH

main53420-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

53510LOCK ASSY, HOOD

main53510-20080iRT119..3HC197701-197708

main53510-20081iRT119..3HC197708-197808

main53510-22041iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-10196iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main90506-10487iRT119..3HC197701-197808

ID=8

main90506-16013iRT119..3HC197701-197808

ID=12

53510BHOSE(FOR HOOD LOCK)

main90446-12209iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197510

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-20100iRT119..3HC197701-197708

main53630-20101iRT119..3HC197708-197808

main53630-22040iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197410

main53630-22041iRT119..3HC;RT105..3FC..4D197410-197701

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15001iRT119..3HC197701-197808

main90480-15194iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

9046106404

main90461-06404

9058014167

main90580-14167

9161140620

main91611-40620

9165140814

main91651-40814

9165140816

main91651-40816

9166140614

main91661-40614

9331915012

main93319-15012

15 parts on this diagram · 1 diagram in section
