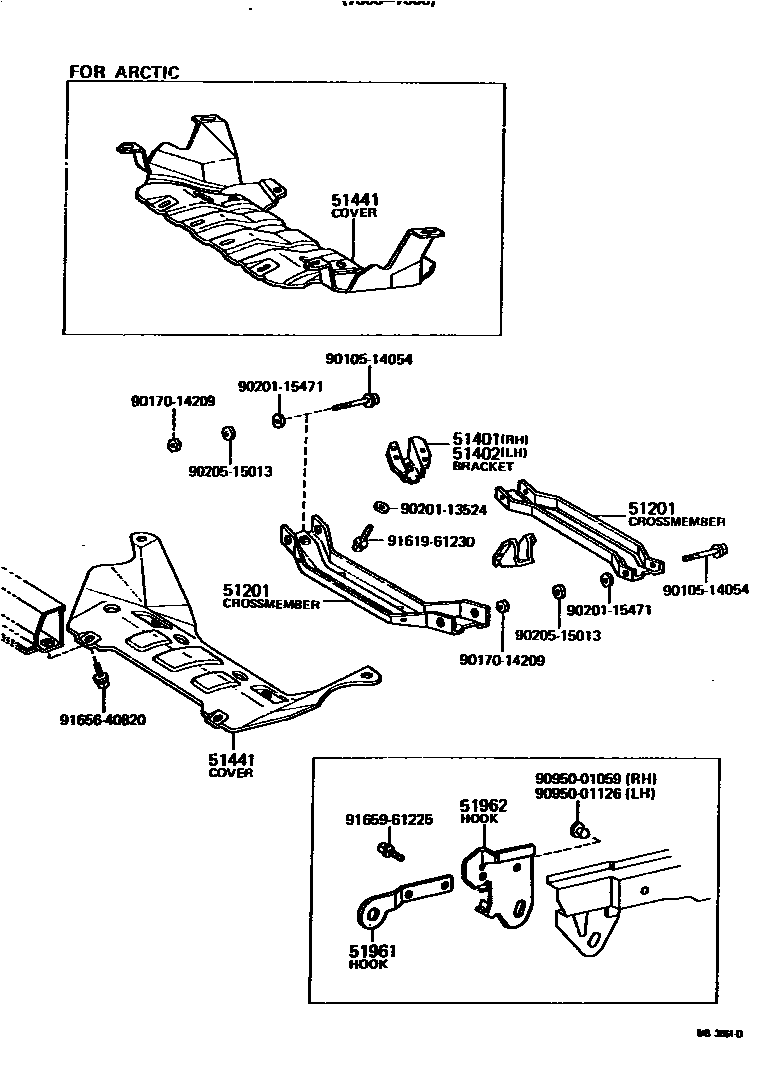

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51222-20010iRT10#,11#197308-197808

FOR FRONT

main51223-20010iRT10#,11#197308-197808

FOR REAR

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-20060iRT104,11#197308-197408

main51401-20110iRT105,11#197408-197808

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51401-20060iRT104,11#197308-197408

main51401-20110iRT105,11#197408-197808

51441COVER, ENGINE UNDER, NO.1

main51224-20010iRT10#,11#197308-197511

FOR ARCTIC

main51441-20050iRT10#,11#197308-197808

51961HOOK, NO.1

main51961-20030×2iRT104,11#197308-197408

51962HOOK, NO.2

main51963-20030iRT10#,11#197308-197808

RH.

main51964-20030iRT10#,11#197308-197808

LH.

9010514054

main90105-14054

9017014209

main90170-14209

9020113524

main90201-13524

9020115471

main90201-15471

9020515013

main90205-15013

9095001059

main90950-01059

9095001126

main90950-01126

9161961230

main91619-61230

9165640820

main91656-40820

9165961225

main91659-61225

16 parts on this diagram · 1 diagram in section
