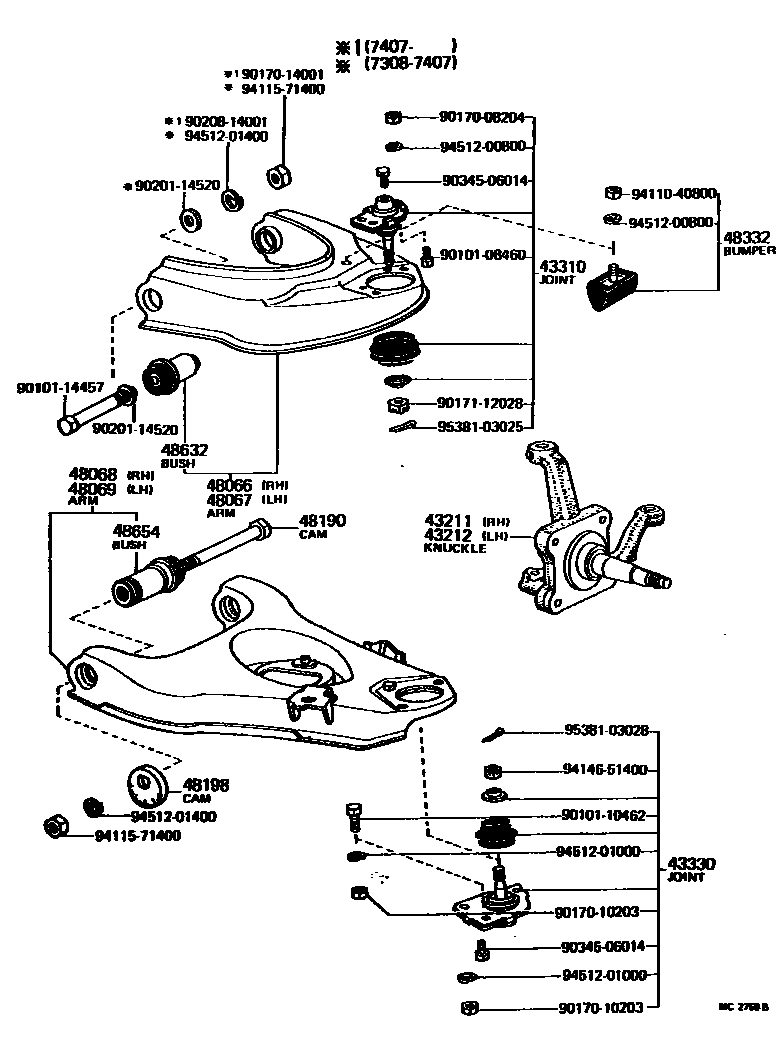

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-20020iRT118..4F;RT104..3FC..STD197311-197408

main43211-20030iRT118..4F;RT104..3FC..STD197308-197808

43212KNUCKLE, STEERING, LH

main43212-20010iRT118..4F;RT104..3FC..STD197311-197408

main43212-20020iRT118..4F;RT104..3FC..STD197308-197808

43310JOINT ASSY, UPPER BALL

main43360-29035iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29055iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

RH.

main43330-29056iRT119..3HC;RT105..3FC..4D197509-197808

RH.

main43340-29025iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

LH.

main43340-29026iRT119..3HC;RT105..3FC..4D197509-197808

LH.

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main48068-20080iRT119..3HC197608-197808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main48069-20080iRT119..3HC197608-197808

48190CAM ASSY, CAMBER ADJUST

main48190-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

48198CAM, CAMBER ADJUST, NO.2

main48198-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

48332BUMPER, FRONT SPRING, NO.2

main48332-29025iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

48632BUSH, UPPER ARM

main48091-20021iRT119..3HC;RT105..3FC..4D197508-197808

main48630-20020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197508

48654BUSH, LOWER ARM

main48061-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197608

main48061-20030iRT119..3HC197608-197808

9010108460

main90101-08460

9010110462

main90101-10462

9010114457

main90101-14457

9017008204

main90170-08204

9017010203

main90170-10203

9017014001

main90170-14001

9017112028

main90171-12028

9020114520

main90201-14520

9020814001

main90208-14001

9034506014

main90345-06014

9411040800

main94110-40800

9411571400

main94115-71400

9414651400

main94146-51400

9451200800

main94512-00800

9451201000

main94512-01000

9451201400

main94512-01400

9538103025

main95381-03025

9538103028

main95381-03028

31 parts on this diagram · 1 diagram in section
