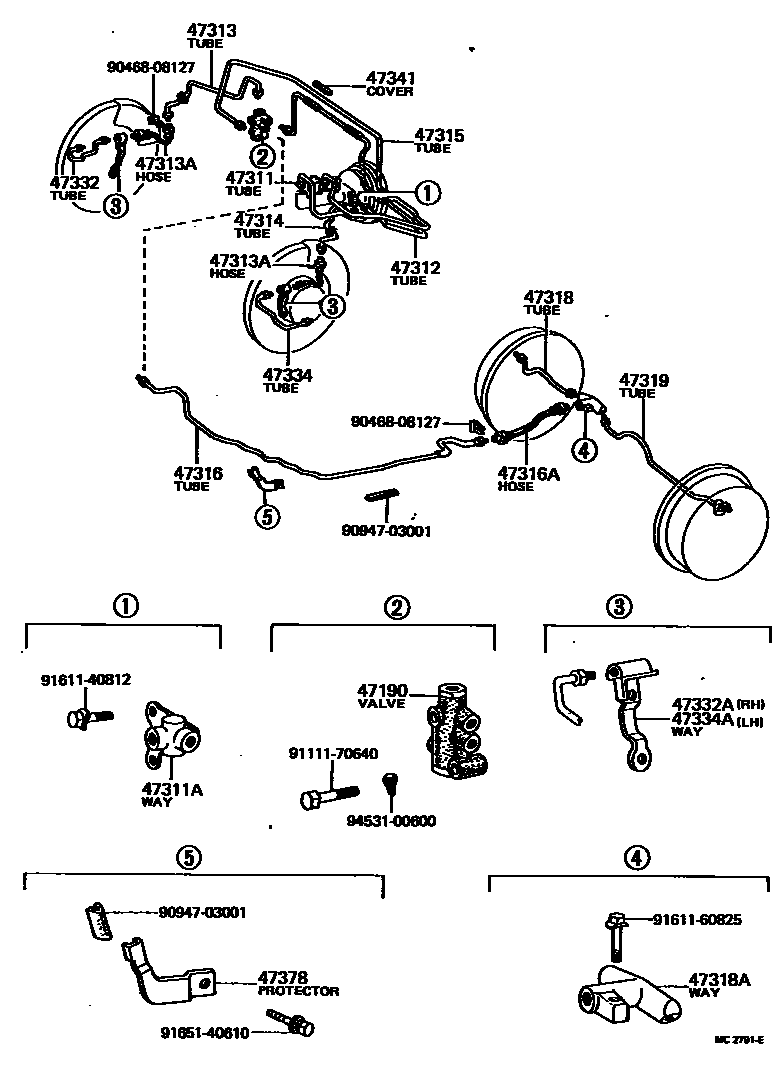

BRAKE TUBE & CLAMP

0001 1 0003 1

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-20010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197601

47311TUBE, FRONT BRAKE, NO.1

main47311-20260iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10134iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

47312TUBE, FRONT BRAKE, NO.2

main47315-20150iRT118..4F;RT104..3FC..STD197308-197408

main47315-20230iRT105..3FC..4D197408-197601

main47315-20231iRT119..3HC;RT105..3FC..4D197601-197608

47313TUBE, FRONT BRAKE, NO.3

main47313-20080iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197601

main47313-20120iRT119..3HC;RT105..3FC..4D197601-197608

main47313-20130iRT119..3HC197708-197808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02210×2iRT118..4F;RT104..3FC..STD197308-197408

L=355

main90947-02261×2iRT119..3HC;RT105..3FC..4D197408-197808

L=355

47314TUBE, FRONT BRAKE, NO.4

main47314-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

47315TUBE, FRONT BRAKE, NO.5

main47315-20170iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197601

main47315-20260iRT119..3HC;RT105..3FC..4D197601-197608

TANDEM

47316TUBE, FRONT BRAKE, NO.6

main47316-20210iRT118..4F;RT104..3FC..STD197308-197408

main47316-20250iRT105..3FC..4D197408-197509

main47316-20290iRT119..3HC197608-197701

main47316-20291iRT119..3HC197701-197808

main47316-20340iRT119..3HC;RT105..3FC..4D197601-197608

main47316-21160iRT118..4F;RT104..3FC..STD197308-197408

main47316-21210iRT105..3FC..4D197408-197509

main47316-21230iRT119..3HC;RT105..3FC..4D197601-197608

main47316-21250iRT105..3FC..4D197509-197601

main47316-21251iRT119..3HC197701-197808

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02215iRT118..4F;RT104..3FC..STD197404-197408

L=390

main90947-02262iRT119..3HC;RT105..3FC..4D197408-197808

L=390

main96910-31381iRT118..4F;RT104..3FC..STD197308-197404

L=380

47318TUBE, FRONT BRAKE, NO.8

main47318-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main47318-20121iRT119..3HC197701-197808

main47318-21040iRT119..3HC;RT105..3FC..4D197509-197701

main47318-21041iRT119..3HC197701-197808

main47318-23020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

47318AWAY(FOR REAR RH BRAKE TUBE)

main90413-10016iRT119..3HC;RT105..3FC..4D197509-197808

main90413-10103iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main90413-10120iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

47319TUBE, FRONT BRAKE, NO.9

main47319-20070iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main47319-20121iRT119..3HC197701-197808

main47319-21040iRT119..3HC;RT105..3FC..4D197509-197701

main47319-21041iRT119..3HC197701-197808

main47319-23020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

47332TUBE, REAR BRAKE, NO.11

main47332-20070iRT118..4F;RT104..3FC..STD197308-197408

47332AWAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)

main90412-10067iRT118..4F;RT104..3FC..STD197308-197408

47334TUBE, REAR BRAKE, NO.13

main47334-20070iRT118..4F;RT104..3FC..STD197308-197408

47334AWAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)

main90412-10068iRT118..4F;RT104..3FC..STD197308-197408

47341COVER, TUBE

main47341-20010×4iRT118..4F197308-197311

main90480-07454×4iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197311-197808

47378PROTECTOR, BRAKE TUBE

main47377-20010iRT119..3HC;RT105..3FC..4D197511-197701

9046808127

main90468-08127

9094703001

main90947-03001

9111170640

main91111-70640

9161140812

main91611-40812

9161160825

main91611-60825

9165140610

main91651-40610

9453100600

main94531-00600

26 parts on this diagram · 2 diagrams in section
