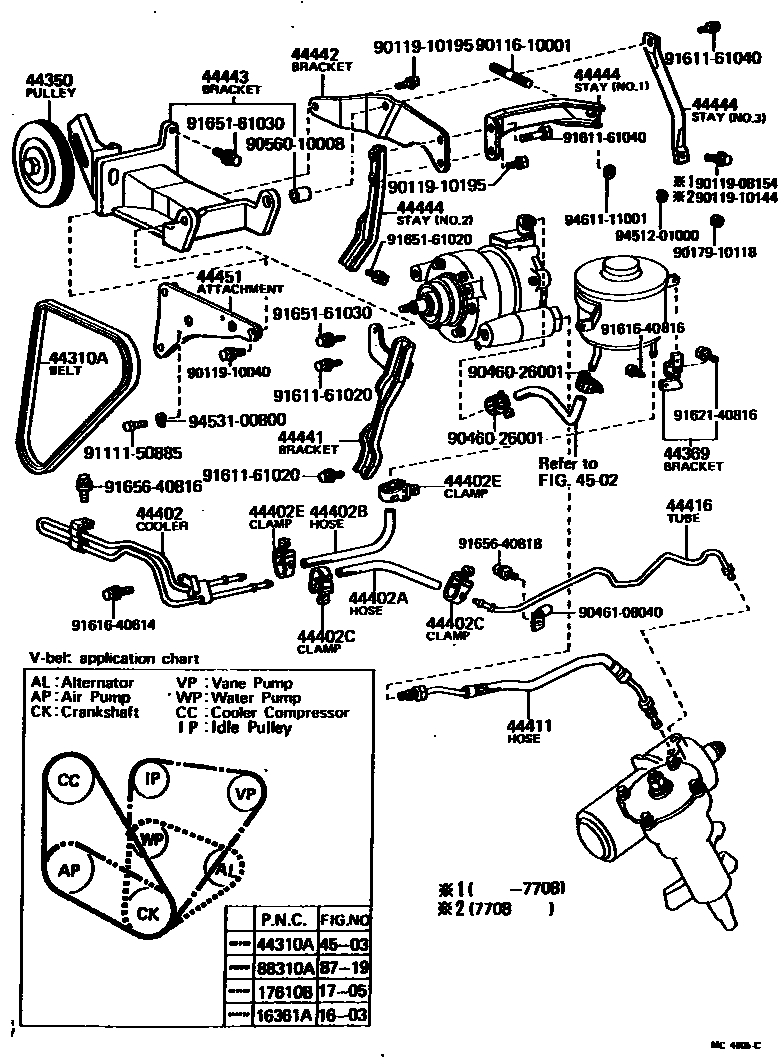

POWER STEERING TUBE
1603RADIATOR & WATER OUTLET
16361ABELT, V(FOR FAN & ALTERNATOR)
L=869
L=885 12V 55A ALTERNATOR
L=870
L=843
1705AIR PUMP
17610BBELT, V(FOR AIR PUMP)
L=866
L=865
44310ABELT, V(FOR VANE PUMP)
44350PULLEY ASSY, POWER STEERING IDLE
44369BRACKET, OIL RESERVOIR, NO.1
44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402AHOSE, POWER STEERING OIL COOLER INLET
44402BHOSE, POWER STEERING OIL COOLER OUTLET
44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE
44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE
44411HOSE, PRESSURE FEED
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44441BRACKET, PUMP, FRONT
44442BRACKET, PUMP, REAR
44443BRACKET, PUMP
44444STAY, PUMP, REAR
NO.1
NO.2
NO.2
NO.3
NO.3
44451ATTACHMENT, TIMING CHAIN COVER
4502VANE PUMP & RESERVOIR (POWER STEERING)
4503POWER STEERING TUBE
8719HEATING & AIR CONDITIONING - COMPRESSOR
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
9011610001
main90116-10001
9011908154
main90119-08154
9011910040
main90119-10040
9011910144
main90119-10144
9011910195
main90119-10195
9017910118
main90179-10118
9046026001
main90460-26001
9046108040
main90461-08040
9056010008
main90560-10008
9111150885
main91111-50885
9161161020
main91611-61020
9161161040
main91611-61040
9161640614
main91616-40614
9161640816
main91616-40816
9162140816
main91621-40816
9165161020
main91651-61020
9165161030
main91651-61030
9165640816
main91656-40816
9165640818
main91656-40818
9451201000
main94512-01000
9453100800
main94531-00800
9461111001
main94611-11001
45 parts on this diagram · 1 diagram in section
