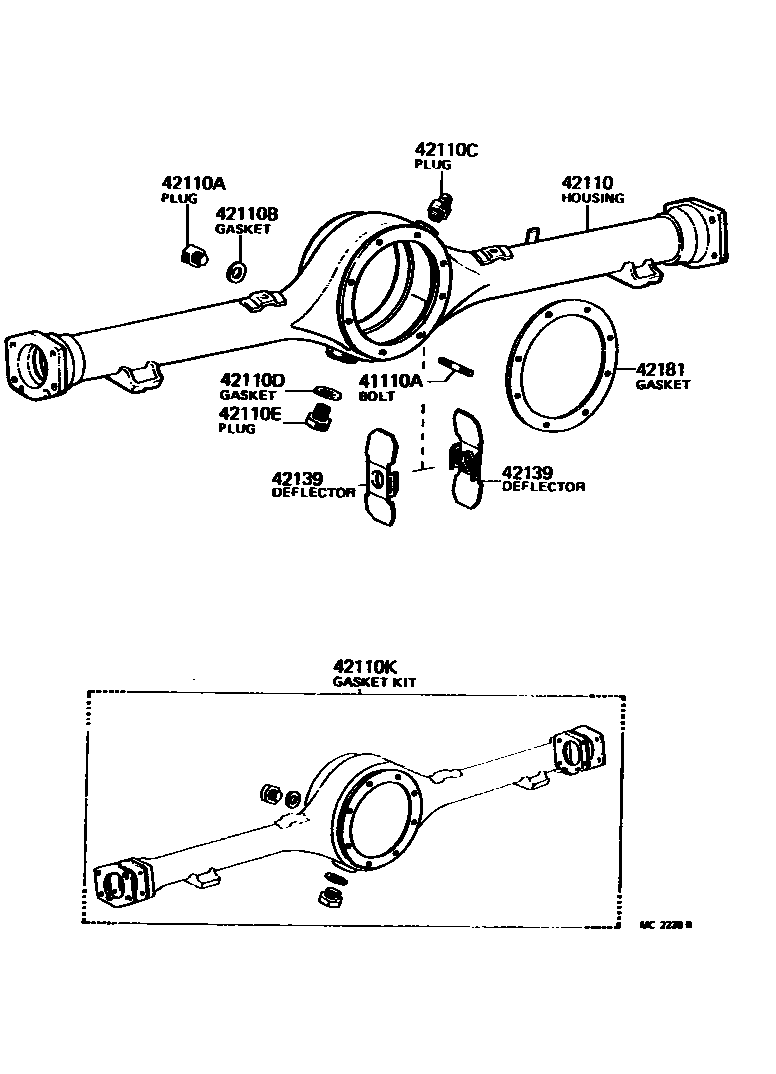

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0005 1

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-20180iRT118..4F;RT104..3FC..STD197308-197408

R=41:10=4.100

sub41110-20181

sub90116-08236

main41110-20190iRT105..3FC..4D197408-197509

R=41:11=3.727

sub41110-20191

sub90116-08236

main41110-20200iRT118..4F;RT104..3FC..STD197308-197408

R=43:11=3.909

sub41110-20201

sub90116-08236

main41110-20240iRT118..4F;RT104..3FC..STD197308-197401

R=37:9=4.111

main41110-20241iRT118..4F;RT104..3FC..STD197401-197408

*FGR=41:10=4.100,R=41:10=4.100

main41110-20250iRT118..4F;RT104..3FC..STD197308-197401

R=39:10=3.900

main41110-20251iRT118..4F;RT104..3FC..STD197401-197408

*FGR=43:11=3.909,R=43:11=3.909

sub41110-22240

main41110-20280iRT119..3HC197608-197808

R=43:17=3.583,6.7IN.

sub41110-20281

sub90116-08236

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90116-08235×10iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

S=12 & 15,L=34,L=33,S=12&16

sub90116-08418

42110HOUSING ASSY, REAR AXLE

main42110-20080iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

sub47318-20121

sub47319-20121

sub90461-06041

sub91611-40614

main42110-20081iRT119..3HC197701-197808

main42110-21040iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

sub42110-23020

main42110-21050iRT119..3HC;RT105..3FC..4D197509-197701

sub47318-20121

sub47319-20121

sub90461-06041

sub91611-40614

main42110-21051iRT119..3HC197701-197808

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90341-18049iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main12157-10010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90930-03023iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main90930-03031iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main12157-10010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90341-18057iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

42110KGASKET KIT, DIFFERENTIAL CARRIER

main04412-22050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main04412-22060iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

42139DEFLECTOR, REAR AXLE HOUSING OIL

main42139-20030×2iRT119..3HC;RT105..3FC..4D197603-197808

42181GASKET, REAR DIFFERENTIAL CARRIER

main42181-22010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main42181-30010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

11 parts on this diagram · 4 diagrams in section
