PROPELLER SHAFT & UNIVERSAL JOINT

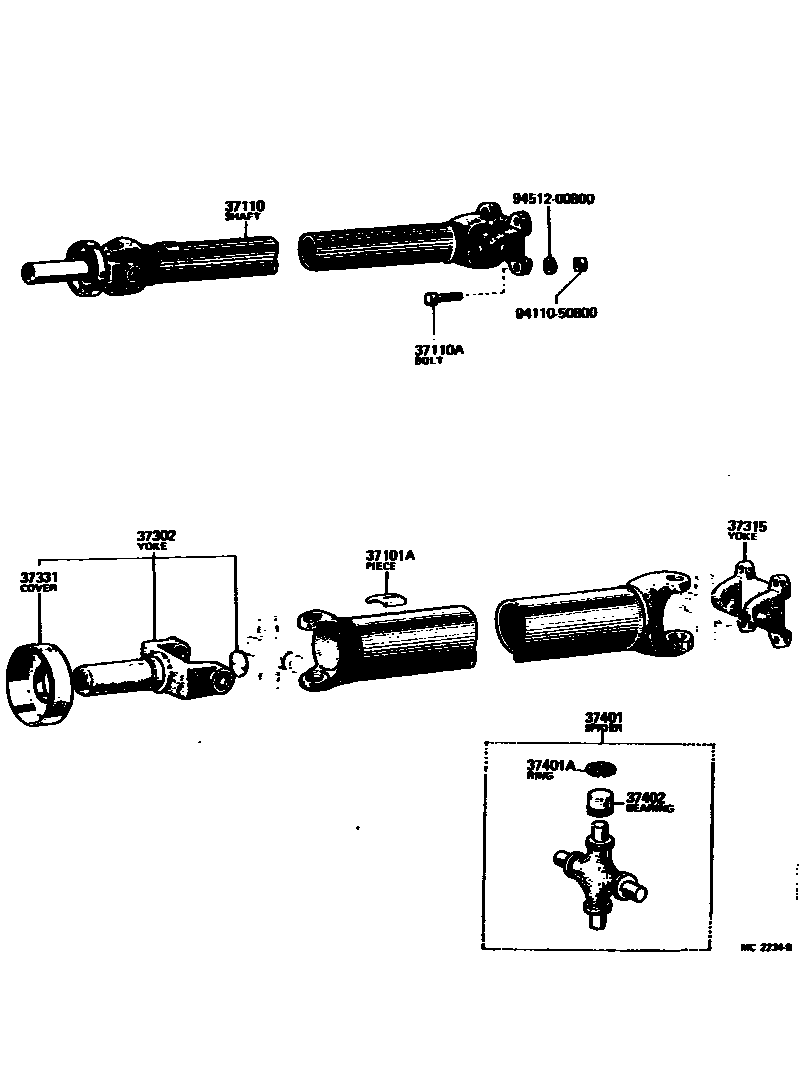

Parts diagram
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
main90937-01132×2i197308-197408
10G,L=20.7,10G.
main90937-01136×2i197308-197408
20G,L=41.4,20G.
main90937-01140×2i197308-197408
30G,L=62.2,30G.
main90937-01147×2i197308-197408
2G,T=2.0,2G.
main90937-01148×2i197308-197408
4G,T=2.0,4G.
main90937-01149×2i197308-197408
6G,L=12.4,6G.
main90937-01150×2i197308-197408
8G,L=16.6,8G.
main90937-01151×2i197308-197408
12G,L=24.9,12G.
main90937-01152×2i197308-197408
14G,L=29.0,14G.
main90937-01153×2i197308-197408
16G,L=33.2,16G.
main90937-01154×2i197308-197408
18G,L=37.3,18G.
main90937-01155×2i197308-197408
22G,L=45.6,22G.
main90937-01156×2i197308-197408
24G,L=49.7,24G.
main90937-01157×2i197308-197408
26G,L=53.9,26G.
main90937-01158×2i197308-197408
28G,L=58.1,28G.
37110SHAFT ASSY, PROPELLER
main37110-20110i197308-197311
L=1371,OD=75
main37110-20160i197408-197509
L=764.5,OD=65
main37110-20170i197408-197509
L=747.5,OD=65
main37110-20180i197311-197408
L=1371,OD=65
main37110-20190i197608-197808
main37110-21010i197308-197408
L=1354,OD=75
37110ABOLT (FOR PROPELLER SHAFT)
main90101-08214×8i197308-197808
*8-1.25PX25-12
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
main37302-20040i197308-197408
37315YOKE, UNIVERSAL JOINT FLANGE
main37315-20020i197308-197408
37331COVER, SLIDING SHAFT DUST
main37331-30010i197308-197408
37401SPIDER KIT, UNIVERSAL JOINT
main04371-22010×3i197308-197808
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
main90521-29070×8i197308-197808
T=2.375-2.425,T=2.375-2.425
main90521-29071×8i197308-197808
T=2.425-2.475,T=2.425-2.475
main90521-29072×8i197308-197808
T=2.475-2.525,T=2.475-2.525
main90521-29073×8i197308-197808
T=2.525-2.575,T=2.525-2.575
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
main37402-22020×12i197308-197808
OD=26.036-26.049
9411050800
main94110-50800
9451200800
main94512-00800

11 parts on this diagram · 2 diagrams in section
