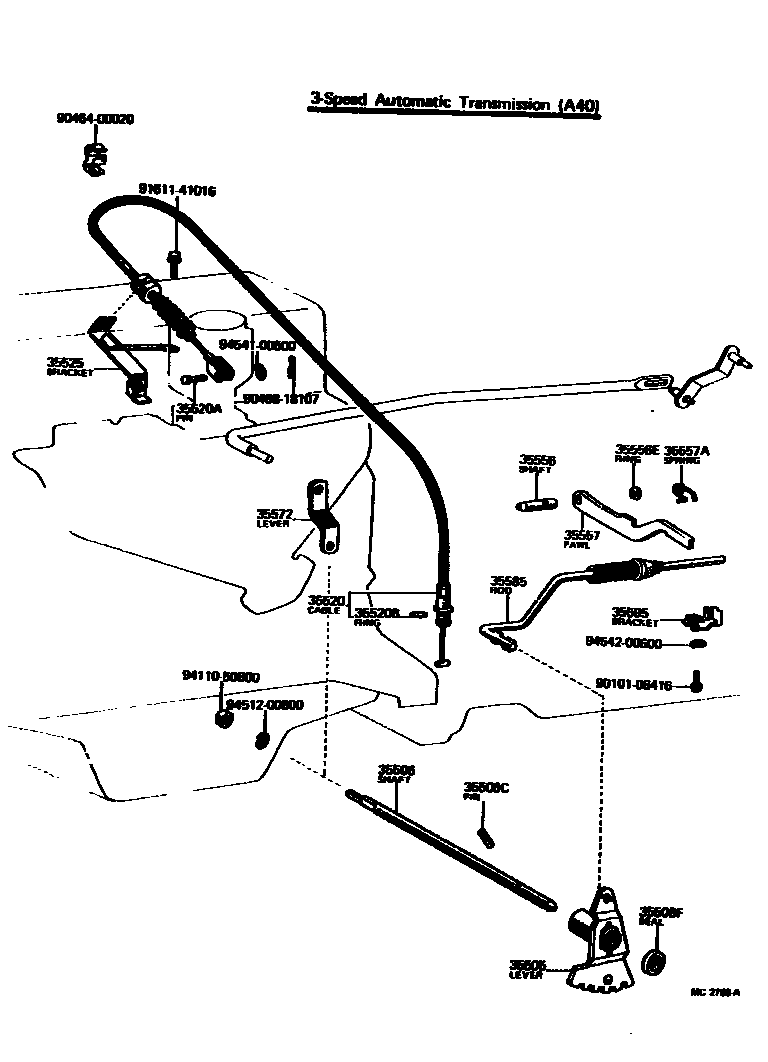

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-20020iRT118..4F197308-197309

main35561-20021iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197309-197808

main35561-22020iRT119..3HC197605-197808

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-03004iRT105,11#..ATM197803-197808

L=19.9

main90254-03044iRT10#,11#..ATM197308-197803

L=18

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11128×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35520CABLE ASSY, THROTTLE

main35520-20030iRT118..4F;RT104..3FC..STD197308-197408

main35520-20043iRT105..3FC..4D197408-197410

main35520-20044iRT119..3HC;RT105..3FC..4D197410-197804

main35520-20060iRT119..3HC197804-197808

35520APIN, THROTTLE CABLE

main90240-05139iRT118..4F;RT104..3FC..STD197308-197408

35520BRING, O(FOR THROTTLE CABLE)

main90301-09063iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35525BRACKET, THROTTLE CABLE

main35525-20042iRT119..3HC;RT105..3FC..4D197408-197808

main35525-22011iRT118..4F;RT104..3FC..STD197308-197408

35556SHAFT, PARKING LOCK PAWL

main35556-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35557PAWL, PARKING LOCK

main35557-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25329iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-20060iRT118..4F;RT104..3FC..STD197308-197408

main35572-20080iRT119..3HC197605-197808

main35572-22040iRT119..3HC;RT105..3FC..4D197408-197808

35585ROD, PARKING LOCK

main35501-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

35595BRACKET, PARKING LOCK PAWL

main35595-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9010106416

main90101-06416

9046400020

main90464-00020

9046818107

main90468-18107

9161141016

main91611-41016

9411050800

main94110-50800

9451200800

main94512-00800

9454100500

main94541-00500

9454200600

main94542-00600

23 parts on this diagram · 2 diagrams in section
