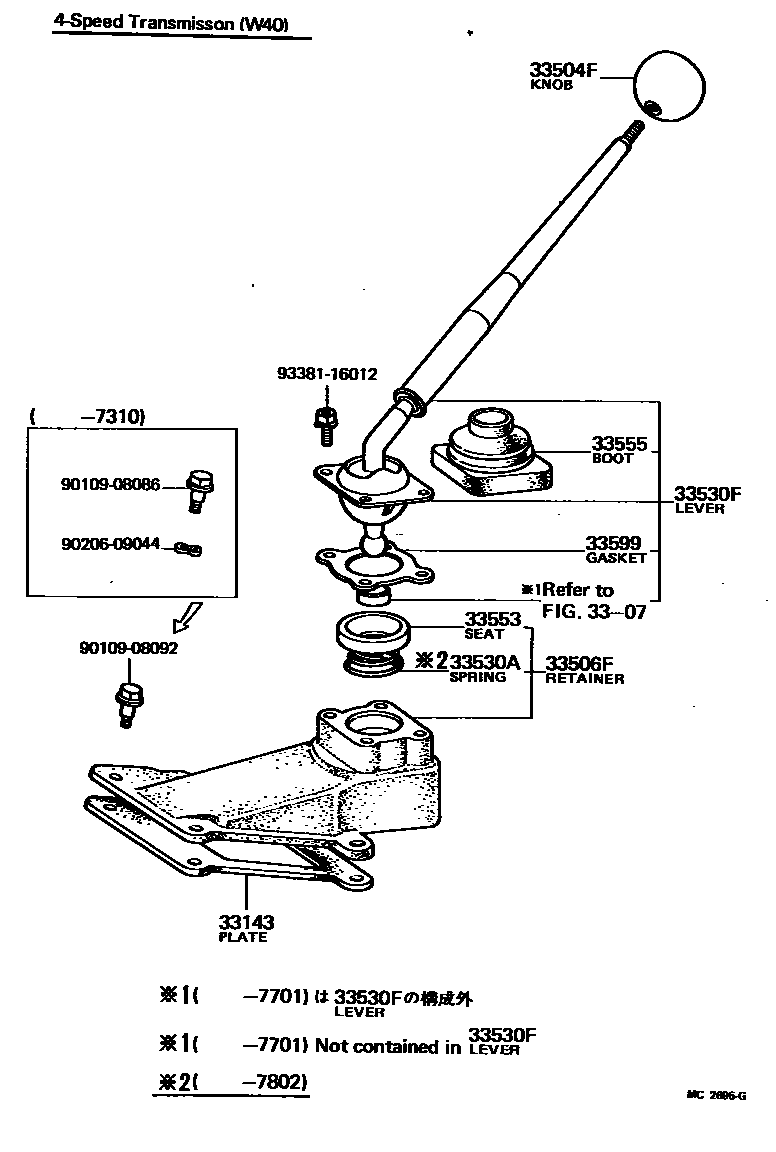

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197510

main33504-14031iRT119..3HC;RT105..3FC..4D197510-197701

main33504-20050iRT105..3FC..4D197508-197510

FOR SOFT PAD WHEEL

main33504-20051iRT105..3FC..4D197510-197601

FOR SOFT PAD WHEEL

main33504-20052iRT119..3HC197701-197808

URETAHANE

main33504-20060iRT118..4F;RT104..3FC..STD197308-197408

main33504-20061iRT105..3FC..4D197510-197601

FOR SOFT PAD WHEEL

main33504-20062iRT119..3HC197701-197808

URETAHANE

main33504-22040iRT118..4F;RT104..3FC..STD197308-197403

main33504-22041iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197403-197701

main33504-22100iRT119..3HC197701-197808

main33504-22110iRT119..3HC197701-197808

main33504-31010iRT105..3FC..4D197408-197506

main33504-31011iRT119..3HC;RT105..3FC..4D197510-197701

main33542-30120-01iRT119..3HC197701-197808

BLACK,BLACK

main33542-30120-05iRT119..3HC197701-197808

BEIGE,BEIGE

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-20010iRT118..4F197308-197310

main33570-20011iRT118..4F;RT104..3FC..STD197310-197402

main33570-21010iRT118..4F;RT104..3FC..STD197402-197406

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90502-18057iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197802

WD=1.8,CW=2

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-20110iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main33503-20111iRT119..3HC197701-197808

main33530-20140iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197510

main33530-20141iRT119..3HC;RT105..3FC..4D197510-197808

main33530-20160iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197510

main33530-20161iRT119..3HC;RT105..3FC..4D197510-197701

main33530-20162iRT119..3HC197701-197808

33553SEAT, SHIFT LEVER SPRING

main33556-20010iRT119..3HC;RT105..3FC..4D197507-197701

FOR NOISE COUNTERMEASURE

main33556-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33555BOOT, SHIFT LEVER

main33555-20050iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main33555-31011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-31020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9010908086

main90109-08086

9010908092

main90109-08092

9020609044

main90206-09044

9338116012

main93381-16012

13 parts on this diagram · 5 diagrams in section
