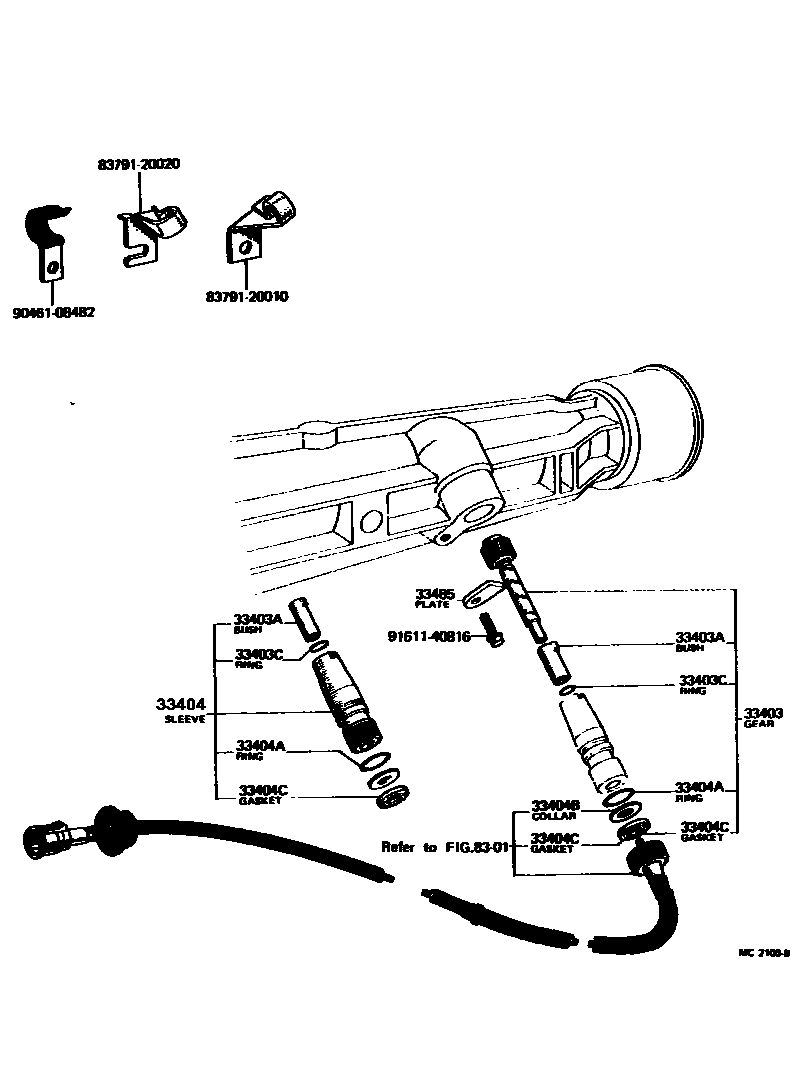

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29065iRT118..4F;RT104..3FC..STD197403-197408

N=20

main33403-69026iRT119..3HC;RT105..3FC..4D197308-197608

N=19

main33403-69065iRT119..3HC197408-197808

N=18,MARK 18:6,N=18

33403ABUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)

main90386-09078iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33403CRING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)

main90301-09010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-39016iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33404BCOLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)

main90201-07069iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33404CGASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)

main90303-06017iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

8301METER

→ Go to FIG 83-01

8379120010

main83791-20010

8379120020

main83791-20020

9046108482

main90461-08482

9161140816

main91611-40816

13 parts on this diagram · 1 diagram in section
