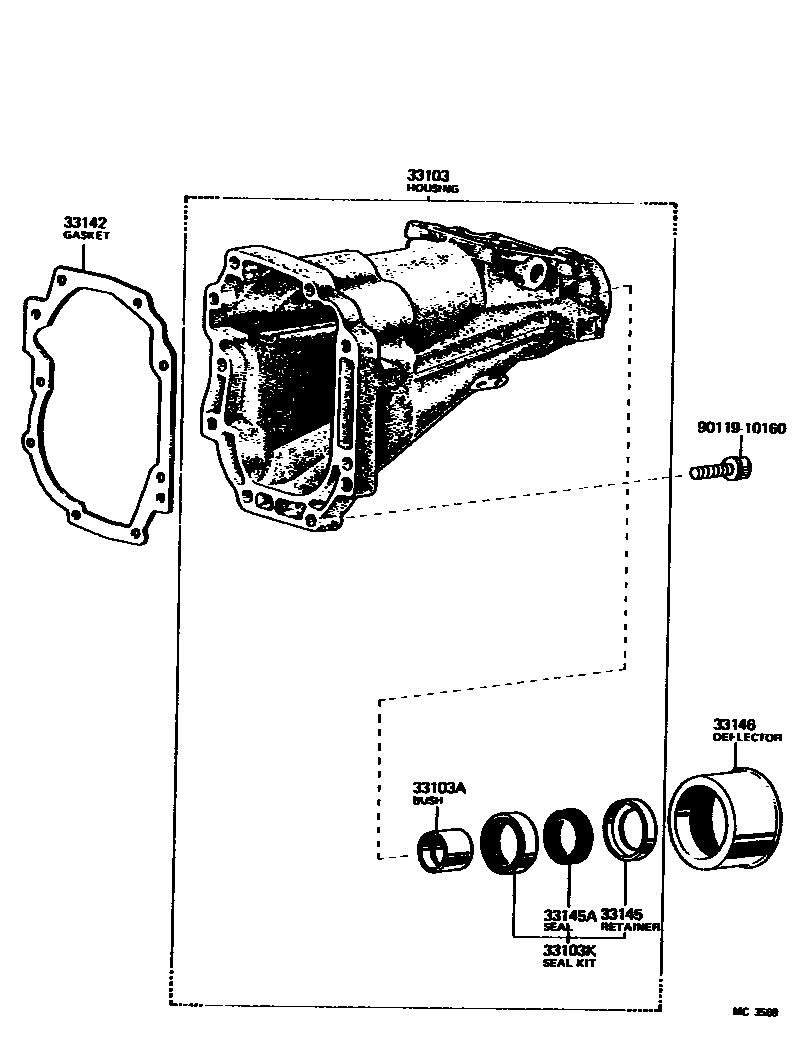

EXTENSION HOUSING (MTM)

0001 1 0002 1

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-20090iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main33103-20100iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-72012iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197410

main90999-72023iRT119..3HC;RT105..3FC..4D197410-197808

main90999-73062iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33103KSEAL KIT, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main04332-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33142GASKET, EXTENSION HOUSING(MTM)

main33142-20020iRT119..3HC;RT105..3FC..4D197510-197808

main33142-31010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197510

33145RETAINER, EXTENSION HOUSING DUST SEAL(MTM)

main33145-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33145ASEAL, DUST(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90303-38010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9011910160

main90119-10160

8 parts on this diagram · 2 diagrams in section
