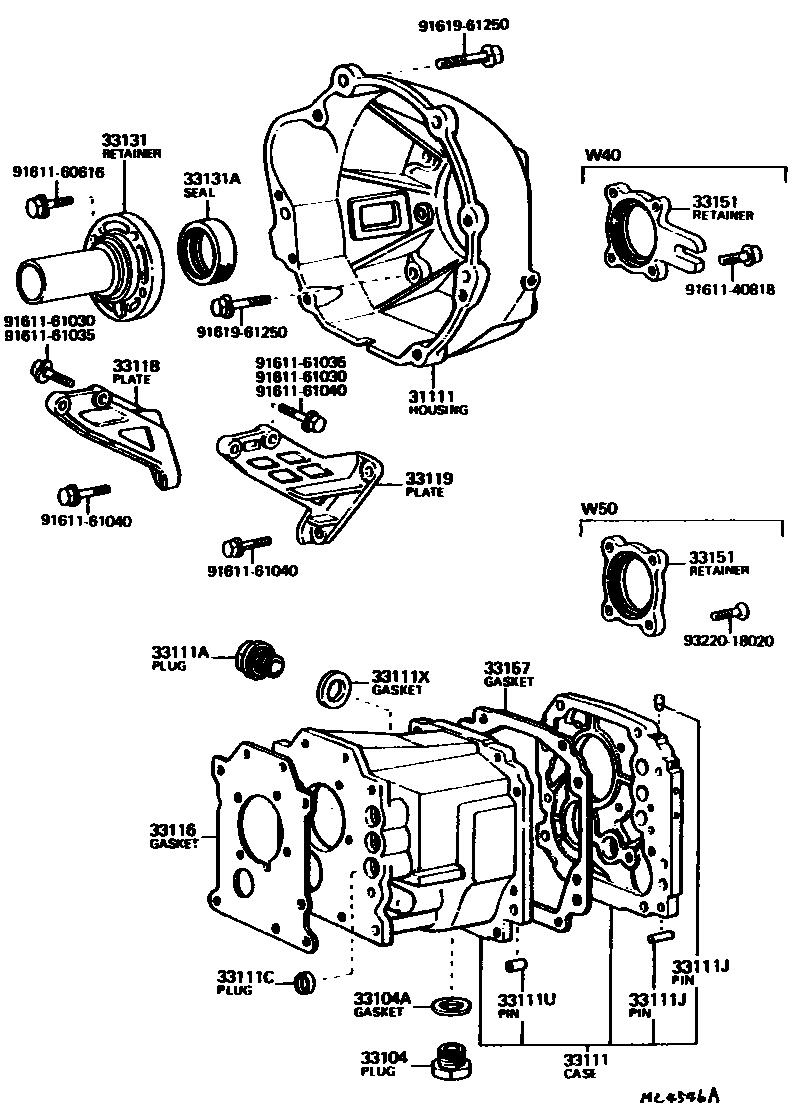

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-20050iRT118..4F;RT104..3FC..STD197308-197408

main31111-20090iRT119..3HC;RT105..3FC..4D197408-197808

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33104AGASKET, DRAIN PLUG(MTM)

main12157-10010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33111CASE, MANUAL TRANSMISSION

main33101-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

sub33101-20011

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18002iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33111CPLUG(FOR TRANSMISSION CASE)

main90331-20044×3iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12195×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

OD=12,L=39

main90334-06017iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

OD=6,L=11

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-13017×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

L=12,OD=13

33111XGASKET, TRANSMISSION CASE PLUG

main12157-10010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33116GASKET, MANUAL TRANSMISSION CASE

main33132-20040iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33118PLATE, STIFFENER, RH(MTM)

main33118-20050iRT118..4F;RT104..3FC..STD197308-197408

main33118-22030iRT119..3HC;RT105..3FC..4D197408-197808

33119PLATE, STIFFENER, LH(MTM)

main33119-20050iRT118..4F;RT104..3FC..STD197308-197408

sub91611-61030

main33119-22020iRT119..3HC;RT105..3FC..4D197408-197807

main33119-22021iRT119..3HC197807-197808

sub33119-22022

33131RETAINER, BEARING, FRONT(MTM)

main33131-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30115iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

MHSB30 45 8XR-431

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

main33151-31010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

33157GASKET, TRANSMISSION CASE, NO.2

main33142-20020iRT119..3HC;RT105..3FC..4D197510-197808

main33142-31010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197510

9161140818

main91611-40818

9161160616

main91611-60616

9161161030

main91611-61030

9161161035

main91611-61035

9161161040

main91611-61040

9161961250

main91619-61250

9322018020

main93220-18020

23 parts on this diagram · 1 diagram in section
