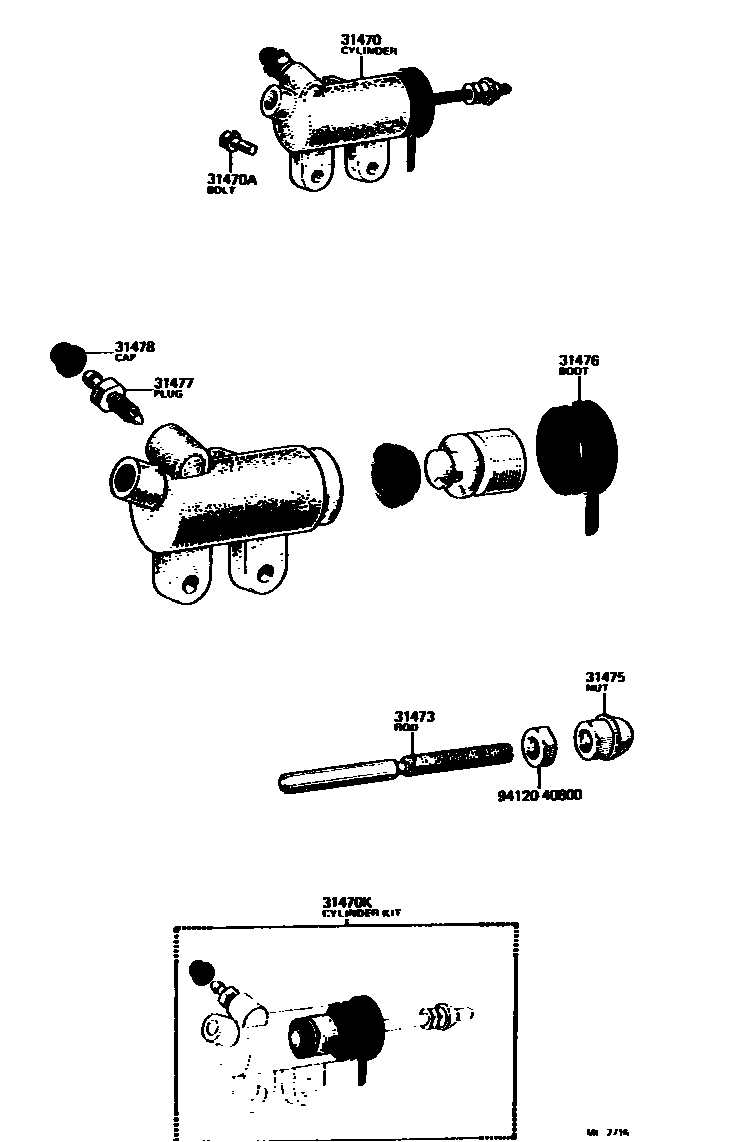

CLUTCH RELEASE CYLINDER

0001 1 0002 1

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20090iRT118..4F;RT104..3FC..STD197308-197408

main31470-20091iRT119..3HC;RT105..3FC..4D197408-197708

sub31470-26020

main31470-20130iRT119..3HC197708-197808

sub31470-20131

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-40825×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

*8-1.25PX25-25

sub91611-B0825

31470KCYLINDER KIT, CLUTCH RELEASE

main04313-30052iRT118..4F;RT104..3FC..STD197308-197408

main04313-30054iRT119..3HC;RT105..3FC..4D197408-197708

main04313-30100iRT119..3HC197708-197808

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30021iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197708

main31473-30050iRT119..3HC197708-197808

31475NUT, CLUTCH RELEASE CYLINDER PUSH ROD

main31475-30010iRT118..4F;RT104..3FC..STD197308-197404

main31475-30011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197404-197702

main31475-30020iRT119..3HC197702-197708

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-20040iRT119..3HC;RT105..3FC..4D197408-197708

main31476-30021iRT118..4F;RT104..3FC..STD197308-197408

main31476-30040iRT119..3HC197708-197808

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9412040800

main94120-40800

9 parts on this diagram · 2 diagrams in section
