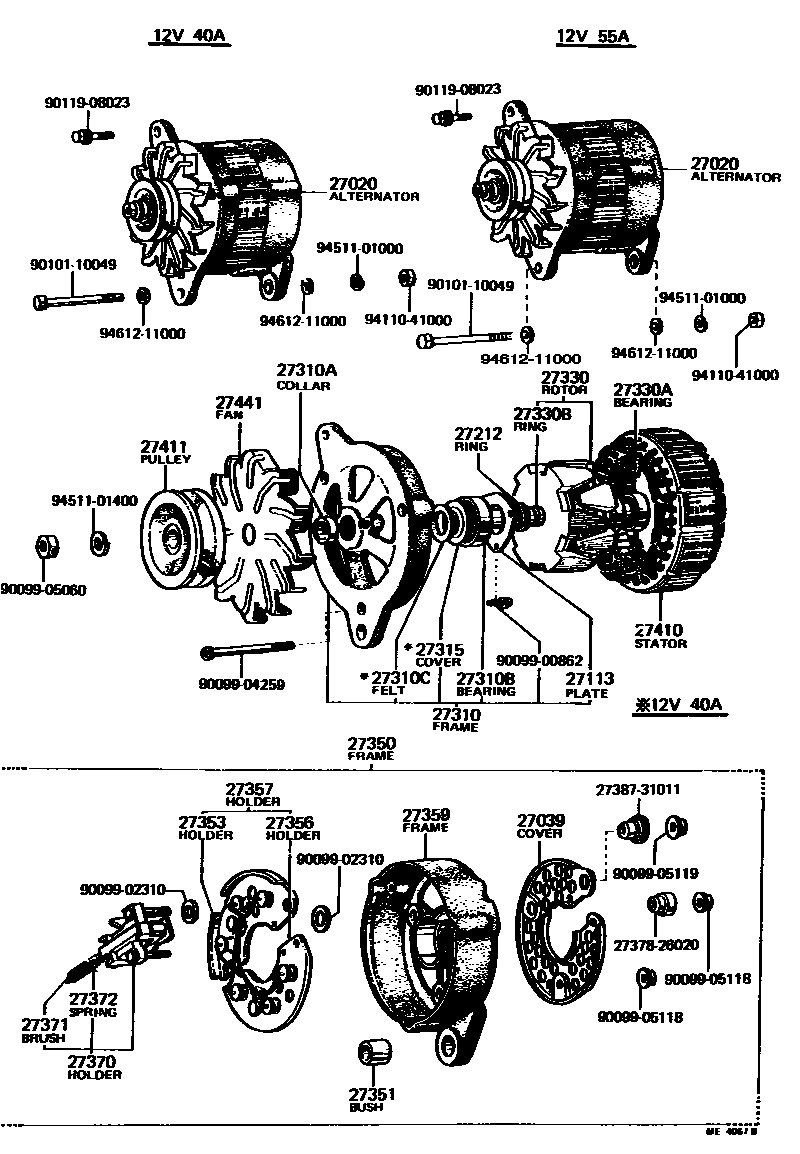

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0005 1

27020ALTERNATOR ASSY

main27020-34030i20R..RT105..3FC..4D197408-197504

12V 45A

main27020-34031i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

12V 45A

main27020-36021i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197401

12V 40A

main27020-36041i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 45A

main27020-38020i20R..RT105..3FC..4D197503-197504

12V 55A

main27020-38021i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

12V 55A

main27020-38040i20R..RT119..3HC197608-197610

12V 55A

main27020-38041i20R..RT119..3HC197610-197708

12V 55A

main27020-38050i20R..RT119..3HC197608-197610

12V 45A

main27020-38051i20R..RT119..3HC197610-197808

12V 45A

main27020-38061i20R..RT119..3HC197708-197808

12V 55A,W/O REGULATOR

27039COVER, ALTERNATOR REAR END

main27039-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27039-34031i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

12V 45A

main27039-38040i20R..RT119..3HC197608-197708

12V 55A

main27039-38050i20R..RT119..3HC197608-197808

12V 45A

main27039-45021i20R..RT105..3FC..4D197408-197504

12V 45A

main27039-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197608

12V 55A

main27039-45110i20R..RT119..3HC197708-197808

12V 55A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27312-31011i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

12V 40,45A

main27312-45010i20R..RT119..3HC;20R..RT105..3FC..4D197503-197808

12V 55A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i20R..RT119..3HC;20R..RT105..3FC..4D197504-197808

main27333-51020i20R..RT105..3FC..4D197503-197504

12V 55A

main27412-45070i20R..RT119..3HC197708-197808

12V 55A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31011i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27310-34030i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

12V 45A

main27310-38020i20R..RT119..3HC;20R..RT105..3FC..4D197503-197708

12V 55A

main27310-38050i20R..RT119..3HC197608-197808

12V 45A

main27310-38061i20R..RT119..3HC197708-197808

12V 55A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i20R..RT119..3HC197608-197808

12V 45A

main27412-45011i20R..RT105..3FC..4D197503-197504

12V 55A

main27412-45012i20R..RT119..3HC;20R..RT105..3FC..4D197504-197808

12V 55A

main90099-19075i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

12V 40,45A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10013i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

6203Z

main90099-10109i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

6203ZZ

main90099-10110i20R..RT119..3HC;20R..RT105..3FC..4D197503-197808

6303-2NSL2

main90099-10115i20R..RT119..3HC197608-197808

6203DDU8

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02004i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

12V 40,45A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-31011i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

12V 40,45A

27330ROTOR ASSY, ALTERNATOR

main27330-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197401

12V 40A

main27330-43012i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 45A

main27330-45020i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

12V 45A

main27330-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197708

12V 55A

main27330-45090i20R..RT119..3HC197708-197808

12V 55A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10103i20R..RT119..3HC;20R..RT105..3FC..4D197408-197702

6201ZZ

main90099-10116i20R..RT119..3HC197702-197808

6201VV8

main97110-06201i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

6201Z

27330BRING, SNAP(FOR ALTERNATOR ROTOR)

main90099-07048i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

27350FRAME ASSY, RECTIFIER END

main27350-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27350-34030i20R..RT105..3FC..4D197408-197504

12V 45A

main27350-34031i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

12V 45A

main27350-38040i20R..RT119..3HC197608-197610

12V 55A

main27350-38041i20R..RT119..3HC197610-197708

12V 55A

main27350-38050i20R..RT119..3HC197608-197610

12V 45A

main27350-38051i20R..RT119..3HC197610-197808

12V 45A

main27350-38061i20R..RT119..3HC197708-197808

12V 55A

main27350-45050i20R..RT105..3FC..4D197503-197504

12V 55A

main27350-45051i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

12V 55A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-25010i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197702

main27351-38051i20R..RT119..3HC197702-197808

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27353-38040i20R..RT119..3HC197608-197708

12V 55A

main27353-38050i20R..RT119..3HC197608-197808

12V 45A

main27353-38061i20R..RT119..3HC197708-197808

12V 55A

main27353-45020i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

12V 45A

main27353-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197608

12V 55A

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27356-38040i20R..RT119..3HC197608-197708

12V 55A

main27356-38050i20R..RT119..3HC197608-197808

12V 45A

main27356-45020i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

12V 45A

main27356-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197608

12V 55A

main27356-45100i20R..RT119..3HC197708-197808

12V 55A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27357-38040i20R..RT119..3HC197608-197808

12V 55A

main27357-38050i20R..RT119..3HC197608-197808

12V 45A

main27357-45020i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

12V 45A

main27357-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197608

12V 55A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27359-26050i20R..RT105..3FC..4D197408-197504

12V 45A

main27359-34011i20R..RT119..3HC;20R..RT105..3FC..4D197503-197608

12V 55A

main27359-38040i20R..RT119..3HC197608-197708

12V 55A

main27359-38050i20R..RT119..3HC197608-197808

12V 45A

main27359-44032i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

12V 45A

main27359-45110i20R..RT119..3HC197708-197804

12V 55A

main27359-45111i20R..RT119..3HC197804-197808

12V 55A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main27370-38040i20R..RT119..3HC197608-197610

main27370-38041i20R..RT119..3HC197610-197808

main27370-45020i20R..RT105..3FC..4D197408-197504

main27370-45061i20R..RT119..3HC;20R..RT105..3FC..4D197504-197608

27371BRUSH, ALTERNATOR

main27371-31011×2i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

27410STATOR ASSY, ALTERNATOR

main27410-26020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197401

12V 40A

main27410-26030i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 45A

main27410-34030i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

12V 45A

main27410-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197708

12V 55A

main27410-45080i20R..RT119..3HC197708-197808

12V 55A

27411PULLEY, ALTERNATOR

main27411-25010i20R..RT119..3HC;20R..RT105..3FC..4D197503-197708

12V 55A

main27411-31012i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197608

12V 40,45A

main27411-31042i20R..RT119..3HC197608-197808

12V 45A

27441FAN, ALTERNATOR

main27441-31011i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12V 40,45A

main27441-34030i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

12V 45A

main27441-45050i20R..RT119..3HC;20R..RT105..3FC..4D197503-197708

12V 55A

main27441-45110i20R..RT119..3HC197708-197808

12V 55A

2737826020INSULATOR, ALTERNATOR, NO.1

main27378-26020

2738731011INSULATOR, TERMINAL

main27387-31011

9009900862

main90099-00862

9009902310

main90099-02310

9009904259

main90099-04259

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110049

main90101-10049

9011908023

main90119-08023

9411041000

main94110-41000

9451101000

main94511-01000

9451101400

main94511-01400

9461211000

main94612-11000

38 parts on this diagram · 5 diagrams in section
