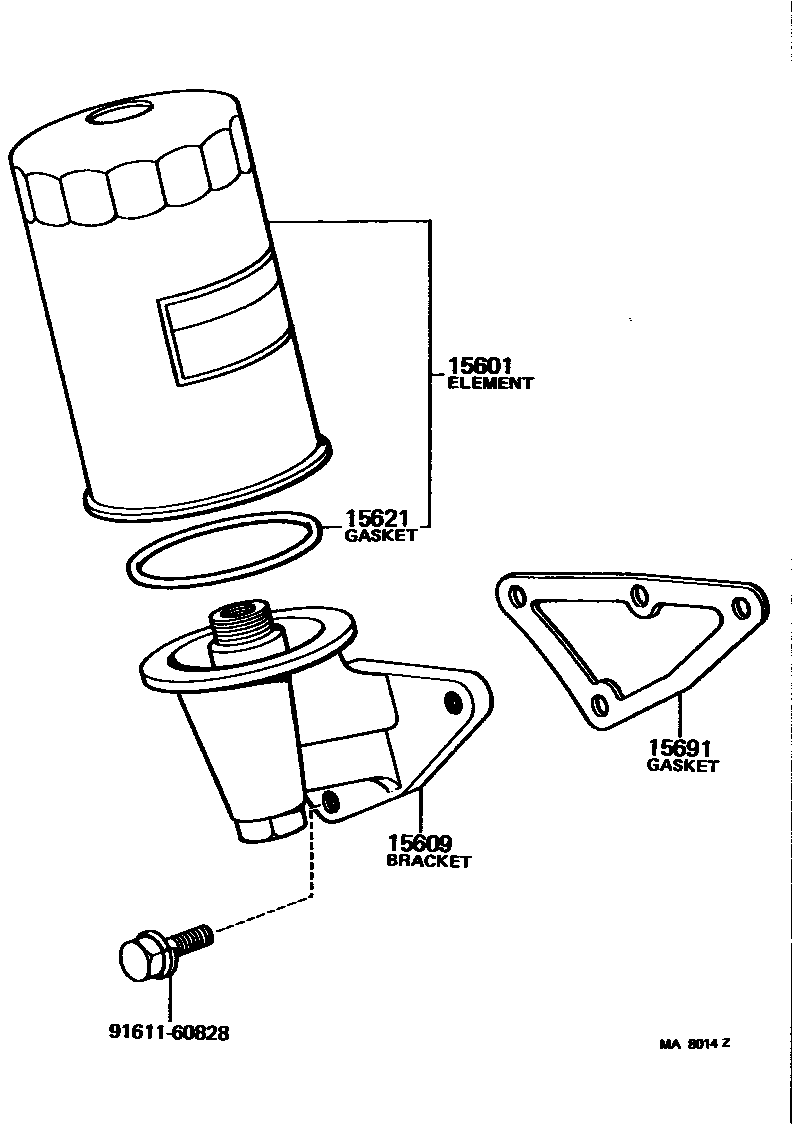

OIL FILTER

0001 1 0002 1

15601FILTER SUB-ASSY, OIL

main15601-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main15601-44010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197708

main15601-44011i20R..RT119..3HC197708-197808

15609BRACKET SUB-ASSY, OIL FILTER

main15609-33011i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

15621GASKET, OIL FILTER BODY

main15621-22010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main15621-41010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

15691GASKET, OIL FILTER

main15691-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

9161160828

main91611-60828

5 parts on this diagram · 2 diagrams in section
