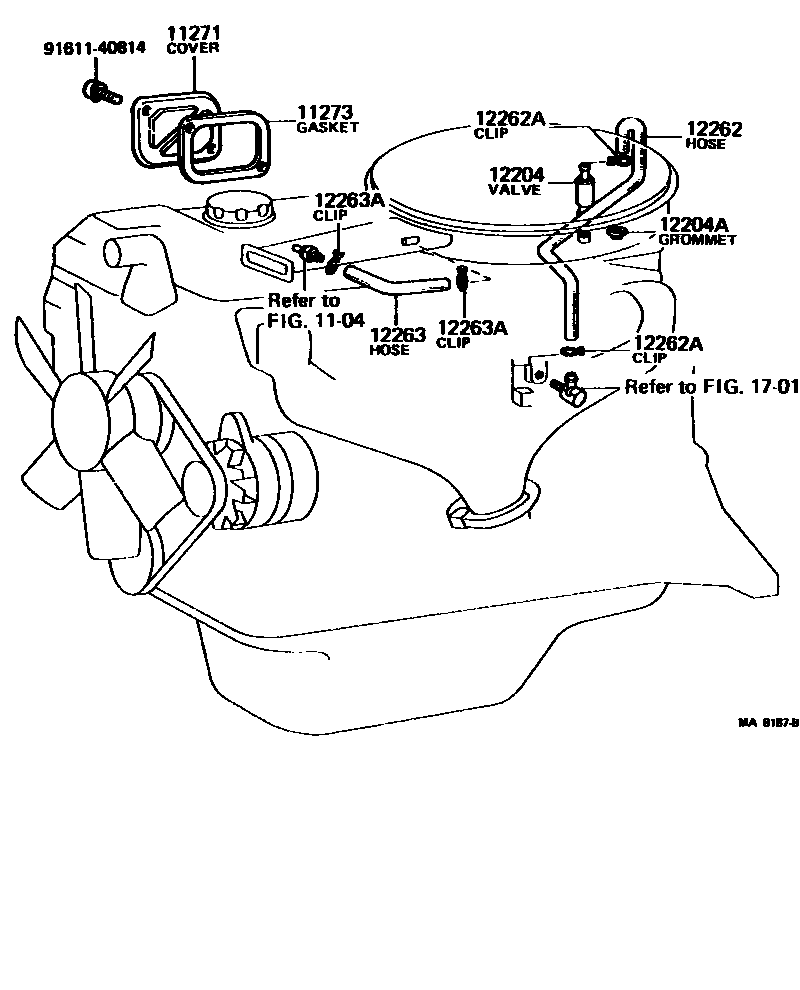

VENTILATION HOSE

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

11271COVER, CYLINDER BLOCK SIDE

main11271-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

11273GASKET, CYLINDER BLOCK SIDE COVER

main11273-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12204VALVE SUB-ASSY, VENTILATION

main12204-31020i20R..RT119..3HC197608-197808

main12204-34010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12204-51012i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18180i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main90480-18500i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

12262HOSE, VENTILATION, NO.2

main12261-33020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12261-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main12261-38011i20R..RT119..3HC197608-197808

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16010×2i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

ID=16

12263HOSE, VENTILATION, NO.3

main12262-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

main90910-05023i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12263ACLIP(FOR VENTILATION HOSE)

main90467-16010i20R..RT105..3FC..4D197408-197503

AIR CLEANER SIDE

main90467-20020i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

ID=19

1701MANIFOLD

→ Go to FIG 17-01

9161140814

main91611-40814

11 parts on this diagram · 2 diagrams in section
