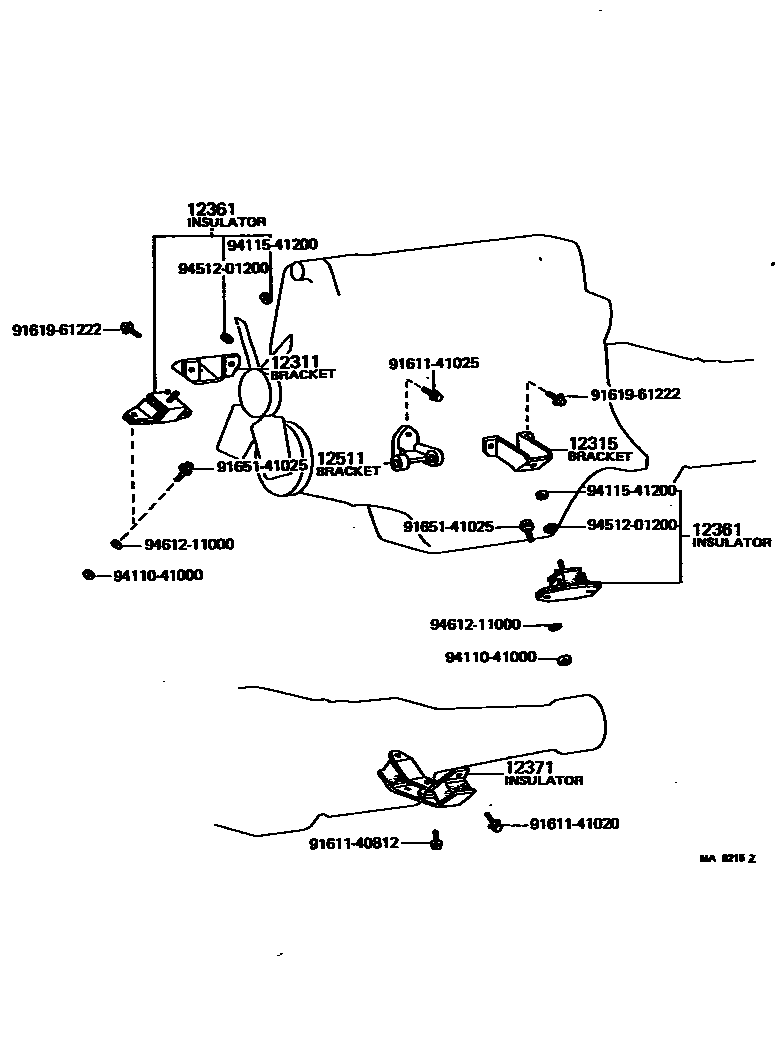

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-39015i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main12301-39025i20R..RT119..3HC197608-197808

main12311-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-39015i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main12302-39025i20R..RT119..3HC197608-197701

main12302-39026i20R..RT119..3HC197701-197702

main12302-39027i20R..RT119..3HC197702-197708

main12302-39028i20R..RT119..3HC197708-197808

main12315-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-39095i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

RH

main12361-39115×2i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main12361-39135×2i20R..RT119..3HC197608-197808

main12362-39035i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-34020i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12371-34030i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

12511BRACKET, ALTERNATOR, NO.1

main12511-33011i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12511-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197701

main12511-38020i20R..RT119..3HC197701-197702

main12511-38021i20R..RT119..3HC197702-197708

main12511-38022i20R..RT119..3HC197708-197808

9161140812

main91611-40812

9161141020

main91611-41020

9161141025

main91611-41025

9161961222

main91619-61222

9165141025

main91651-41025

9411041000

main94110-41000

9411541200

main94115-41200

9451201200

main94512-01200

9461211000

main94612-11000

14 parts on this diagram · 2 diagrams in section
