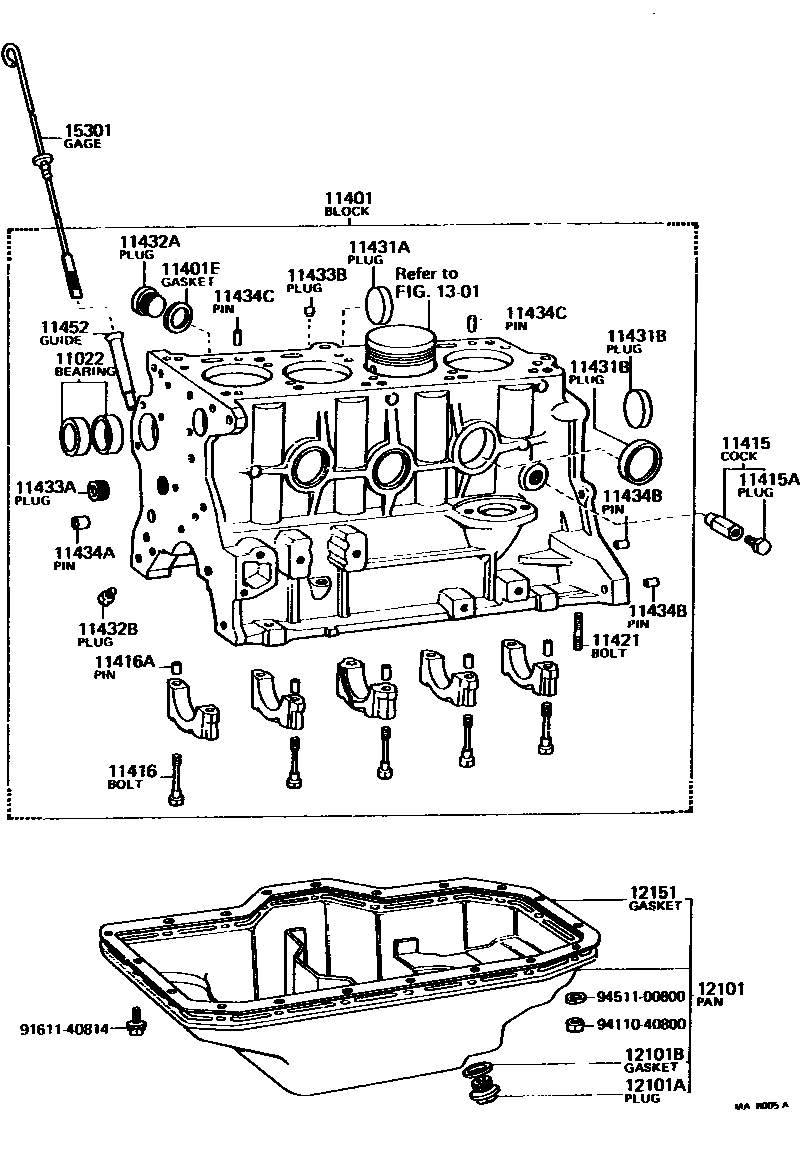

CYLINDER BLOCK

0001 1 0002 1

11022BEARING SET, PUMP DRIVE SHAFT

main11022-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

11401BLOCK SUB-ASSY, CYLINDER

main11401-39205i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main11401-39225i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main11401-39226i20R..RT119..3HC197608-197708

main11401-39255i20R..RT119..3HC197708-197808

11401EGASKET(FOR CYLINDER BLOCK PLUG)

main90430-32052i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-03833i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main96431-23814i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02042i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

12-1.25PX75-25

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-16014i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

11421BOLT, STUD(FOR OIL PAN)

main92122-40814i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

L=26,S=12&12

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main90331-45019i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197401

OD=45

main96411-44500i18RC..RT118..4F;18RC..RT104..3FC..STD197401-197408

OD=45

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-40024i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197401

OD=40

main96411-44000i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197401-197808

OD=40

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90341-32038i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main90344-53008i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90072-34107i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main90344-52013i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

11433APLUG, STRAIGHT, NO.1

main90344-53011i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

11433BPLUG, STRAIGHT, NO.2

main90334-09015i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

L=4,OD=9

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90253-11001i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

L=11,OD=11,L=11,OD=11

main90253-11021i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

L=8,OD=11,L=8,OD=11

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

L=22,OD=10,L=22,OD=10

main90253-17012i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

L=16,OD=17

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i18RC..RT118..4F;20R..RT119..3HC;20R..RT105..3FC..4D;18RC..RT104..3FC..STD197308-197808

L=18,OD=8,L=18,OD=8

11452GUIDE, OIL LEVEL GAGE

main11452-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197708

main11452-40010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main11452-41010i20R..RT119..3HC197708-197808

12101PAN SUB-ASSY, OIL

main12101-39095i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12101-39105i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12101-39115i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

main12101-39116i20R..RT119..3HC197608-197708

main12101-39125i20R..RT119..3HC;20R..RT105..3FC..4D197408-197608

W/OK MONITOR

main12101-39126i20R..RT119..3HC197608-197701

W/OK MONITOR

main12101-39195i20R..RT119..3HC197708-197801

main12101-39196i20R..RT119..3HC197801-197808

12101APLUG(FOR OIL PAN DRAIN)

main90341-18089i20R..RT119..3HC;20R..RT105..3FC..4D197504-197808

L/OK MONITOR,OD=18,P=1.5

main90341-18089i20R..RT105,11#197508-197808

18-1.5P

main90341-25054i20R,18RC..RT10#,11#197308-197504

OD=25,P=1.5

main90341-25054i20R..RT105..3FC..4D197504-197508

W/OK MONITOR,OD=25,P=1.5

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-18244i20R..RT105,11#197504-197508

W/OK MONITOR

main90430-18244i20R..RT119..3HC;20R..RT105..3FC..4D197508-197808

main90430-25013i20R,18RC..RT10#,11#197308-197504

main90430-25013i20R..RT105,11#197504-197508

W/OK MONITOR

12151GASKET, OIL PAN

main12151-33010i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main12151-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197808

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

15301GAGE SUB-ASSY, OIL LEVEL

main15301-33012i18RC..RT118..4F;18RC..RT104..3FC..STD197308-197408

main15301-38010i20R..RT119..3HC;20R..RT105..3FC..4D197408-197708

main15301-38030i20R..RT119..3HC197708-197808

9161140814

main91611-40814

9411040800

main94110-40800

9451100800

main94511-00800

27 parts on this diagram · 2 diagrams in section
