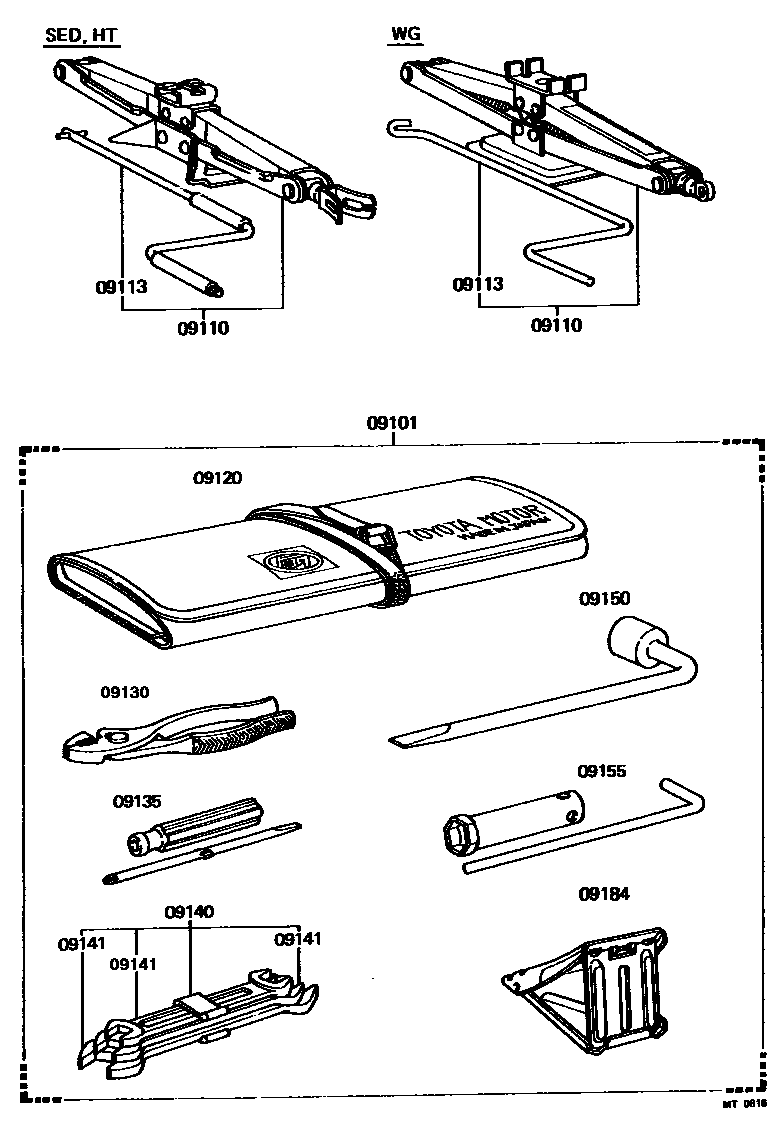

STANDARD TOOL

0001 1 0002 1

09101TOOL SET, STANDARD W/O JACK

main09101-14050iRT105..3FC..4D197408-197509

main09101-14060iRT119..3HC;RT105..3FC..4D197509-197808

main09101-20040iRT118..4F;RT104..3FC..STD197308-197408

main09101-20050iRT118..4F;RT104..3FC..STD197308-197408

main09101-21011iRT105..3FC..4D197408-197509

09110JACK ASSY

main09110-21030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main09110-21031iRT119..3HC197701-197808

main09110-21040iRT119..3HC;RT105..3FC..4D197509-197701

main09110-22020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

09113HANDLE, JACK

main09113-15010iRT119..3HC;RT105..3FC..4D197509-197701

main09113-21020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main09113-21021iRT119..3HC197701-197808

main09113-22010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

09120BAG, TOOL

main09120-12030iRT119..3HC;RT105..3FC..4D197509-197808

main09120-13010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

main09120-20020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

09130PLIERS

main09130-00011iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

09135DRIVER, SCREW

main09135-00010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

09140SPANNER SET

main09140-00013iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

09141SPANNER

main09141-00011iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

8X10

main09141-00030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

10X12

main09141-00050iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

14X17

09150WRENCH, HUB NUT BOX

main09150-30011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

09155WRENCH, SPARK PLUG

main09155-20010iRT118..4F;RT104..3FC..STD197308-197408

main09155-22010iRT118..4F;RT104..3FC..STD197308-197408

main09155-51010iRT105..3FC..4D197408-197509

09184STOPPER, WHEEL

main09184-00010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197509

11 parts on this diagram · 2 diagrams in section
