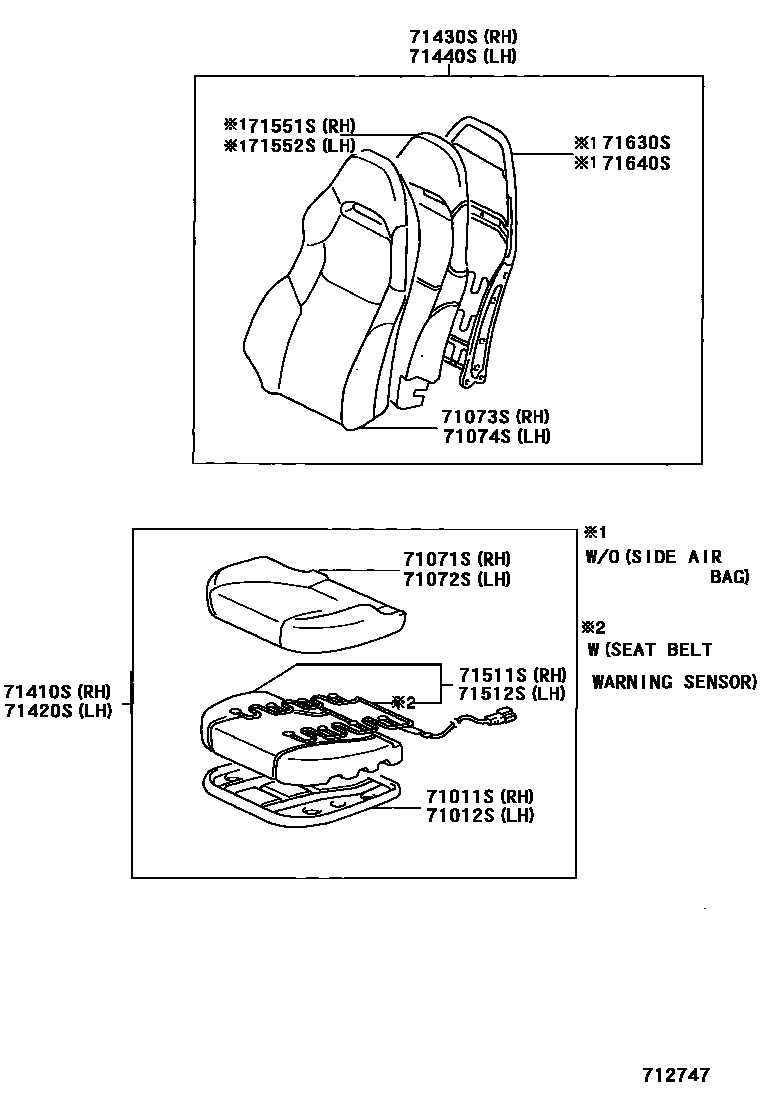

FRONT SEAT & SEAT TRACK

71011SFRAME SUB-ASSY, FRONT SEAT CUSHION, RH

main71610-20560i200208-200507

71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH

main71610-20560i200208-200507

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2H220-20i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM22

main71071-2H220-21i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM20

main71071-2H220-C3i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71071-2H220-C4i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71071-2H220-C5i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71071-2H220-C9i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM21

main71071-2H230-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71071-2H230-C4i200208-200507

SEAT = TYPE B-*104,BLACK,TRIM2#

main71071-2H240-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71071-2H241-C1i200208-200507

SEAT = TYPE C-*104,BLACK,TRIM2#

main71071-2H260-20i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71071-2H260-21i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71071-2H260-C3i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71071-2H260-C4i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71071-2H260-C5i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71071-2H260-C9i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71071-2H270-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71071-2H270-C1i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71071-2H280-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

main71071-2H281-C1i200208-200507

SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLACK,TRIM2#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2G510-20i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM22

main71072-2G510-21i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM20

main71072-2G510-C3i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71072-2G510-C4i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71072-2G510-C5i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71072-2G510-C9i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM21

main71072-2G520-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71072-2G520-C1i200208-200507

SEAT = TYPE B-*104,BLACK,TRIM2#

main71072-2G530-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71072-2G531-C1i200208-200507

SEAT = TYPE C-*104,BLACK,TRIM2#

main71072-2G550-20i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71072-2G550-21i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71072-2G550-C3i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71072-2G550-C4i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71072-2G550-C5i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71072-2G550-C9i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71072-2G560-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71072-2G560-C1i200208-200507

W(SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71072-2G570-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

main71072-2G571-C1i200208-200507

SEAT = TYPE C-*104 & W(SIDE AIR BAG),BLACK,TRIM2#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2H260-C0i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71073-2H260-C1i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71073-2H260-C2i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71073-2H261-20i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM22

main71073-2H261-21i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM20

main71073-2H261-C9i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM21

main71073-2H270-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71073-2H271-C3i200208-200507

SEAT = TYPE B-*104,BLACK,TRIM23

main71073-2H280-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71073-2H281-C2i200208-200507

SEAT = TYPE C-*104,BLACK,TRIM2#

main71073-2H300-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71073-2H300-C1i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71073-2H300-C2i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71073-2H301-20i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71073-2H301-21i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71073-2H301-C9i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71073-2H310-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71073-2H311-C3i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71073-2H320-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

main71073-2H321-C3i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM23

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71073-2H250-C0i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71073-2H250-C1i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71073-2H250-C2i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71073-2H251-20i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM22

main71073-2H251-21i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM20

main71073-2H251-C9i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM21

main71074-2G260-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71074-2G261-C3i200208-200507

SEAT = TYPE B-*104,BLACK,TRIM23

main71074-2G270-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71074-2G271-C3i200208-200507

SEAT = TYPE C-*104,BLACK,TRIM23

main71074-2G290-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71074-2G290-C1i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71074-2G290-C2i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71074-2G291-20i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71074-2G291-21i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71074-2G291-C9i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71074-2G300-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71074-2G301-C3i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM23

main71074-2G310-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

main71074-2G311-C3i200208-200507

W(SRS SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2H780-C0i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71410-2H780-C1i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71410-2H780-C2i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71410-2H790-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71410-2H790-C1i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71410-2H790-C2i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71410-2H800-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71410-2H810-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71410-2H820-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71410-2H830-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2H410-C0i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71420-2H410-C1i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71420-2H410-C2i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71420-2H420-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71420-2H420-C1i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71420-2H420-C2i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71420-2H430-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71420-2H440-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71420-2H450-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71420-2H460-C0i199908-200208

W(SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71040-20180-C0i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71040-20180-C1i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71040-20180-C2i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71040-20200-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71040-20210i199908-199909

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104

main71040-20211-C0i199909-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71040-20212-C3i200208-200507

SEAT = TYPE B-*104,BLACK,TRIM23

main71040-20220-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71040-20260-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71040-20260-C1i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71040-20260-C2i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71040-20261-20i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM20

main71040-20261-21i200208-200507

SEAT = TYPE A-*104,GRAY,TRIM21

main71040-20261-22i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM22

main71040-20270-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

main71040-20271-C3i200208-200507

SEAT = TYPE C-*104,BLACK,TRIM23

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71040-20160-C0i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM20

main71040-20160-C1i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM21

main71040-20160-C2i199908-200208

SEAT = TYPE A-*104,BLACK,TRIM22

main71070-20080-C0i199908-200208

SEAT = TYPE B-*104,BLACK,TRIM2#

main71070-20090i199908-199909

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104

main71070-20091-C0i199909-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE B-*104,BLACK,TRIM2#

main71070-20092-C3i200208-200507

SEAT = TYPE B-*104,BLACK,TRIM23

main71070-20100-C0i199908-200208

SEAT = TYPE C-*104,BLACK,TRIM2#

main71070-20180-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM20

main71070-20180-C1i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM21

main71070-20180-C2i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE A-*104,BLACK,TRIM22

main71070-20181-20i200208-200507

SEAT = TYPE A-*104,GRAY,TRIM21

main71070-20181-21i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM22

main71070-20181-C9i200208-200507

SEAT = TYPE A-*104,BLACK,TRIM20

main71070-20190-C0i199908-200208

W(SRS SIDE AIR BAG) & SEAT = TYPE C-*104,BLACK,TRIM2#

main71070-20191-C3i200208-200507

SEAT = TYPE C-*104,BLACK,TRIM23

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71051-20100i199908-200208

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-20190i200208-200507

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-20490i200208-200507

main71551-20500i200208-200507

W(LEATHER SEAT)

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-20490i199908-200208

main71551-20500i199908-200208

W(LEATHER SEAT)

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-20830i199908-200208

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71630-20830i199908-200208

16 parts on this diagram · 4 diagrams in section
