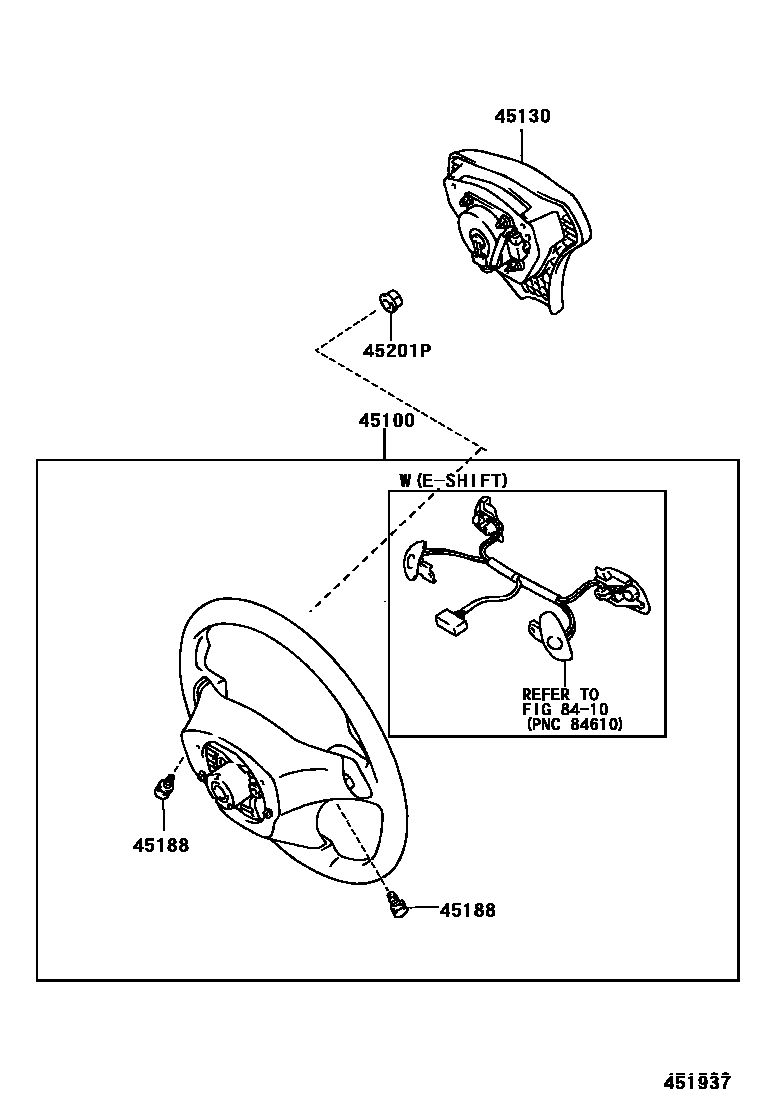

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-2B690-C0i199908-200208

3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,BLACK,TRIM20,21,22,23

main45100-2B700-C0i200208-200507

3-SPOKE,URETHANE,BLACK,TRIM20,21,22,23

main45100-2B710-C0i200208-200507

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-2B720-C0i200208-200408

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

main45100-2B721-C0i200409-200507

3-SPOKE,URETHANE,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

main45100-2B730-C0i200208-200408

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#; 3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

main45100-2B731-C0i200409-200507

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#; 3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM20,21,22,23

main45100-2B740-C0i200208-200408

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

main45100-2B741-C0i200409-200507

3-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

45130BUTTON ASSY, HORN

main45130-2B430-C0i200208-200507

BLACK,TRIM2#; BLACK,TRIM20,21,22,23

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2i199908-200208

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i199908-200208

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

5 parts on this diagram · 1 diagram in section
