DISC WHEEL & WHEEL CAP

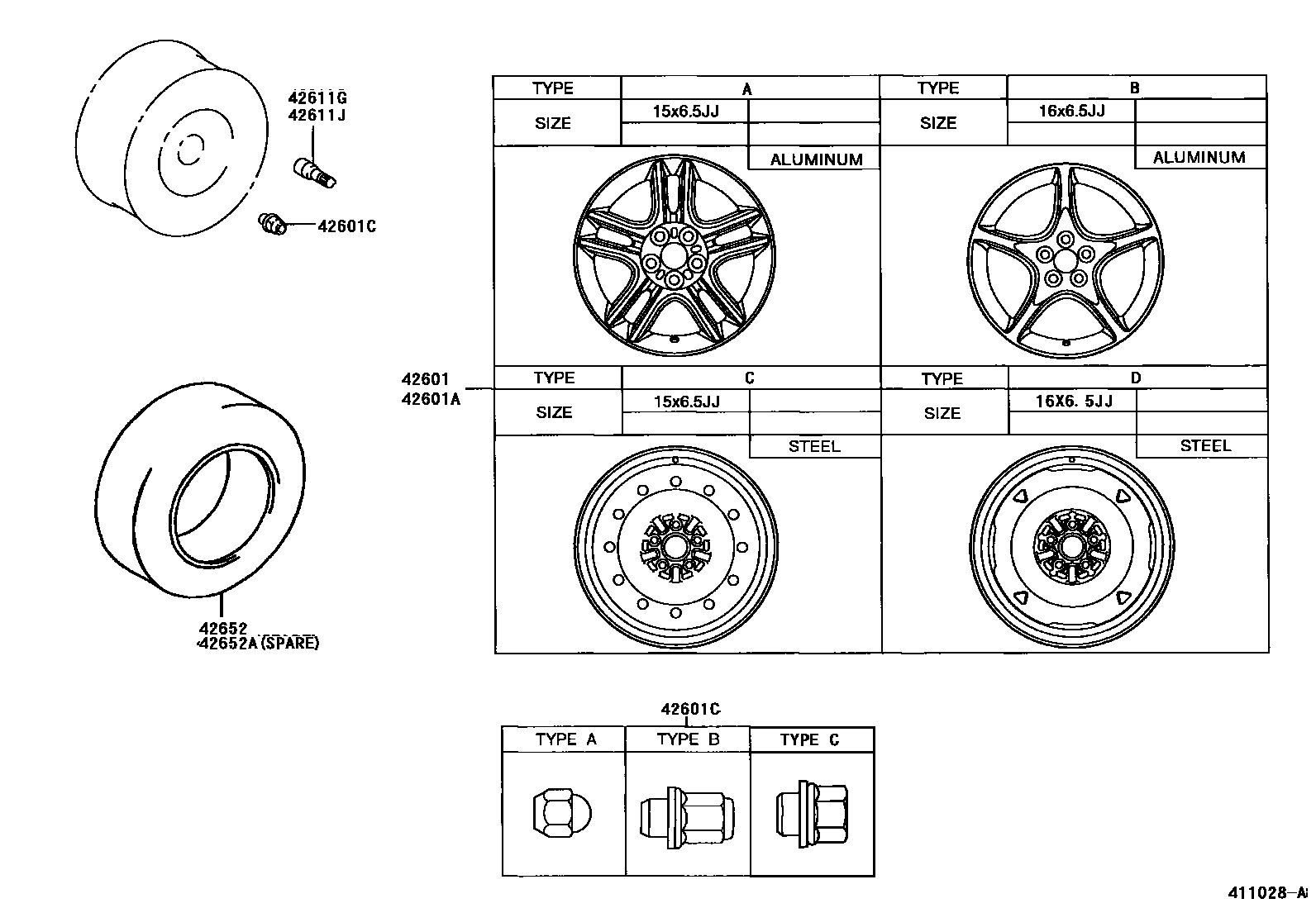

Parts diagram

42601WHEEL, DISC

main42611-2B270×4i200008-200208

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B280×4i199908-200208

15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-2B290×4i200208-200507

16X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-2B340×4i200402

16X6.5JJ,ACTION PACKAGE 2(USA/HAWAII/P.RICO/CANADA)

42601AWHEEL, DISC (FOR SPARE)

main42611-20800i199908-200208

16X4T,SPARE,TYPE D:REFER TO ILLUSTRATION

main42611-2B270i200208-200507

15X6.5JJ,TYPE C:REFER TO ILLUSTRATION

main42611-2B280i200008-200208

15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-2B290i200208-200507

16X6.5JJ,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01021×20i199908-200108

TYPE A:REFER TO ILLUSTRATION

main90942-01033×20i199908-200208

TYPE B:REFER TO ILLUSTRATION

main90942-01062×20i200208-200507

TYPE C:REFER TO ILLUSTRATION

main90942-01082×20i200108-200208

TYPE A:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4i199908-200208

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i199908-200208

42652TIRE

main42652-2B780×4i200208-200507

205/55R15,TRAMPIO R19

main42652-2B820×4i199908-200208

195/60R15,SP SPORT 4000 A/S,POTENZA RE92

main42652-2B830×4i199908-200208

P205/55R15,MICHELIN,PILOT XGTV4

main42652-2B840×4i200312-200405

205/50R16,ADVAN

main42652-2B841×4i200406-200507

205/50R16,ADVAN

main42652-2B850×4i199908-200208

P205/55R15,*B/S,POTENZA RE92

main42652-2B860×4i200208-200405

205/55R15,POTENZA RE030

main42652-2B861×4i200406-200507

205/55R15,POTENZA RE030

main42652-2D020×4i200308-200507

P195/60R15

42652ATIRE (FOR SPARE)

main42652-2B440i199908-200208

T125/70D16,*B/S

main42652-2B780i199908-200008

205/55R15,TRAMPIO R19

main42652-2B820i200208-200507

195/60R15

main42652-2B830i200208-200507

P205/55R15,MICHELIN,PILOT XGTV4

main42652-2B840i200208-200405

205/50R16

main42652-2B841i200406-200507

205/50R16

main42652-2B850i200208-200308

P205/55R15,*B/S,POTENZA RE92

main42652-2B860i200208-200405

205/55R15

main42652-2B861i200406-200507

205/55R15,POTENZA RE030

main42652-2D020i200308-200507

P195/60R15

7 parts on this diagram · 3 diagrams in section
