Toyota 252420 — EXHAUST PIPE

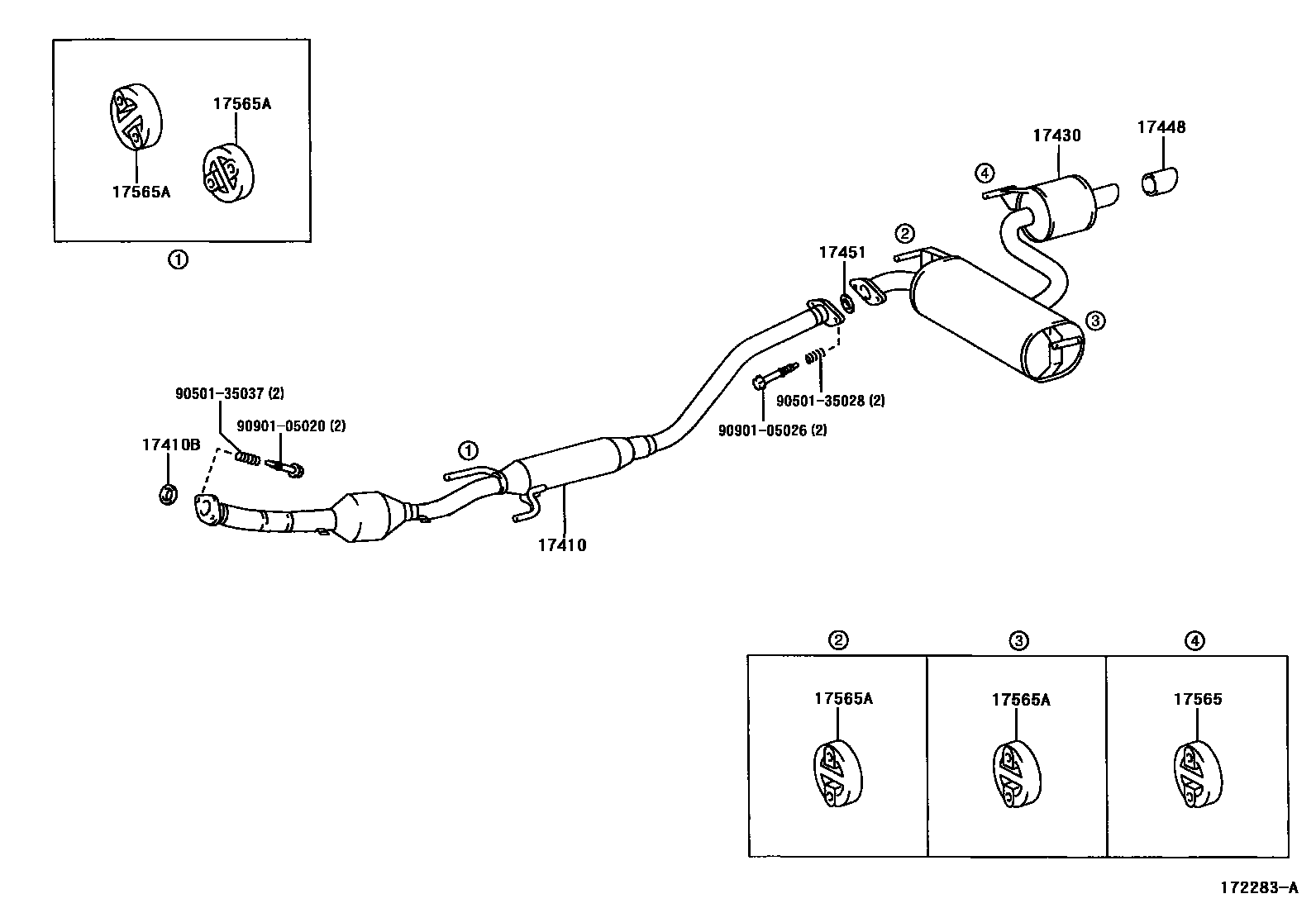

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
17451-22050
17410-22070
17451-22070
17410-22100
17410-22380
17410-22480
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17430-22070
17430-22080
17430-22220
17448BAFFLE, TAILPIPE
17408-46020
17451GASKET, EXHAUST PIPE
17451-20010
17451-22040
17565SUPPORT, EXHAUST PIPE, NO.5
17565-46010
17565-16270
17565ASUPPORT, EXHAUST PIPE, NO.4
9050135028
90501-35028
9050135037
90501-35037
9090105020
90901-05020
9090105026
90901-05026

11 parts on this diagram · 1 diagram in section

EXHAUST PIPE for Toyota 252420

This section contains 11 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 252420. Key components include: PIPE ASSY, EXHAUST, FRONT, GASKET, EXHAUST PIPE, PIPE ASSY, EXHAUST, TAIL, BAFFLE, TAILPIPE.
