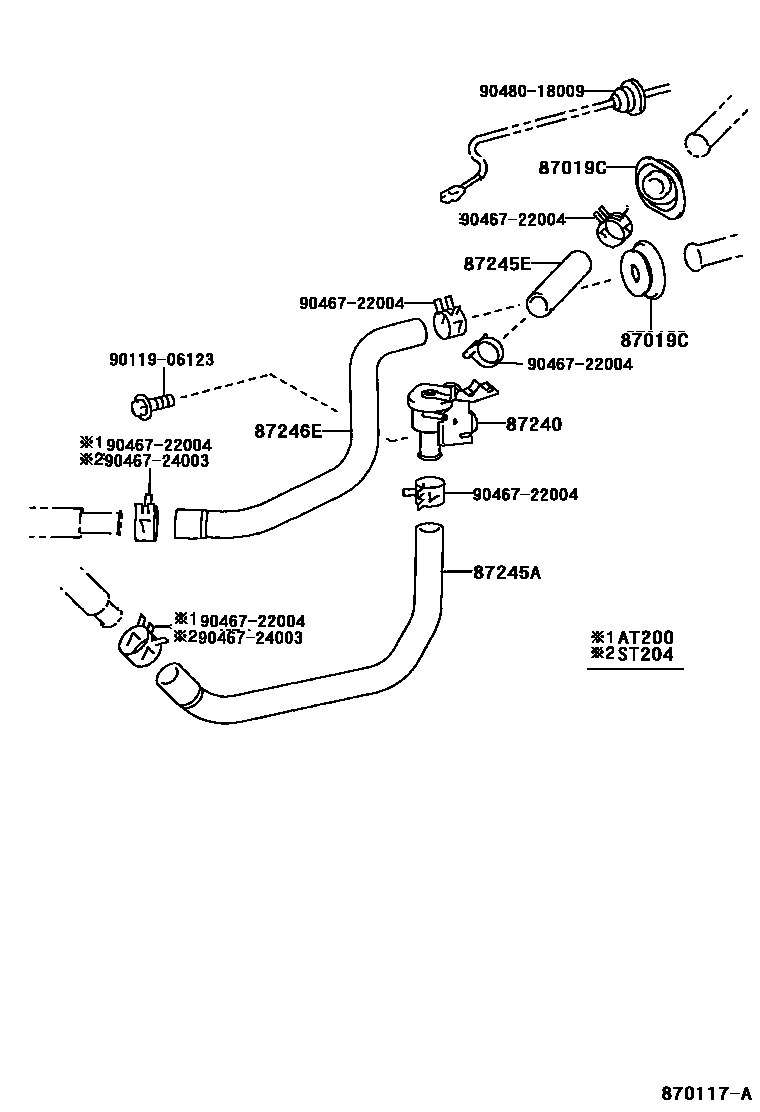

HEATING & AIR CONDITIONING - WATER PIPING

87019CGROMMET, HEATER HOSE

main90480-01659iAT200,ST204199309

INNER

main90480-36011iAT200,ST204199309

OUTER

87240VALVE ASSY, HEATER WATER

main87240-20420iAT200,ST204199309

87245AHOSE, HEATER WATER, INLET A

main87245-2D040iST204199309-199508

main87245-2D100iAT200199309-199712

main87245-2D280iST204199510

87245EHOSE, HEATER WATER, INLET E

main99556-30100iAT200,ST204199309

*H,L=55

87246EHOSE, HEATER WATER, OUTLET E

main87245-2D050iST204199309-199508

main87245-2D110iAT200199309-199712

main87245-2D290iST204..CP,LB199508-199510

9011906123

main90119-06123

9046722004

main90467-22004

9046724003

main90467-24003

9048018009

main90480-18009

9 parts on this diagram · 1 diagram in section
