HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL(MANUAL) 0002 1CONTROL(AUTO) 0003 1DUCT

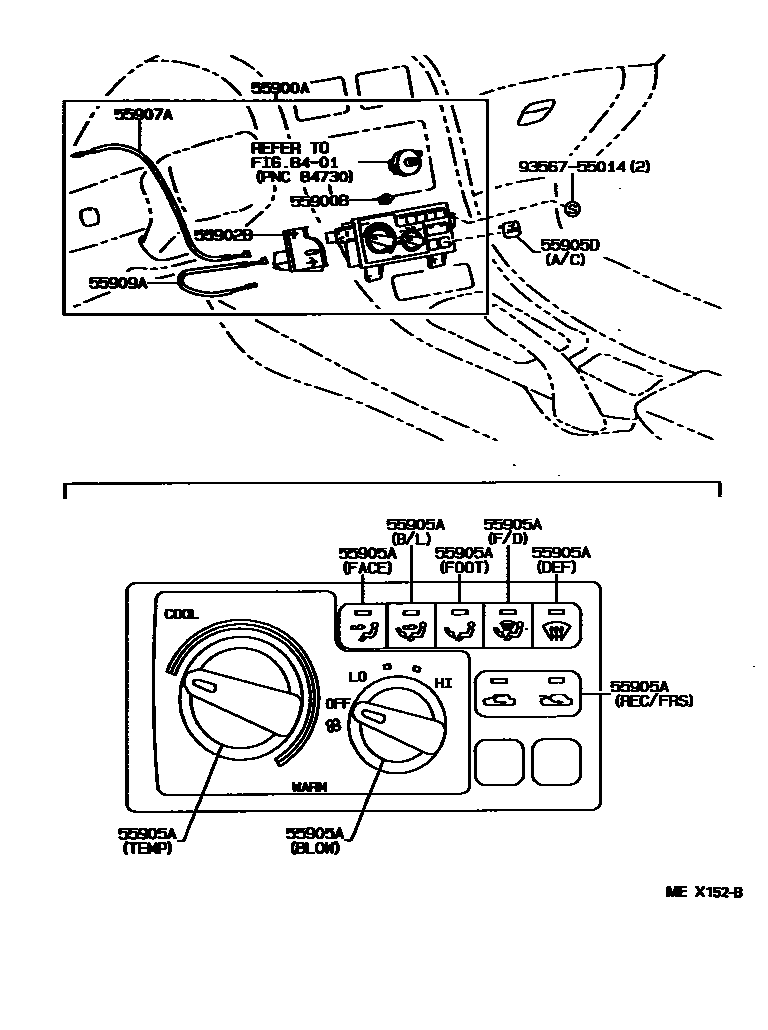

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-2B230iAT200,ST204199309-199508

DEALER OPTION

main55900-2B240iST204;AT200..USA199309-199508

MAKER OPTION

main55900-2B330iAT200,ST204..CP,LB199508-199510

DEALER OPTION

main55900-2B340iAT200,ST204..USA199510

MAKER OPTION

55900BBULB, AIR CONDITIONER CONTROL

main84999-70007×3iAT200,ST204199309

14V 1.4W

55902BCONTROL SUB-ASSY, HEATER

main55902-20150iAT200,ST204199309

55905AKNOB, HEATER CONTROL

main55905-2B290iST204;AT200..USA199309-199508

A/C

main55905-2B320iAT200,ST204199309

FACE

main55905-2B330iAT200,ST204199309

BI-LEVEL

main55905-2B340iAT200,ST204199309

FOOT

main55905-2B350iAT200,ST204199309

FOOT/DEF

main55905-2B360iAT200,ST204199309

DEF

main55905-2B380iAT200,ST204199309

RECIRC/FRESH

main55905-33030iAT200,ST204199309

TEMP

main55905-33040iAT200,ST204199309

BLOW

55905DKNOB SUB-ASSY, CONTROL

main55905-2B290iAT200,ST204199309-199712

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20380iAT200,ST204199309

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20240iAT200,ST204199309

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356755014

main93567-55014

9 parts on this diagram · 3 diagrams in section
