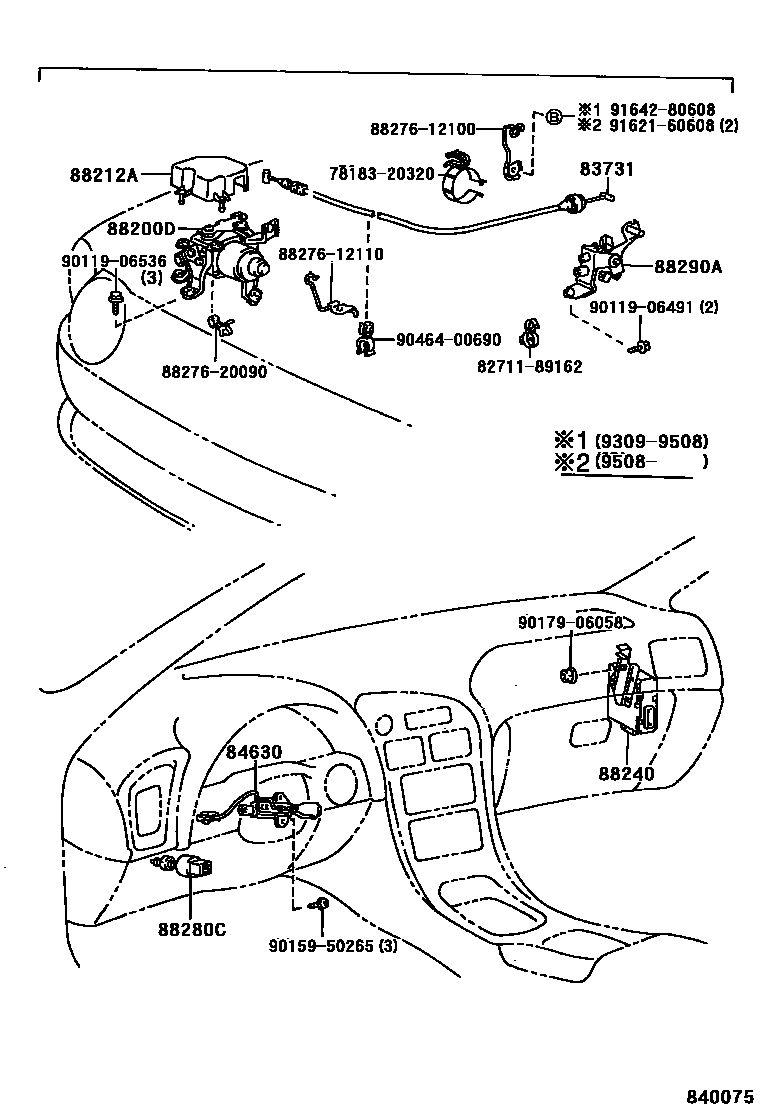

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

83731CABLE, CRUISE CONTROL

main83731-20160iAT200199309-199712

main83731-20170iST204..GT..USA199904-199905

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-14130iST204199712

main84630-33020iAT200,ST204199309-199712

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20150iST204..GT..USA199904-199905

main88200-20160iAT200199404-199712

main88200-20161iAT200199309-199404

88212ACOVER, CRUISE CONTROL ACTUATOR

main88212-20060iST204199309-199904

main88212-20070iAT200199404-199712

main88212-20071iAT200199309-199404

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20430iAT200,ST204199309-199508

main88240-20440iAT200,ST204..CP,LB199508-199510

88280CSWITCH ASSY, CLUTCH

main88280-14030iAT200,ST204..MTM199309-199904

88290ABELLCRANK ASSY, CRUISE CONTROL

main88290-20050iAT200,ST204199309-199904

7818320320BRACKET, ACCELERATOR LINK ROD

main78183-20320

8271189162WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89162

8827612100

main88276-12100

8827612110

main88276-12110

8827620090

main88276-20090

9011906491

main90119-06491

9011906536

main90119-06536

9015950265

main90159-50265

9017906058

main90179-06058

9046400690

main90464-00690

9162160608

main91621-60608

9164280608

main91642-80608

19 parts on this diagram · 2 diagrams in section
