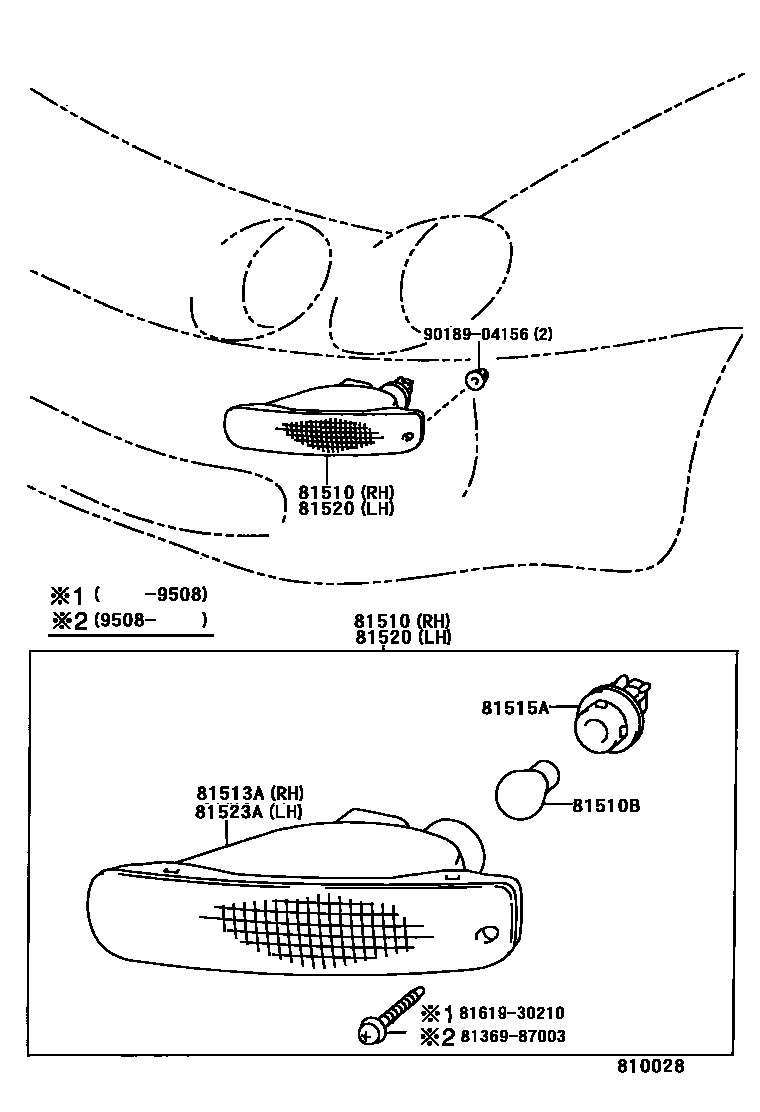

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-20740iST204..CVT199508-199510

main81510-20780iAT200,ST204..CP,LB199508-199510

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-21270×2iAT200,ST204199309

12V 27/8W

81513AUNIT ASSY, FRONT TURN SIGNAL LAMP, RH

main81511-20740iAT200,ST204199309-199508

main81511-20780iAT200,ST204..CP,LB199508-199510

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-99021×2iST204..CVT199508-199510

main90075-99106×2iAT200,ST204..CP,LB199508-199510

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-20720iAT200,ST204199510

main81520-20740iST204..CVT199508-199510

81523AUNIT ASSY, FRONT TURN SIGNAL LAMP, LH

main81521-20720iAT200,ST204..CP,LB199508-199510

main81521-20740iAT200,ST204199309-199508

8136987003COVER, SPOT LAMP

main81369-87003

8161930210

main81619-30210

9018904156

main90189-04156

9 parts on this diagram · 1 diagram in section
