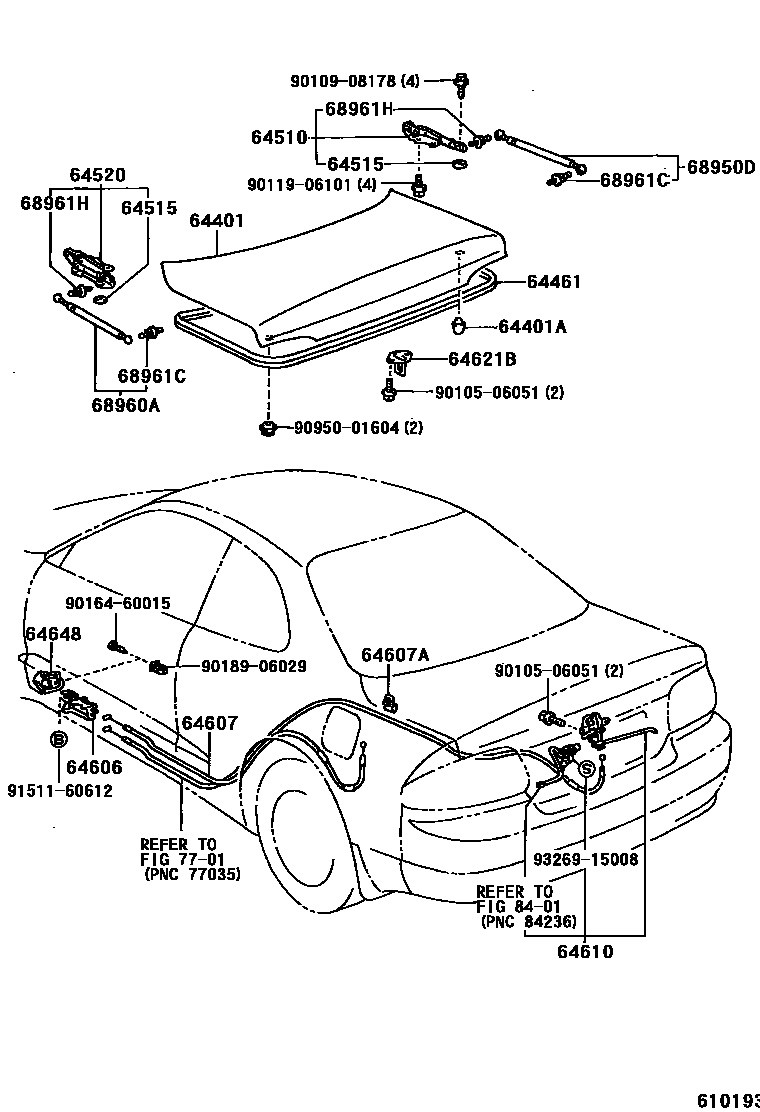

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B680iAT200,ST204..CP,CVT199309

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09075×2iAT200,ST204..CP199309-199510

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20380iAT200,ST204..CP,CVT199309-199510

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20180iAT200,ST204..CP199309

main64510-20210iST204..CVT199408

64515PAD, LUGGAGE DOOR HINGE

main64515-20080×4iAT200,ST204..CP199309

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20170iAT200,ST204..CP199309

main64520-20200iST204..CVT199408

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20170iAT200,ST204..CP,CVT199309-199508

main64606-20171iAT200,ST204..CP,CVT199508

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20890iAT200,ST204..CP,CVT199309

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAT200,ST204..CP,CVT199309

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20240iAT200,ST204..CP,CVT199309

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20180iAT200,ST204..CP,CVT199309

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-20010iAT200,ST204..CP,CVT199309

68950DSTAY ASSY, LUGGAGE DOOR, RH

main68950-80032iAT200,ST204..CP,CVT199309

68960ASTAY ASSY, LUGGAGE DOOR, LH

main68950-80032iAT200,ST204..CP,CVT199309

68961CBOLT, LUGGAGE DOOR STAY

main68961-20130×2iAT200,ST204..CP,CVT199309

68961HBOLT, LUGGAGE DOOR STAY

main68961-20120×2iAT200,ST204..CP,CVT199309

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9010908178

main90109-08178

9011906101

main90119-06101

9016460015

main90164-60015

9018906029

main90189-06029

9095001604

main90950-01604

9151160612

main91511-60612

9326915008

main93269-15008

26 parts on this diagram · 1 diagram in section
