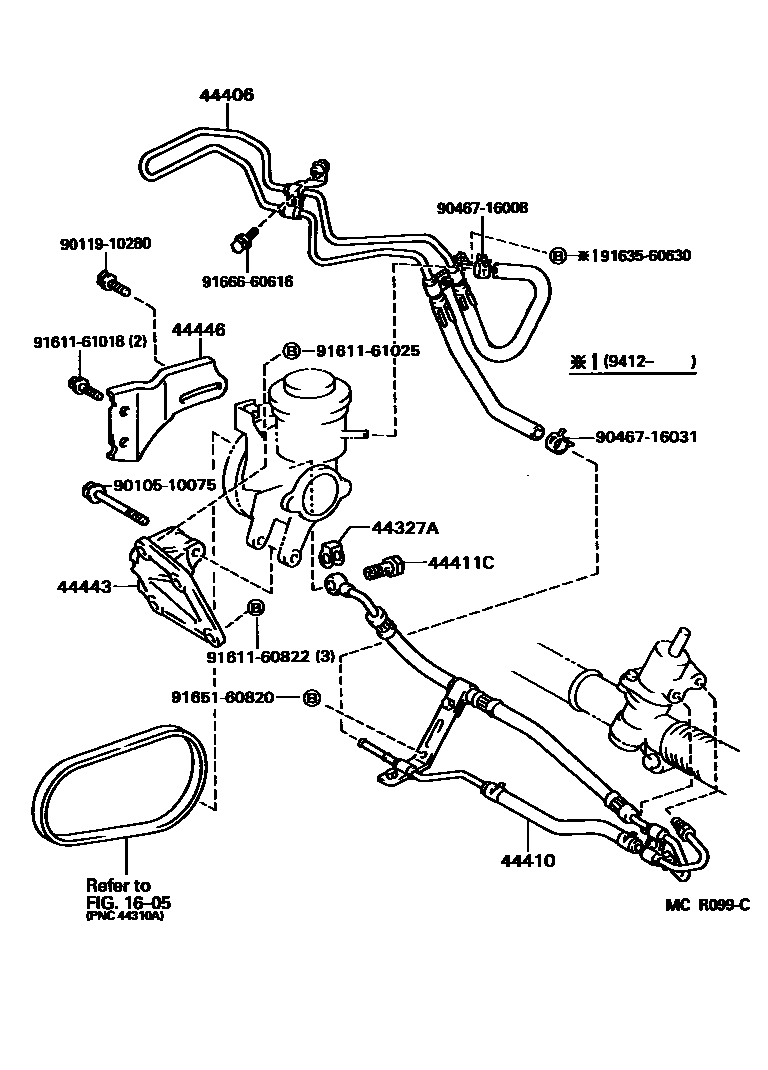

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iAT200,ST204199309

44406TUBE SUB-ASSY, RETURN

main44406-20620iAT200199309-199412

main44406-20621iAT200199412-199712

main44406-20630iST204199309

44410TUBE ASSY, PRESSURE FEED

main44410-2B020iAT200199309-199712

main44410-2B030iST204199309

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16013iAT200,ST204199309-199310

main96341-41603iAT200,ST204199310

44443BRACKET, PUMP

main44443-12050iAT200199309-199712

main44443-20050iST204199309

44446STRUT, ADJUSTING

main44446-12090iAT200199309-199712

9010510075

main90105-10075

9011910280

main90119-10280

9046716008

main90467-16008

9046716031

main90467-16031

9161160822

main91611-60822

9161161018

main91611-61018

9161161025

main91611-61025

9163560630

main91635-60630

9165160820

main91651-60820

9166660616

main91666-60616

17 parts on this diagram · 2 diagrams in section
