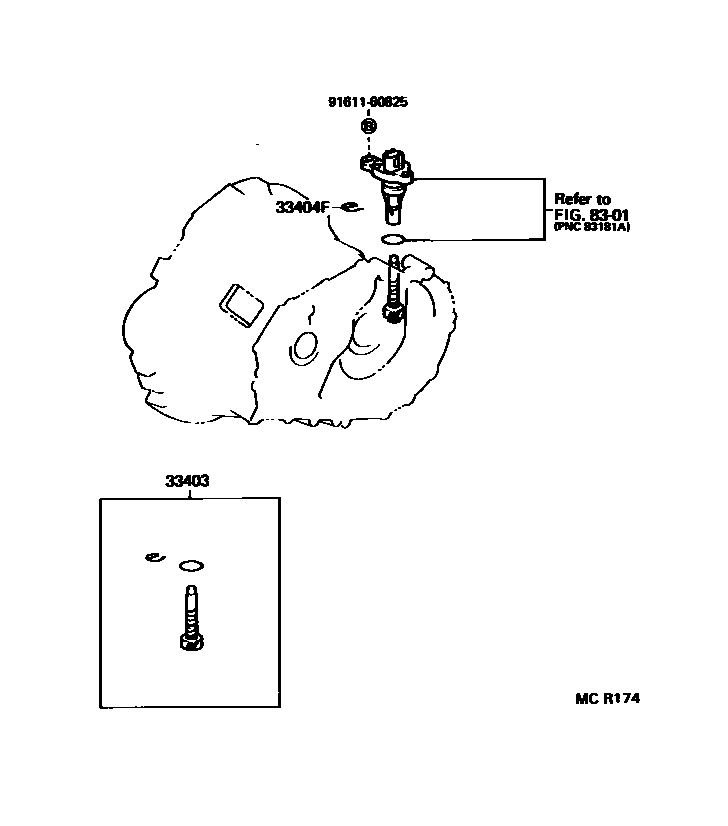

SPEEDOMETER DRIVEN GEAR (MTM)

0001 1C52 0002 1S54

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19455iAT200..MTM199508-199712

N=30,MARK 30:35

main33403-29395iAT200..MTM199309-199712

N=29,MARK 29:35

main33403-29505iST204..MTM199309

N=23,MARK 23:27

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAT200,ST204..MTM199309

8301METER

→ Go to FIG 83-01

9161160825

main91611-60825

4 parts on this diagram · 2 diagrams in section
