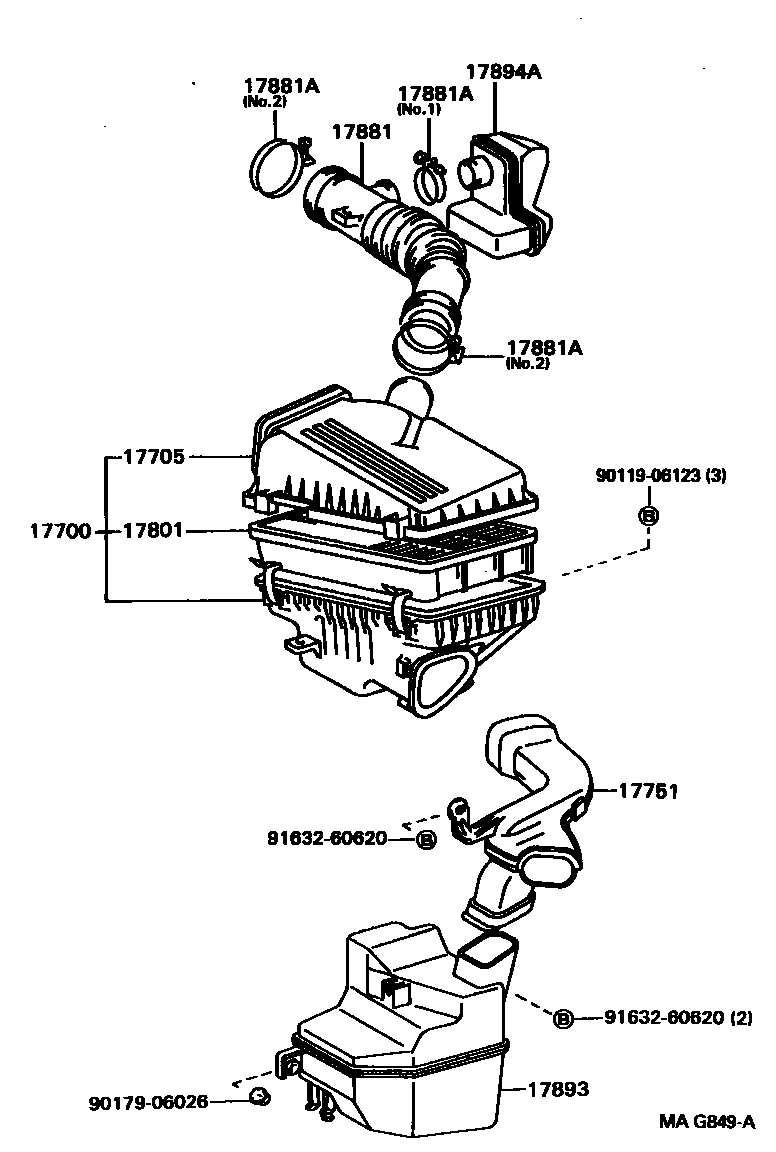

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-74480i5SFE..ST204199309

17705CAP SUB-ASSY, AIR CLEANER

main17705-74320i7AFE..AT200199309-199712

17751INLET, AIR CLEANER, NO.1

main17751-74030i5SFE..ST204; 7AFE..AT200199309-199501

main17751-74040i5SFE..ST204..CP,LB199508-199510

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74060i5SFE..ST204199309

17881HOSE, AIR CLEANER, NO.1

main17881-16360i7AFE..AT200199309-199712

main17881-74520i5SFE..ST204199309-199508

main17881-74540i5SFE..ST204..USA199309-199508

CALIFORNIA SPEC

main17881-74690i5SFE..ST204..CP,LB199508-199510

main17881-74691i5SFE..ST204199712

main17881-74700i5SFE..ST204..(CP,LB)..USA199508-199510

CALIFORNIA SPEC

main17881-74701i5SFE..ST204..USA199712

CALIFORNIA SPEC

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10600i7AFE..AT200199309-199712

NO.1

main96111-10710×2i7AFE..AT200199309-199712

NO.2

17893RESONATOR, INTAKE AIR

main17893-74290i7AFE..AT200199309-199712

17894ARESONATOR, INTAKE AIR, NO.2

main17894-16060i7AFE..AT200199309-199712

main17894-74040i5SFE..ST204199309

9011906123

main90119-06123

9017906026

main90179-06026

9163260620

main91632-60620

11 parts on this diagram · 2 diagrams in section
