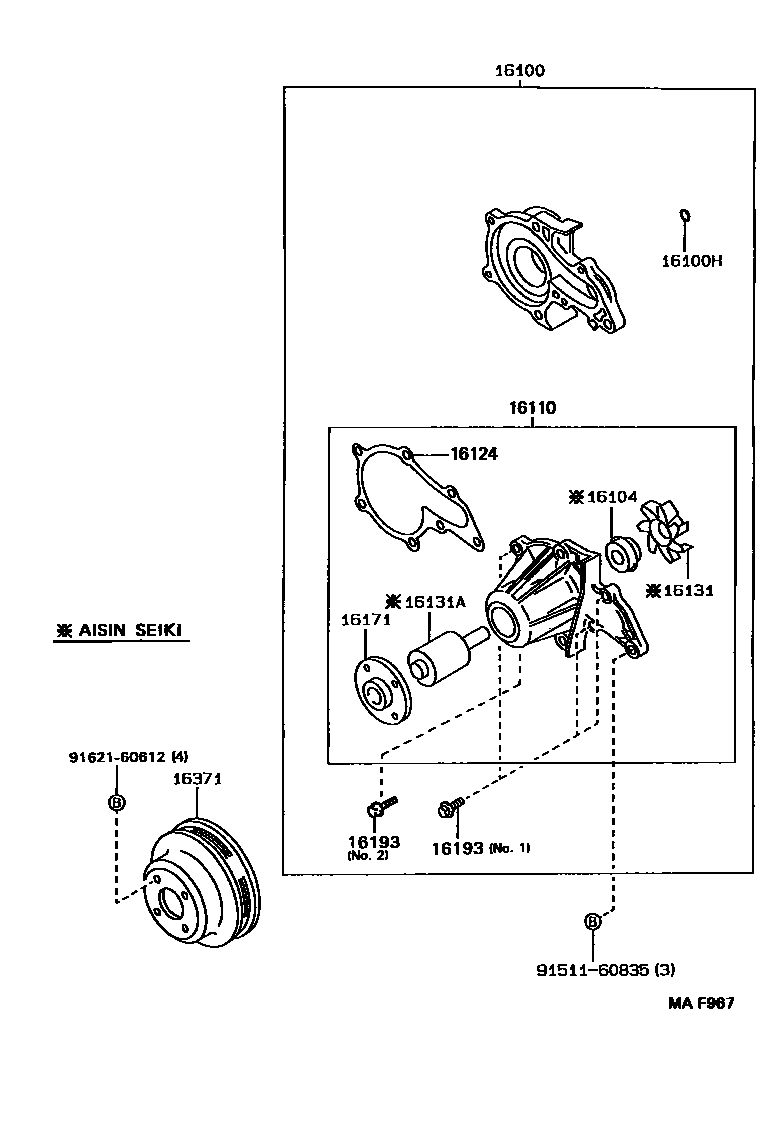

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-19265i7AFE..AT200199309-199605

main16100-19305i7AFE..AT200199605-199712

main16100-79185i5SFE..ST204199905

16100HRING, O(FOR WATER PUMP)

main90301-37005i5SFE..ST204199905

main96711-24035i7AFE..AT200199309-199502

main96761-24035i7AFE..AT200199502-199712

16104SEAL SET, WATER PUMP

main16104-16040i7AFE..AT200199309-199503

main16104-46060i7AFE..AT200199605-199712

main16104-74010i7AFE..AT200199503-199605

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19175i7AFE..AT200199309-199610

AISAN

main16110-19176i7AFE..AT200199610-199712

AISAN

main16110-19185i7AFE..AT200199309-199712

AISIN SEIKI

16124GASKET, WATER PUMP COVER

main16124-15110i7AFE..AT200199605-199712

AISIN SEIKI

main16124-16050i7AFE..AT200199309-199605

AISIN SEIKI

main16124-16060i7AFE..AT200199309-199712

AISAN

main16124-88460i5SFE..ST204199309-199905

16131ROTOR, WATER PUMP

main16131-16020i7AFE..AT200199309-199605

main16131-16090i7AFE..AT200199605-199712

16131ABEARING, WATER PUMP

main90029-36846i7AFE..AT200199605-199712

main90369-35071i7AFE..AT200199309-199605

16171SEAT, WATER PUMP PULLEY

main16171-10012i7AFE..AT200199309-199712

AISIN SEIKI

main16171-15070i7AFE..AT200199309-199610

AISAN

main16171-15071i7AFE..AT200199610-199712

AISAN

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×3i7AFE..AT200199309-199605

AISIN SEIKI, NO.1

main16193-15090i7AFE..AT200199309-199605

AISIN SEIKI, NO.2

main16193-15100×4i7AFE..AT200199309-199712

AISAN

main90029-01500×2i5SFE..ST204199905

16371PULLEY, FAN

main16371-02030i7AFE..AT200199408-199712

(L)

main16371-15050i7AFE..AT200199309-199502

(J)

main16371-15070i7AFE..AT200199502-199604

(J)

main16371-15071i7AFE..AT200199604-199712

(J)

9151160835

main91511-60835

9162160612

main91621-60612

12 parts on this diagram · 2 diagrams in section
