WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE WIRE 0003 1ENGINE WIRE 0004 1ENGINE WIRE 0005 1ENGINE WIRE CLAMPS 0006 1COWL WIRE 0007 1COWL WIRE CLAMPS 0008 1DOOR,ROOF,LUGGAGE WIRE 0009 1DOOR,ROOF,LUGGAGE WIRE 0010 1FLOOR,FRAME,SEAT WIRE 0011 1FLOOR,FRAME,SEAT WIRE 0012 1CABLE BOND 0013 1REPAIR WIRE 0014 1REPAIR WIRE

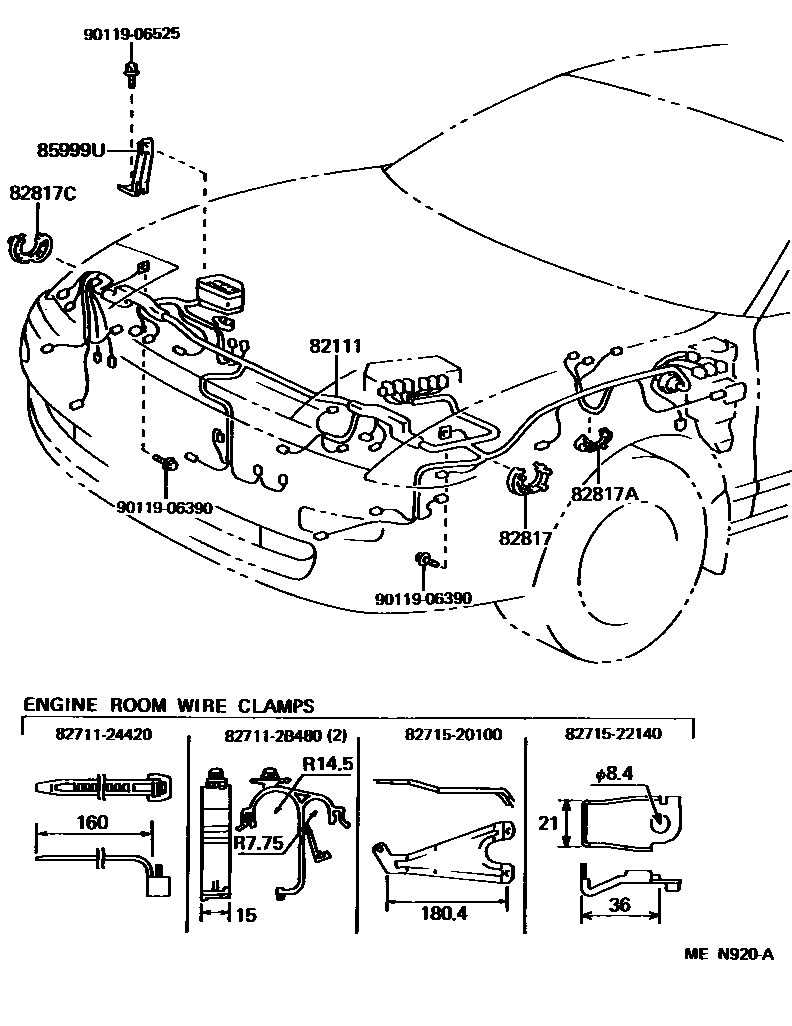

82111WIRE, ENGINE ROOM MAIN

main82111-2D020iST184..GT..CND;AT180,ST184..GTS,ST;ST184..(CP,CVT)..USA; ST184..LB..GT..USA198909-199008

W(FRONT FOG LAMP)

main82111-2D021iST184..CVT199108-199109

main82111-2D030iST184..GTS198909-199008

W(*66)

main82111-2D031iST184..GTS199008-199108

W(*66)

main82111-2D040iST185198910-199008

main82111-2D041iST185199008-199108

main82111-2D050iST184..LB..GT..USA198909-199008

main82111-2D051iST184..LB..GT..USA199008-199108

main82111-2G150iAT180,ST184199109-199309

main82111-2G160iST184199109-199309

W(*66)

main82111-2G170iST185199108-199309

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-2B200iAT180,ST18#198909-199309

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-2B730iAT180,ST18#199001-199309

main82817-32420iAT180,ST18#198909-199001

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-2B200iAT180,ST18#198909-199309

85999UBRACKET, RELAY BLOCK

main85999-20360iAT180,ST18#198909-199309

main85999-20390iST184198909-199008

W(CRUISE CONTROL = VACUUM TYPE)

8271124420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24420

827112B480WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B480

8271520100BRACKET,WIRING HARNESS CLAMP

main82715-20100

8271522140BRACKET,WIRING HARNESS CLAMP

main82715-22140

9011906390

main90119-06390

9011906525

main90119-06525

11 parts on this diagram · 14 diagrams in section
