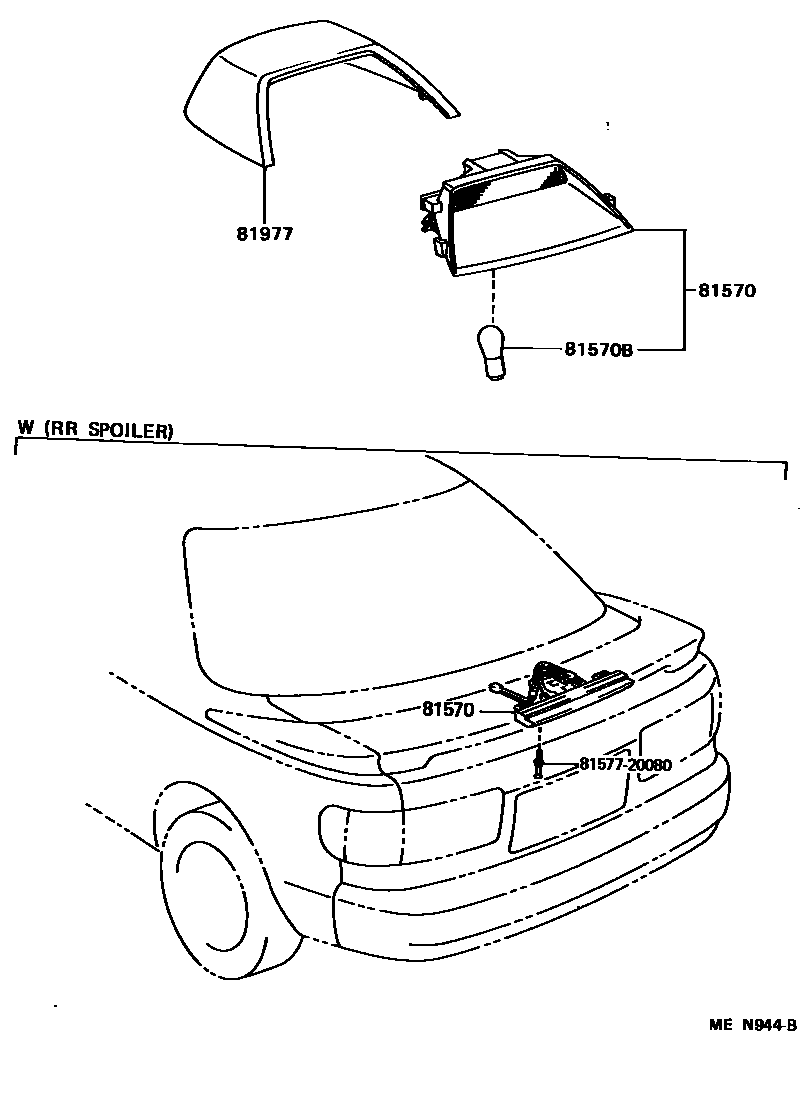

CENTER STOP LAMP

0001 1 0002 1 0003 1

81570LAMP ASSY, CENTER STOP

main81570-20060iAT180198909-199309

main81570-20070iST184..LB..GT198909-199309

main81570-20080iST18#..WIB198909-199309

main81570-20120iST184..CVT199006-199109

W(SPOILER)

main81570-20120iST184..CP,CVT199109-199309

main81570-20190-01iST184..CVT199006-199109

BLACK,202

main81570-20190-02iST184..CVT199006-199109

SUPER RED 2,3E5

main81570-20190-04iST184..CVT199006-199109

LIGHT BLUE METALLIC,8G6

main81570-20190-08iST184..CVT199006-199109

SUPER WHITE 2,040

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iST184..CVT199006-199109

12V 16W

main99132-11270iST184..LB..GT198909-199309

12V 27W

81977COVER, CENTER STOP LAMP

main81977-20030-02iAT180,ST184..CP198909-199008

RED,TRIM3#

main81977-20030-03iAT180198909-199309

SHADOW GRAY,TRIM1#

main81977-20030-04iAT180,ST184..CP198909-199309

DARK BLUE,TRIM8#

main81977-20040-02iST184..LB..GT198909-199008

RED,TRIM3#

main81977-20040-03iST184..LB..GT198909-199309

SHADOW GRAY,TRIM1#

main81977-20040-04iST184..LB..GT198909-199309

DARK BLUE,TRIM8#

main81977-20080iST184..CVT199006-199109

8157720080

main81577-20080

4 parts on this diagram · 3 diagrams in section
