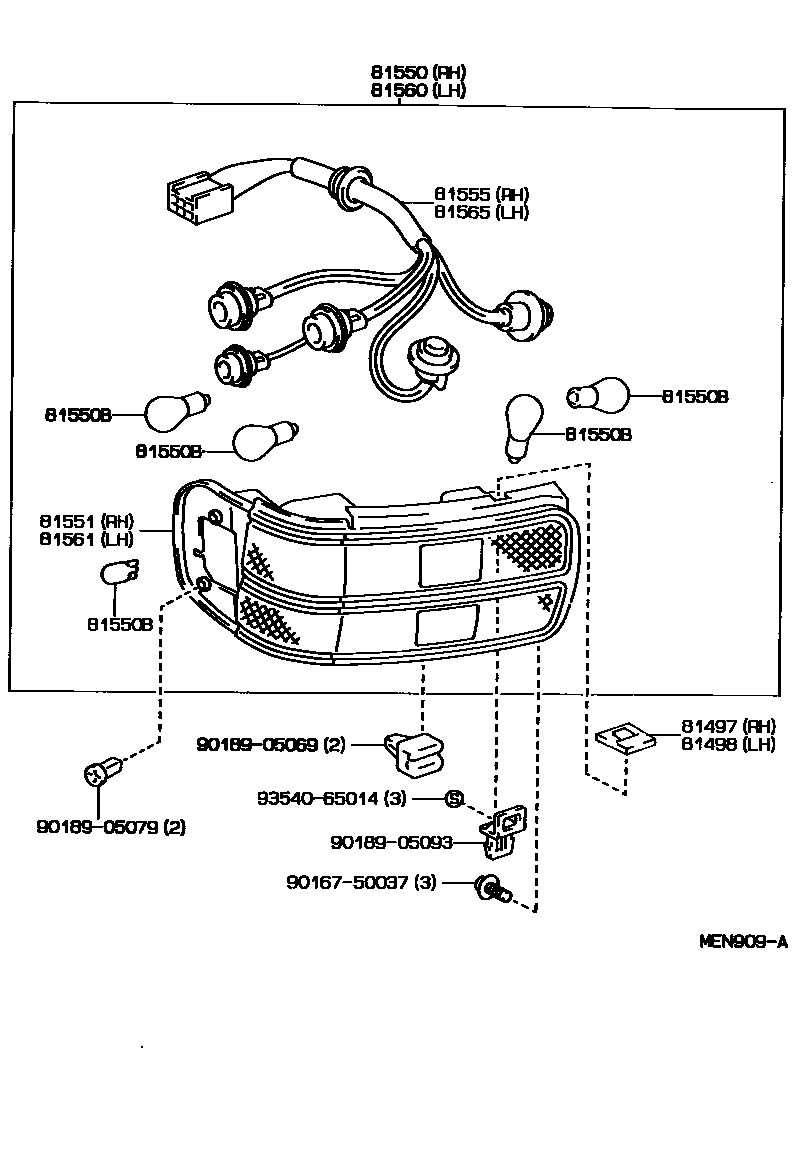

REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81497COVER, REAR COMBINATION LAMP, RH

main81497-20020iAT180,ST184..CP,CVT198909-199309

main81497-20030iST18#..LB198909-199309

81498COVER, REAR COMBINATION LAMP, LH

main81498-20010iAT180,ST184..CP,CVT198909-199309

main81498-20020iST18#..LB198909-199309

81550LAMP ASSY, REAR COMBINATION, RH

main81550-2B050iAT180,ST184..CP,CVT198909-199108

main81550-2B090iST18#..LB198909-199108

main81550-2B180iST18#..LB199108-199309

main81550-2B220iAT180,ST184..CP199108-199109

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-11020×2iAT180,ST18#..CP,LB; ST184..CVT199108-199109

12V 3.8W; 12V 3.8W,MARKER

main99132-11270×4iAT180,ST18#198909-199108

12V 27W,TURN OR BACK

main99132-21270×4iAT180,ST18#..CP,LB; ST184..CVT199108-199109

12V 27/8W; 12V 27/8W,TAIL & STOP

81551LENS, REAR COMBINATION LAMP, RH

main81551-2B030iAT180,ST184..CP,CVT198909-199108

main81551-2B090iST18#..LB198909-199108

main81551-2B180iST18#..LB199108-199309

main81551-2B220iAT180,ST184..CP199108-199109

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-2B050iST184..CVT199108-199109

main81555-2B090iST18#..LB198909-199309

main81555-2B220iAT180,ST184..CP199108-199109

81560LAMP ASSY, REAR COMBINATION, LH

main81560-2B050iAT180,ST184..CP,CVT198909-199108

main81560-2B090iST18#..LB198909-199108

main81560-2B120iST18#..LB199108-199309

main81560-2B160iAT180,ST184..CP199108-199109

81561LENS, REAR COMBINATION LAMP, LH

main81561-2B030iAT180,ST184..CP,CVT198909-199108

main81561-2B090iST18#..LB198909-199108

main81561-2B120iST18#..LB199108-199309

main81561-2B160iAT180,ST184..CP,CVT199109-199309

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-2B050iAT180,ST184..CP,CVT198909-199108

main81555-2B090iST18#..LB198909-199309

main81555-2B220iAT180,ST184..CP199108-199109

9016750037

main90167-50037

9018905069

main90189-05069

9018905079

main90189-05079

9018905093

main90189-05093

9354065014

main93540-65014

14 parts on this diagram · 4 diagrams in section
