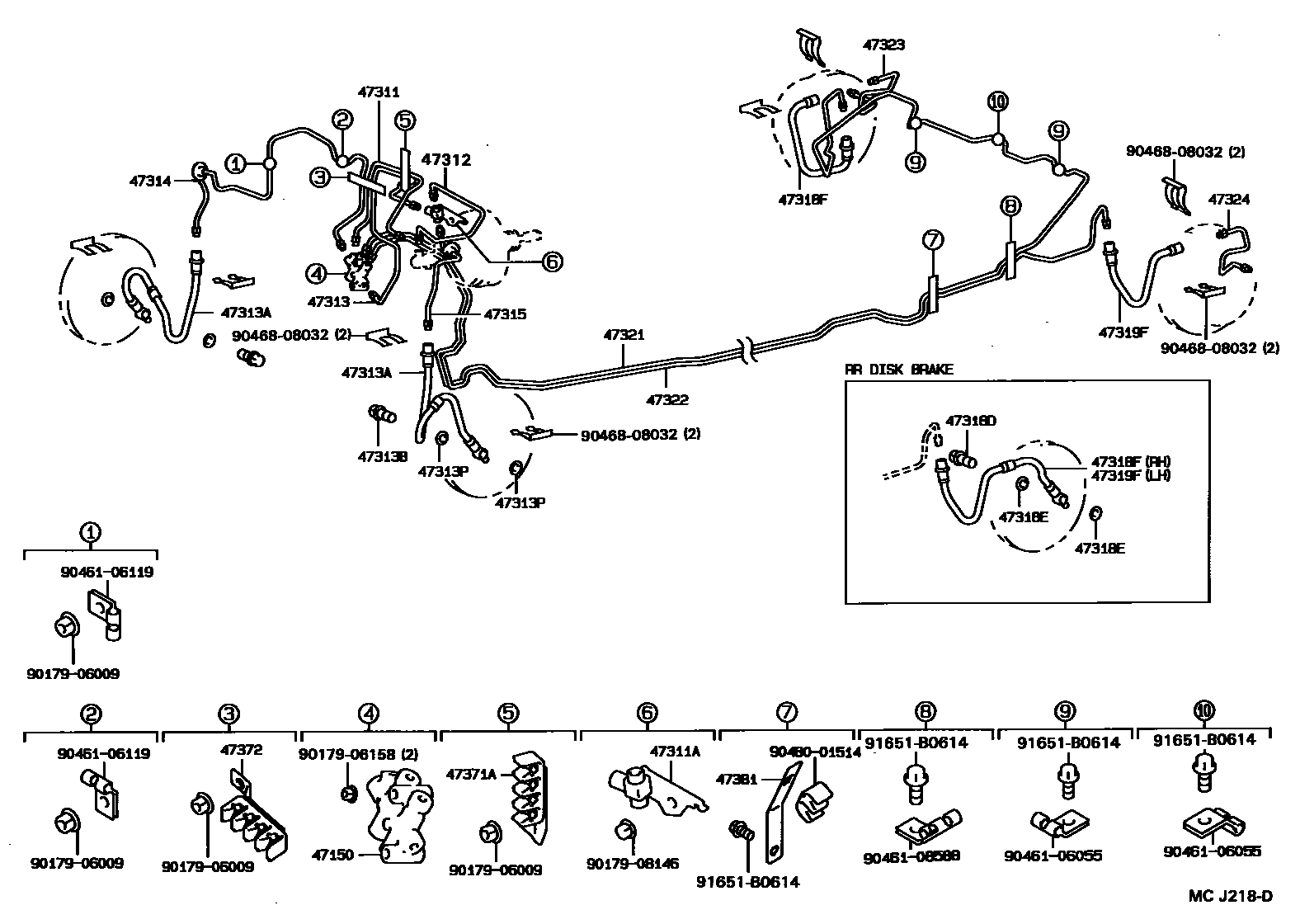

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W(ANTI-LOCK BRAKING SYSTEM) 0004 1W(ANTI-LOCK BRAKING SYSTEM) 0005 1W(ANTI-LOCK BRAKING SYSTEM)

47150VALVE ASSY, PROPORTIONING

main47150-12100iST184..GTS198909-199108

W(*66)

main47150-16040iST184..CP,LB199108-199309

main47150-16050iST184..CVT199109-199309

main47150-20130iST184..GT198909-199108

main47150-20140iST184..GTS198909-199108

main47150-20160iST185198910-199309

main47150-20230iST184..CVT199109-199309

W(*66)

main47150-32060iST184..CP,LB199108-199309

W(*66)

main47150-32070iST185198910-199309

W(*66)

47311TUBE, FRONT BRAKE, NO.1

main47311-20710iAT180,ST18#198909-199108

main47311-20711iST184..CVT199108-199109

main47311-20730iST18#..WIB198909-199108

W(*66)

main47311-20810iAT180,ST18#199109-199309

main47311-20831iST18#..CP,LB199108-199109

W(*66)

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10149iST18#199109-199309

W(*66)

main90413-10182×2iAT180,ST185; ST184199109-199309

47312TUBE, FRONT BRAKE, NO.2

main47312-20190iAT180,ST185; ST184199109-199309

47313TUBE, FRONT BRAKE, NO.3

main47313-20480iAT180,ST18#198909-199108

main47313-20481iST184..CVT199108-199109

main47313-20500iST18#..WIB198909-199108

W(*66)

main47313-20580iAT180,ST18#..CP,LB199108-199109

main47313-20601iST18#..CP,LB199108-199109

W(*66)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02594×2iAT180,ST18#198909-199309

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAT180,ST18#198909-199309

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010×4iAT180,ST18#199109-199309

main90430-10074×4iST184..CVT199108-199109

47314TUBE, FRONT BRAKE, NO.4

main47314-20360iAT180,ST18#198909-199108

main47314-20361iST184..CVT199108-199109

main47314-20390iST18#..WIB198909-199108

W(*66)

main47314-20450iAT180,ST18#..CP,LB199108-199109

main47314-20490iST18#199109-199309

W(*66)

47315TUBE, FRONT BRAKE, NO.5

main47315-20490iAT180,ST18#198909-199002

main47315-20491iAT180,ST18#199002-199309

47318TUBE, FRONT BRAKE, NO.8

main47318-20240iST18#..WIB198909-199108

main47318-20281iST18#..CP,LB199108-199109

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iST18#..CP,LB199108-199109

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-30010×4iST18#199109-199309

main90430-10074×4iST18#..WIB198909-199108

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02596iST185198910-199309

main90947-02597iAT180199109-199309

main90947-02598iST184..GTS198909-199108

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02596iST185198910-199309

main90947-02597iAT180;ST184..CVT199108-199109

main90947-02598iST184..GTS198909-199108

47321TUBE, REAR BRAKE, NO.1

main47321-20280iAT180,ST184198909-199309

main47321-20320iST185198910-199309

47322TUBE, REAR BRAKE, NO.2

main47322-20410iAT180,ST184198909-199309

main47322-20450iST185198910-199309

47323TUBE, REAR BRAKE, NO.3

main47323-20120iAT180,ST184..NOB198909-199108

47324TUBE, REAR BRAKE, NO.4

main47324-20120iAT180199109-199309

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20040iST18#..CP,LB199108-199109

W(*66)

main47371-20070×2iST18#..WIB198909-199108

W(*66)

main47371-20220iAT180,ST18#198909-199108

main47371-20250iAT180,ST18#199109-199309

47372CLAMP, BRAKE TUBE, NO.2

main47371-20040iST18#..WIB198909-199108

W(*66)

main47371-20060iAT180,ST18#198909-199108

main47371-20260iAT180,ST18#..CP,LB199108-199109

main47371-20270×2iST18#199109-199309

W(*66)

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-20090iAT180,ST184198909-199309

9016808032

main90168-08032

9017906009

main90179-06009

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046106119

main90461-06119

9046108588

main90461-08588

9046808032

main90468-08032

9048001514

main90480-01514

91651B0614

main91651-B0614

32 parts on this diagram · 5 diagrams in section
