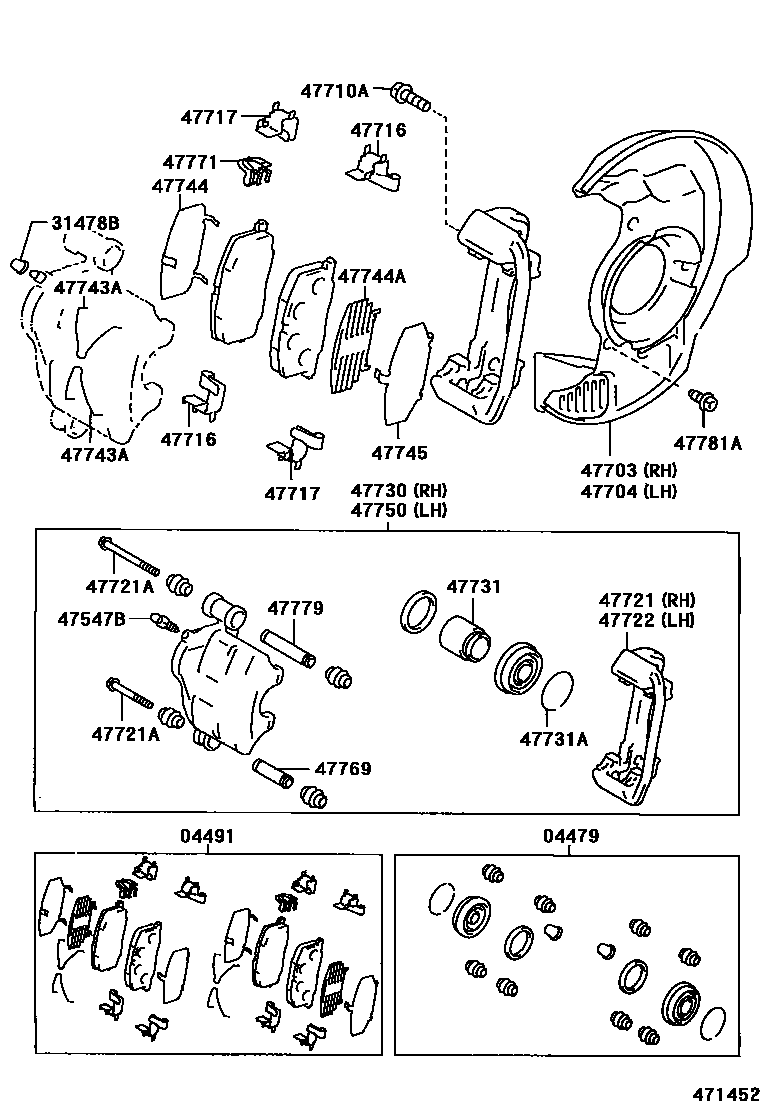

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20140iAT180198909-199108

main04479-20160iST18#198909-199108

04491PAD KIT, DISC BRAKE, FRONT

main04491-20610iAT180198909-199108

main04491-20660iST185198910-199309

main04491-20690iST184198909-199108

main04491-20850iAT180;ST184..CVT199109-199309

main04491-20860iST184..CP,LB199108-199309

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iAT180,ST18#198909-199309

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iAT180,ST18#198909-199309

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-20080iAT180..USA198909-199108

main47703-20090iST184198909-199108

main47703-20100iST185198910-199108

main47703-20120iAT180..CND198909-199108

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-20080iAT180..USA198909-199108

main47704-20090iST184198909-199108

main47704-20100iST18#..CP,LB199108-199309

main47704-20120iAT180..CND198909-199108

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131×4iAT180,ST18#198909-199309

*12-1.25PX25.5-23

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20140×4iAT180198909-199108

main47716-32041×4iST18#198909-199108

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20140×4iAT180198909-199108

main47717-32041×4iST18#198909-199108

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20260iAT180198909-199108

main47721-20280iST184198909-199108

main47721-20300iST185198910-199108

main47721-20330iAT180;ST184..CVT199109-199309

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09007×2iAT180198909-199108

*9-1.25PX73-25

main90119-09008×2iAT180198909-199108

*9-1.25PX93-25

main90119-10572×2iST18#198909-199108

*10-1.25PX95.5-30

main90119-10573×2iST18#198909-199108

*10-1.25PX65.5-30

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20260iAT180198909-199108

main47721-20280iST184198909-199108

main47721-20300iST185198910-199108

main47721-20330iAT180199108-199109

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20370iAT180198909-199108

main47730-20390iST184198909-199108

main47730-20410iST185198910-199108

main47730-20440iAT180199108-199109

47731PISTON, FRONT DISC BRAKE

main47731-20170×2iAT180198909-199108

main47731-20180×2iST18#198909-199108

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003×2iAT180198909-199108

main90522-67002×2iST18#198909-199108

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-20040×4iST185198910-199108

main47743-32020×4iAT180,ST184198909-199108

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050×2iAT180198909-199108

main47744-20110×2iST18#198909-199108

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-20050×2iAT180198909-199108

main47742-20070×2iAT180,ST18#199108-199309

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-20050×2iAT180198909-199108

main47745-20070×2iST18#198909-199108

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20370iAT180198909-199108

main47750-20390iST184198909-199108

main47750-20410iST185198910-199108

main47750-20440iAT180199108-199109

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-20010×2iAT180198909-199108

main47769-20050×2iST18#198909-199108

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-12050×2iAT180,ST18#198909-199309

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-20010×2iAT180198909-199108

main47779-20040×2iST18#198909-199108

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06192×8iAT180,ST18#198909-199309
