Toyota CELICA — ELECTRONIC FUEL INJECTION SYSTEM

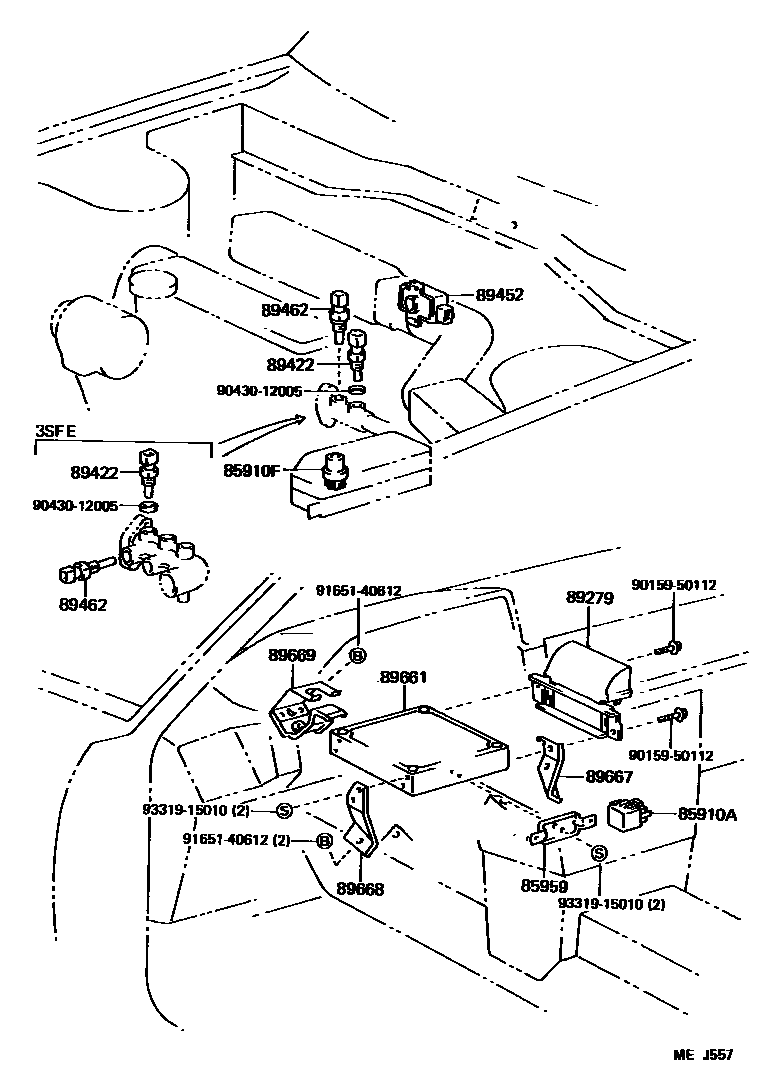

Parts diagram

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

85910FRELAY, COMPUTER (FOR EFI)

85959HOLDER, RELAY

89279COVER, ENGINE CONTROL COMPUTER

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

89462SWITCH, START INJECTOR TIME

89661COMPUTER, ENGINE CONTROL

89667BRACKET, ENGINE CONTROL COMPUTER

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

9015950112

9043012005

9165140612

9331915010

15 parts on this diagram · 3 diagrams in section

ELECTRONIC FUEL INJECTION SYSTEM for Toyota CELICA

This section contains 21 genuine Toyota parts for the ELECTRONIC FUEL INJECTION SYSTEM system of the Toyota CELICA. Key components include: RELAY ASSY, FUEL PUMP, RESISTOR, SOLENOID, RELAY ASSY, CIRCUIT OPENING (FOR EFI), RELAY, COMPUTER (FOR EFI), HOLDER, RELAY.
