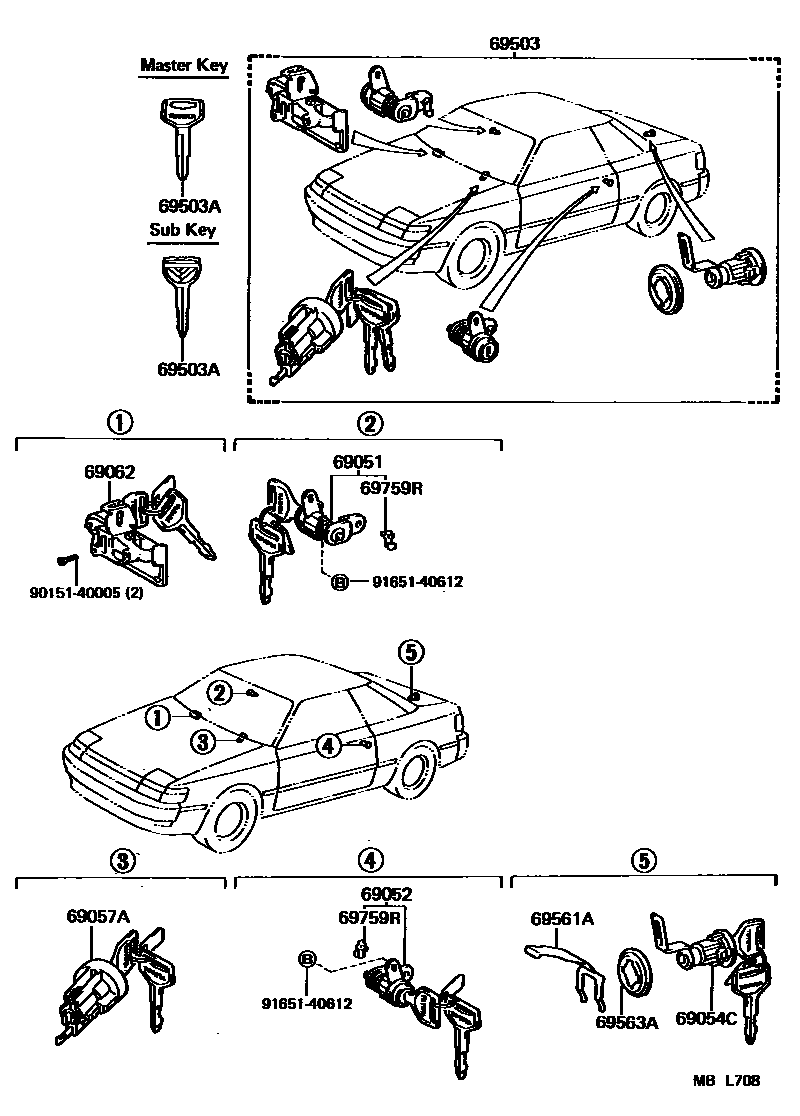

Toyota CELICA — LOCK CYLINDER SET
69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
9015140005
9165140612
13 parts on this diagram · 2 diagrams in section
LOCK CYLINDER SET for Toyota CELICA
This section contains 16 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota CELICA. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, BACK DOOR LOCK, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK.
