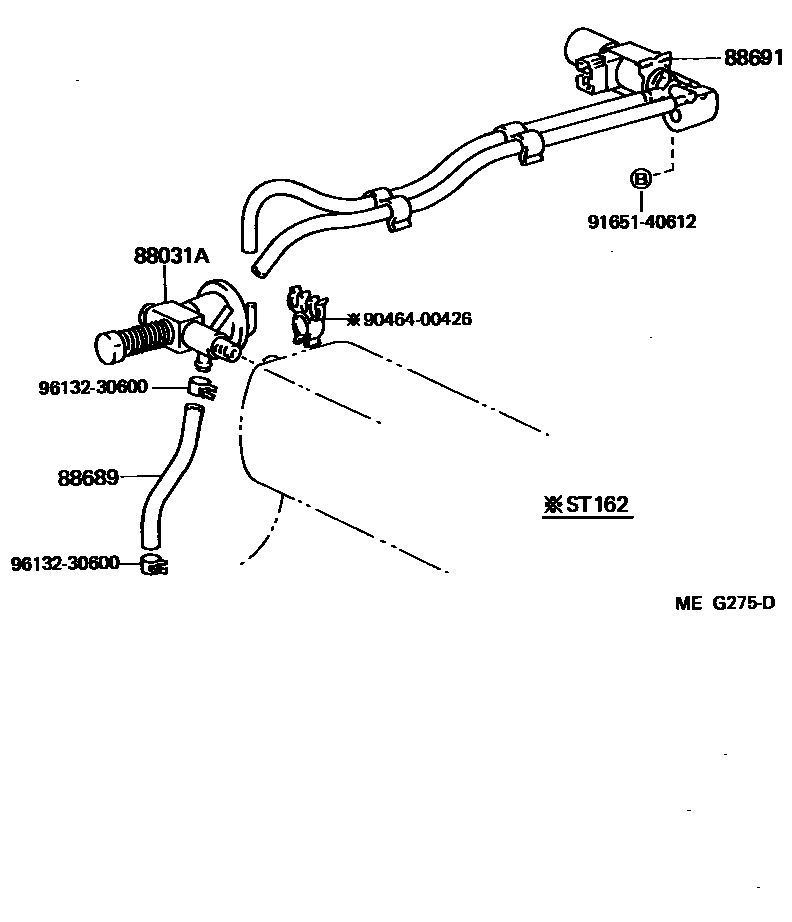

HEATING & AIR CONDITIONING - VACUUM PIPING

88031ADIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR

main88606-24020iST162..GTS198608-198708

main88606-32010iST162..GT,ST198608-198708

88689HOSE, DAMPER CONTROL DIAPHRAGM VACUUM

main88689-32030iST161198508-198608

main88689-32050iST162..GT,ST198608-198708

main88689-40030iST162..GTS198508-198708

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88690-20650iST161198508-198608

main88690-20670iST162..GTS198508-198708

9046400426

main90464-00426

9165140612

main91651-40612

9613230600

main96132-30600

6 parts on this diagram · 1 diagram in section
