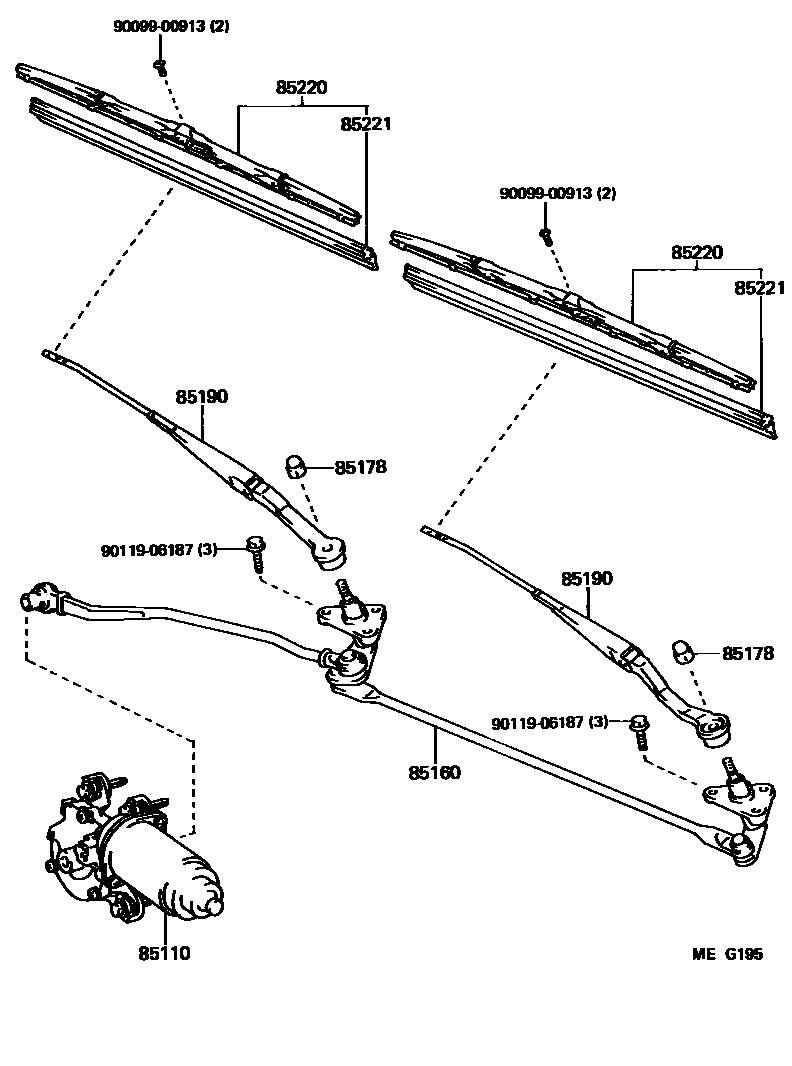

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20260iST16#198508-198608

main85110-20261iST162198608-198708

85160LINK ASSY, WINDSHIELD WIPER

main85160-20170iST16#198508-198608

main85160-20171iST162198608-198708

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08033×2iST16#198508-198708

85190ARM ASSY, WINDSHIELD WIPER

main85190-20430iST16#198508-198708

LH

main85210-20140iST16#198508-198708

RH

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16340iST16#198508-198708

RH

main85220-32280iST16#198508-198708

LH

85221BLADE, WINDSHIELD WIPER

main85221-30100iST16#198508-198708

RH

main85221-32060iST16#198508-198708

LH

9009900913

main90099-00913

9011906187

main90119-06187

8 parts on this diagram · 1 diagram in section
