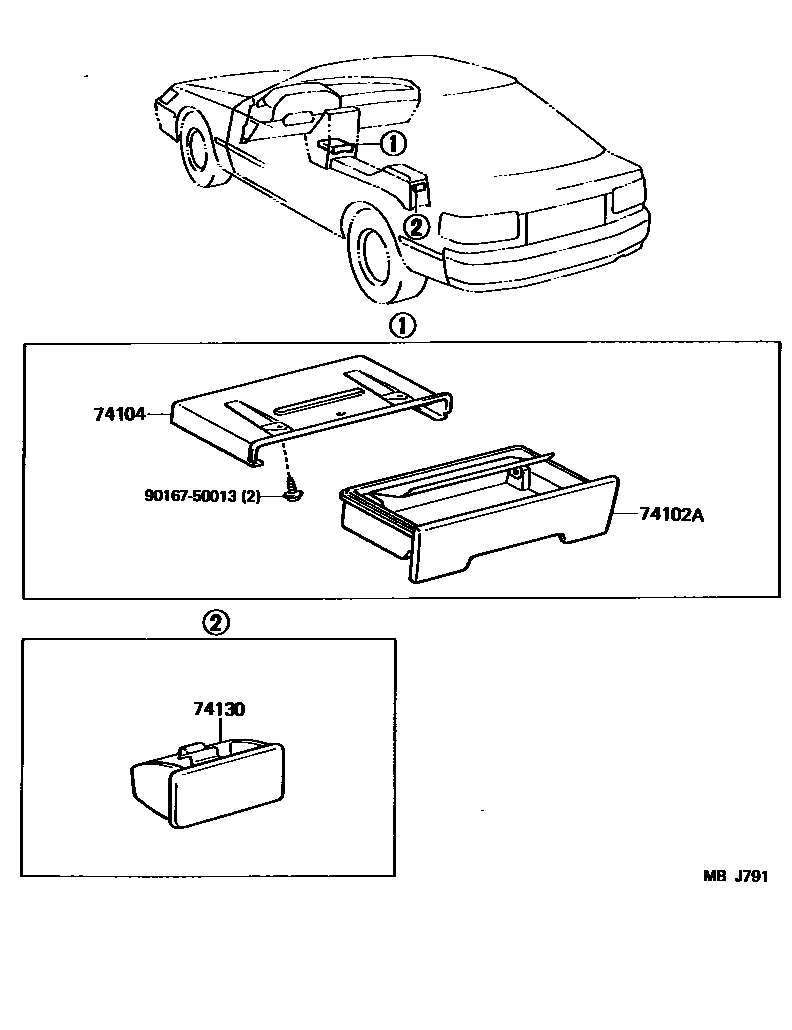

ASH RECEPTACLE
74102ARECEPTACLE ASSY, FRONT ASH
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74130RECEPTACLE ASSY, REAR ASH
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,DEEP BLUE,TRIM8#
BROWN,BROWN,TRIM4#
RED,RED,TRIM3#
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
9016750013
main90167-50013
4 parts on this diagram · 1 diagram in section
